Ultrasonic Sensor HC-SR04 with Mounting Bracket

Ultrasonic Sensor HC-SR04 with Mounting Bracket
Ultrasonic Sensor HC-SR04 with Mounting Bracket
Ultrasonic Sensor HC-SR04 with Mounting Bracket
Ultrasonic Sensor HC-SR04 with Mounting Bracket
Ultrasonic Sensor HC-SR04 with Mounting Bracket
Ultrasonic Sensor HC-SR04 with Mounting Bracket
Ultrasonic Sensor HC-SR04 with Mounting Bracket
Ultrasonic Sensor HC-SR04 with Mounting Bracket
Ultrasonic Sensor HC-SR04 with Mounting Bracket
Ultrasonic Sensor HC-SR04 with Mounting Bracket
Ultrasonic Sensor HC-SR04 with Mounting Bracket
₹99

(inc GST)

  • Stock: In Stock
  • SKU: FRC-01-487
7 Day Return
Get 7 Day Replacement/Refund on this product
Free shipping
Get free shipping on this product. Buy above ₹ 999 and get free shipping.
COD Available
Get this product with Cash at the time of Delivery
Support
Get best after-sale support From our Technical team with different Tutorials

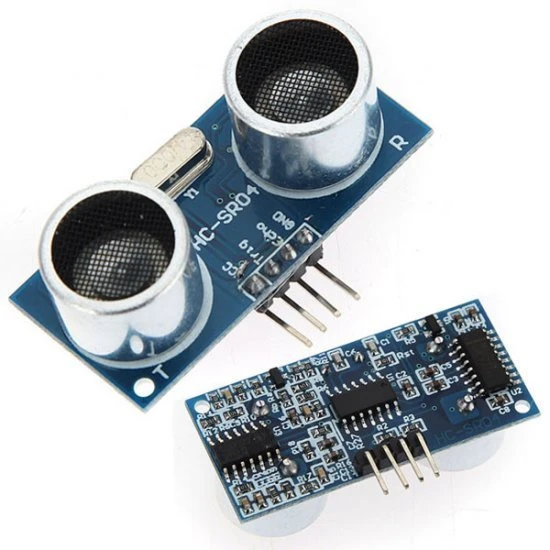

The performance of the ultrasonic sensor distance measuring module is stable and measures the distance accurately. The module is with High precision, blind spots (3cm) super close. This module provides a full set of ranging processes.

The module has two eyes like projects in the front which form the Ultrasonic transmitter and Receiver.  The HC-SR04 ultrasonic sensor uses sonar to determine the distance to an object like bats or dolphins do.

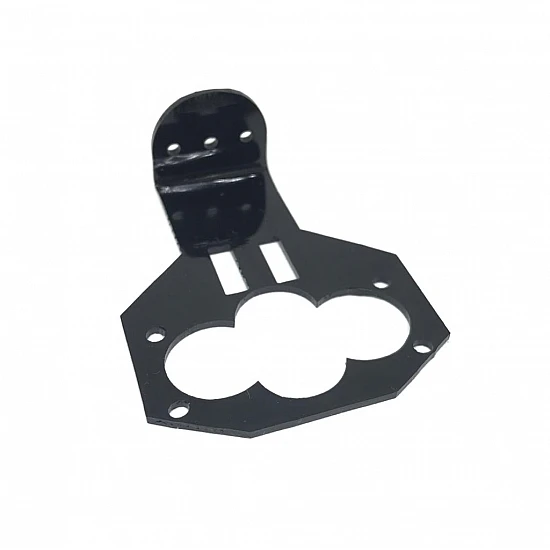

The mounting bracket is only compatible with the HC-SR04 ultrasonic ranging module, and not with other sensor modules.

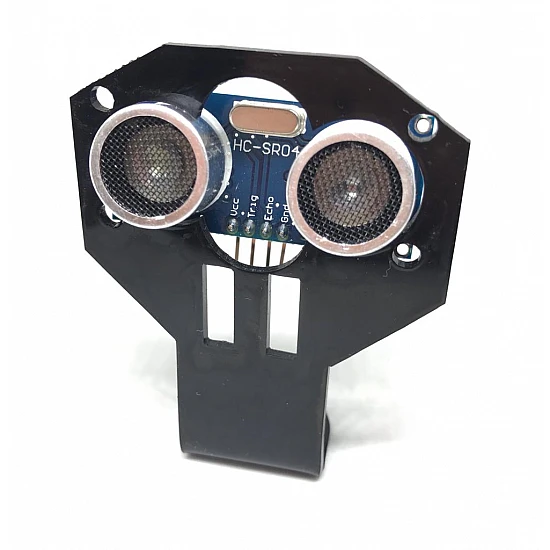

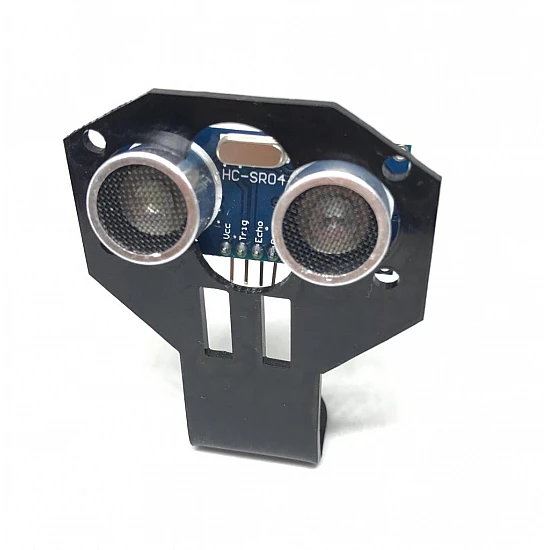

This contains an HC-SR04 Ultrasonic range finder and a mounting bracket for the fast and easy assembly of your project. The Ultrasonic Sensor Mounting Bracket used is made up of Acrylic.

Features:

  • Measures the distance within a wide range of 2cm to 450cm
  • Stable performance
  • Accurate distance measurement
  • High-density
  • Small blind distance
  • Good quality Acrylic Mounting Bracket.

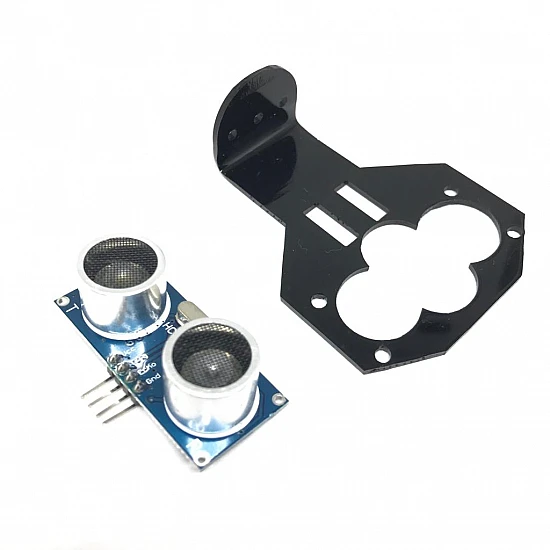

Package Includes:

1 x HC-SR04 Ultrasonic Module

1 x Ultrasonic Sensor Mounting Bracket

Write a review

Note: HTML is not translated!
Bad Good
Technical
Model

HC-SR04

Frequency

40 kHz

Inner diameter

1.6cm

Mounting Hole size

0.38 cm (Dia)

Operating Voltage

5V

PCB Size ( L x W )

4.5 x 2 cm

Range

2cm-450cm

Sensing Angle

Not more than 15 degrees

Static Current

Less than 2mA

Thickness

0.28 –0.31 cm

Material

Acrylic
