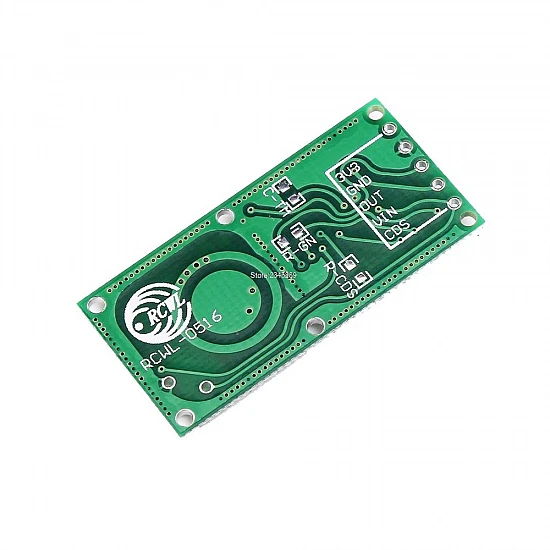

RCWL-0516 Microwave Radar Sensor is a mini doppler radar sensor module equipped with supporting DC 4-28V wide voltage. It is an alternative to the PIR sensor and uses in many security alarms system.

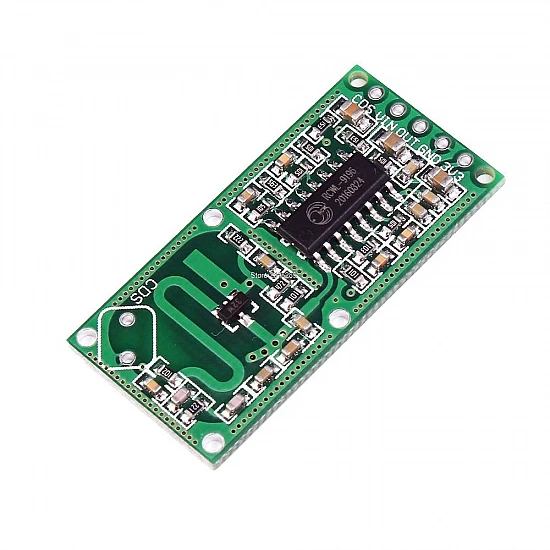

This is a mini radar motion sensor module is equipped with an RCWL-9196 chip based on the doppler microwave induction technology. It will automatically continuously output the high-level TTL signal when there is motion with adjustable delay time and sensitivity.
It is perfect for DIY microwave motion sensor light switch, human sensor toys, smart security devices, etc.
- Transmission signal processing control chip RCWL-9196
- Penetrating detection capability, compared with the traditional infrared feeling PIR
- Adjustable Block time and distance
- Wide operating voltage range 4.0V to 28.0V
- 3.3V output power supply
1 x RCWL-0516 Microwave Radar Sensor
|Detecting range||5-9 m|
|Operating current||3 mA (max)|
|Operating Temperature Range||-20 to 80 °C|
|Operating Voltage||4 ~ 28 V|
|Output Control High Level||3.3 V|
|Output Control Low Level||0 V|
|Output Voltage||3.2 ~ 3.4 V|
|Output Voltage Driving Capacity||100 mA|
|Transmitting Power||20mW (typical); 30mW (max)|
|Trigger Way||Repeat Trigger|
