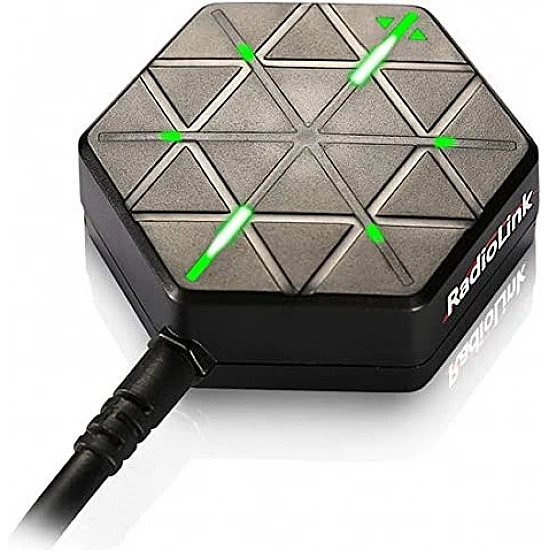

Radiolink M8N GPS SE100 Module High Positional Accuracy

Radiolink M8N GPS SE100 Module High Positional Accuracy
Radiolink M8N GPS SE100 Module High Positional Accuracy
Radiolink M8N GPS SE100 Module High Positional Accuracy
Radiolink M8N GPS SE100 Module High Positional Accuracy
Radiolink M8N GPS SE100 Module High Positional Accuracy
-6 % Out Of Stock
Radiolink M8N GPS SE100 Module High Positional Accuracy
Radiolink M8N GPS SE100 Module High Positional Accuracy
Radiolink M8N GPS SE100 Module High Positional Accuracy
Radiolink M8N GPS SE100 Module High Positional Accuracy
Radiolink M8N GPS SE100 Module High Positional Accuracy

Radiolink M8N GPS SE100 Module High Positional Accuracy
₹3,399
₹3,599

(inc GST)

  • Stock: Out Of Stock
  • With this product you will receive ₹33 FlyRobo Cashback.
  • SKU: FR-02-845

This is a Radiolink M8N GPS SE100 Module High Positional Accuracy Works with GLONASS/BeiDou for APM Pixhawk Flight Controller DIY FPV Drone, Quad and many other design.

Features:

  • Positioning Accuracy to 50 cm
  • Positioning 20 Satellites at Open Ground in 6 Seconds
  • Even at Valley Bottom, Super Station-keeping Capability

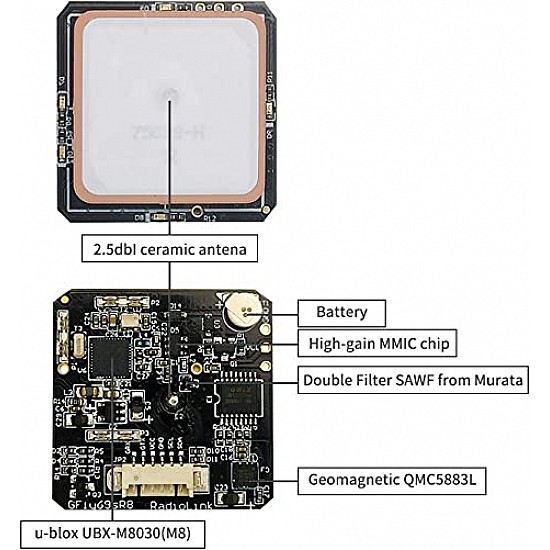

  • Excellent Performance: 2.5dbl ceramic antenna design have enhances the ability to get extremely weak signal even though interference by ideal filter.
  • Top Configuration: with u-blox UBX-M8030(M8), 72-channel, MMIC BGA715L7 from Infineon, that's better than single GNSS 7N.
  • Built-in electronic compass QMC5883L (I2C port) with high precision, which same technology as Honeywell HMC5983. Support multiple positioning systems GPS, GLONASS L10F, QZSS L1 C/A, BeiDou B1, dual mode operation.

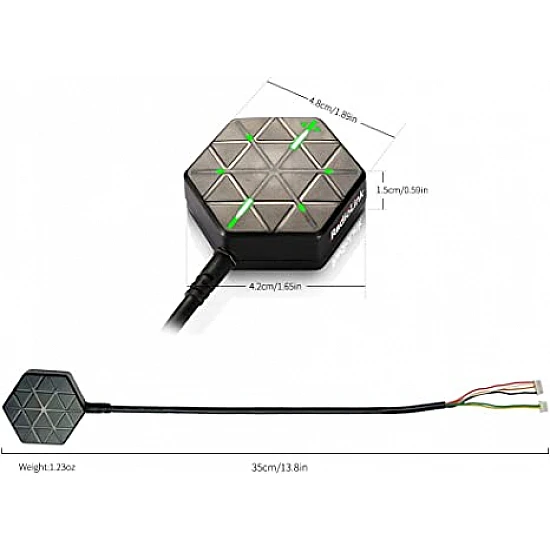

Compatible with Radiolink Pixhawk Flight Controller, 1.89*1.6*0.59in, suitable for DIY drone, quadcopter, multi-copter, rc vehicle's, etc.

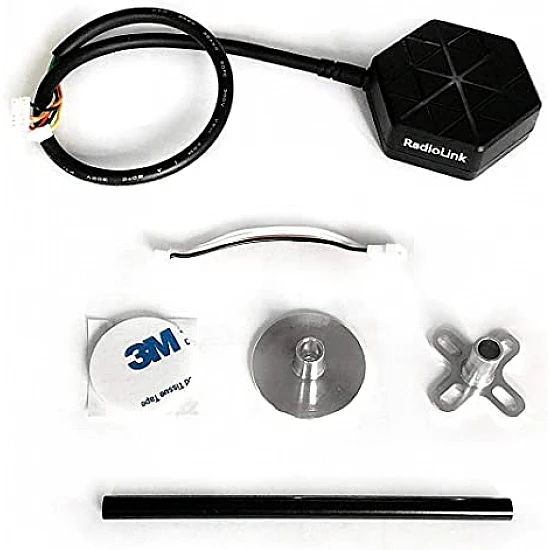

Package Include:

  • M8N SE100 GPS x 1
  • Metal rod bracket x 1
  • Connecting cable x 1
  • Metal fixing gasket x 2
  • Foam fixed sticker x 1

Technical
Acceleration range

<4 g

Accuracy

50 centimeters positioning , can be search 20 satellites

Navigation Update Rate

10Hz

Tracking Sensitivity

–167 dBm

Type

M8N
