AMS1117 3.3V Power Supply Module

AMS1117 3.3V Power Supply Module
AMS1117 3.3V Power Supply Module
AMS1117 3.3V Power Supply Module
AMS1117 3.3V Power Supply Module

AMS1117 3.3V Power Supply Module
₹34

(inc GST)

  • Stock: In Stock
  • SKU: FR-07-016

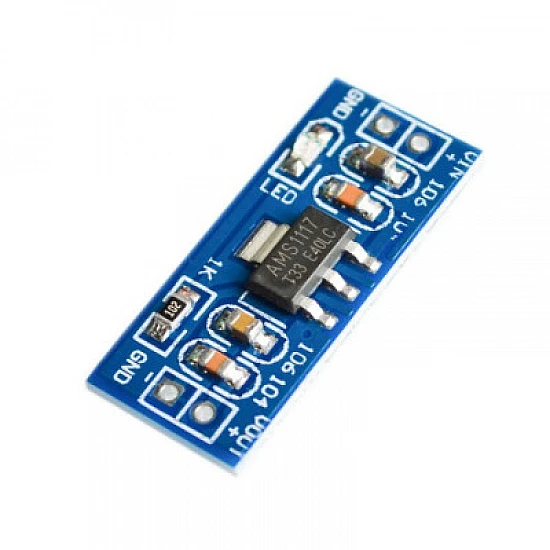

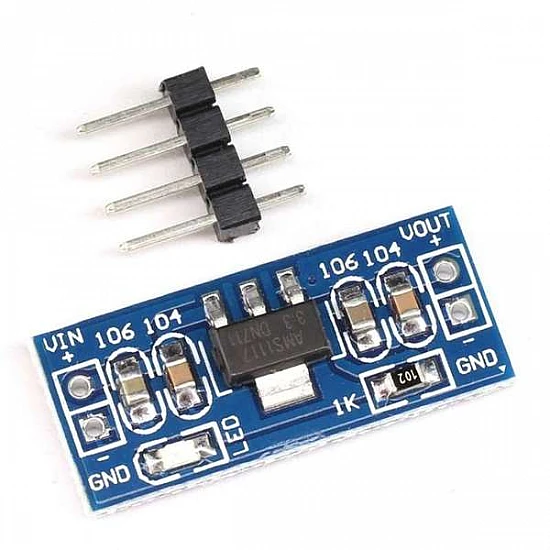

This power supply module is based on the AMS1117 3.3V regulator. It is capable of regulating a wide range of input voltage (4.0 to 12V) down to a fixed 3.3V output at up to 1A (Vin = 4.5V). Standard 0.1″ header pins provide a means of connecting to its input and output terminals.

These header pins have also been conveniently placed so that the module can be inserted face down into standard.

Features:

  • Onboard AMS1117 chip.
  • Onboard power indicator to indicate power is turned on: Red LED.
  • Output voltage interface, connection to facilitate the experimental.
  • Specially designed two pin mounting holes, can be directly fixed on the whole expansion board for experiments.
  • Small Compact Size, 4Pin Type, Breadboard Friendly.
  • 2P single row pins input and output for easy connection.
  • Dual-panel design, the layout is nice.

Package Includes:

1 x AMS1117 3.3V power supply module (Unsoldered).

Technical
IC Chip

AMS1117

Input Voltage

4.5 to 12V

Maximum Output Current

0.8A

Output Voltage

3.3V

Length

26mm

Height

2mm

Width

12mm
