MAX7219 Digital Tube Display Control Module

MAX7219 Digital Tube Display Control Module
MAX7219 Digital Tube Display Control Module
MAX7219 Digital Tube Display Control Module
MAX7219 Digital Tube Display Control Module
-45 %
MAX7219 Digital Tube Display Control Module
MAX7219 Digital Tube Display Control Module
MAX7219 Digital Tube Display Control Module
MAX7219 Digital Tube Display Control Module
MAX7219 Digital Tube Display Control Module
₹108
₹198

(inc GST)

  • Stock: In Stock
  • ₹1 FlyRobo Cashback.
  • SKU: FR-01-122
    7 or more ₹102
    30 or more ₹99

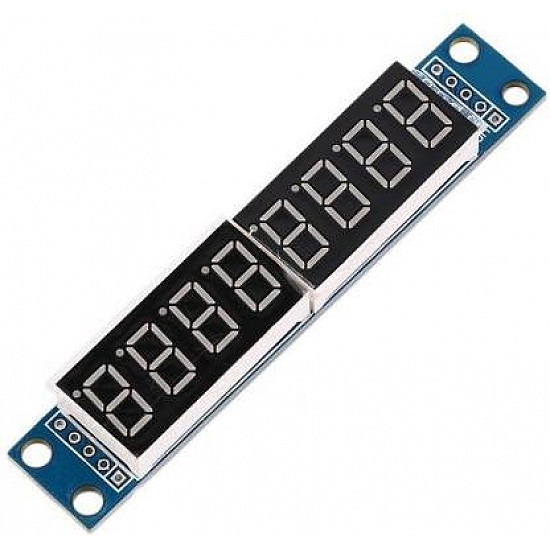

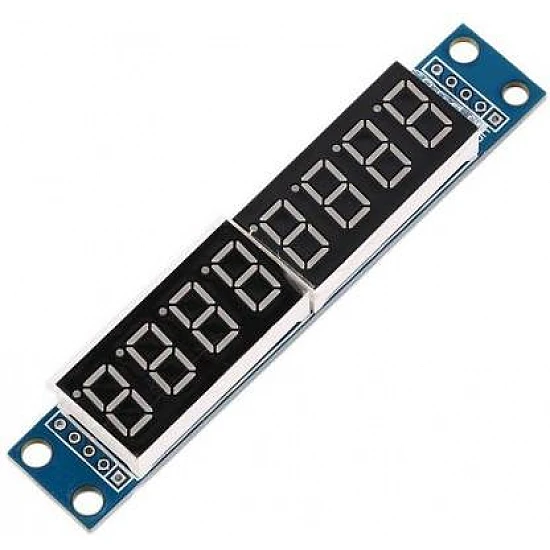

This 8 digits seven-segment display module is based upon the Maxim MAX7219 LED display driver. The module uses two standard 4 digit seven segment displays to display a total of 8 digits in RED with a decimal point. A convenient input and output header allows additional modules to be daisy-chained.

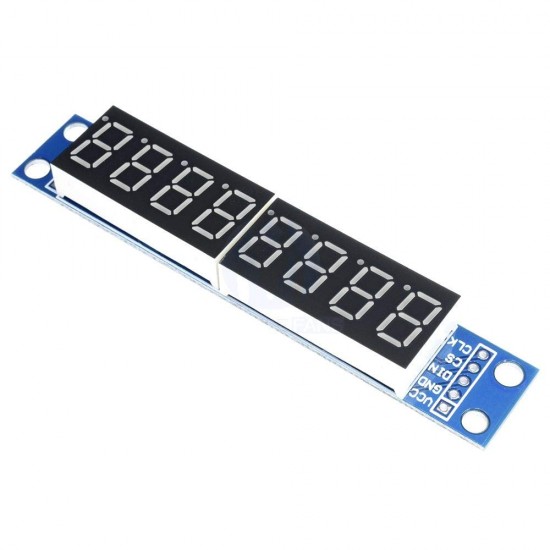

Wiring Instructions:

  • VCC: 5V
  • GND: GND
  • DIN: P00
  • CS: P01
  • CLK: P02

Features:

  • Driver: Maxim MAX7219
  • 0.36-inch Common cathode
  • This module is compatible with 5V and 3.3V microcontrollers.
  • It only needs three IO ports that can drive an 8-bit digital tube

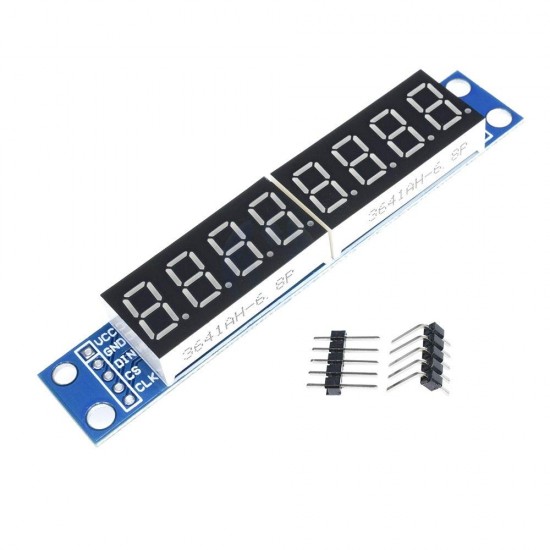

Package Includes:
1 x MAX7219 Digital Tube Display Module Control Module.

Technical
Operating Current

330mA

Operating Temperature Range

-40°C to 85°C

Voltage

4.5 to 5.5V

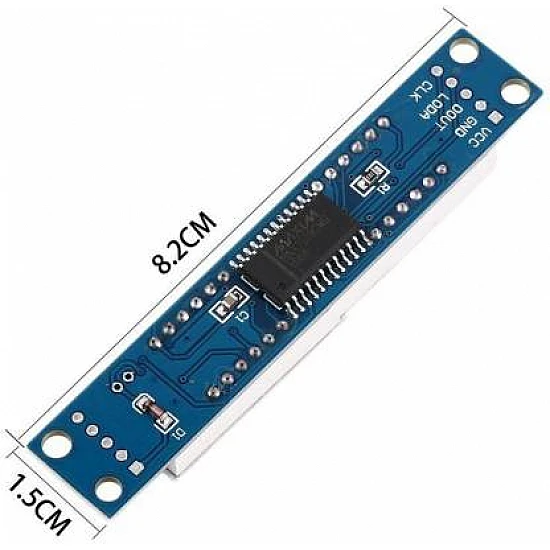

Length

82 mm

Height

17 mm

Width

15 mm
