TM1637 4 Bits Digital Tube LED Display Module With Clock Display for Arduino

TM1637 4 Bits Digital Tube LED Display Module With Clock Display for Arduino
TM1637 4 Bits Digital Tube LED Display Module With Clock Display for Arduino
-38 %
TM1637 4 Bits Digital Tube LED Display Module With Clock Display for Arduino
TM1637 4 Bits Digital Tube LED Display Module With Clock Display for Arduino

TM1637 4 Bits Digital Tube LED Display Module With Clock Display for Arduino
0
Based on 0 reviews. - Write a review
 / Ask a Question
₹78
₹125

(inc GST)

  • Stock: In Stock
  • SKU: FR-01-631
FlyRobo FlyRobo
Add to Cart
Buy Now
Add to Wish List
7 Day Return
Replacement/Refund on this product
Free shipping
Get free shipping above ₹ 999
COD Available
Pay Cash at the time of Delivery
Support
Get After-sale Technical Support

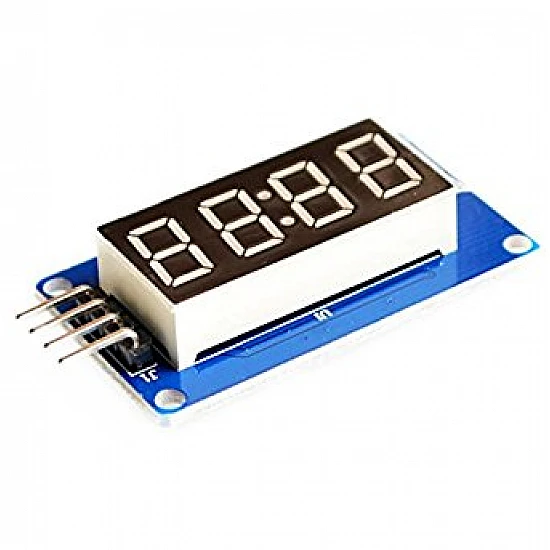

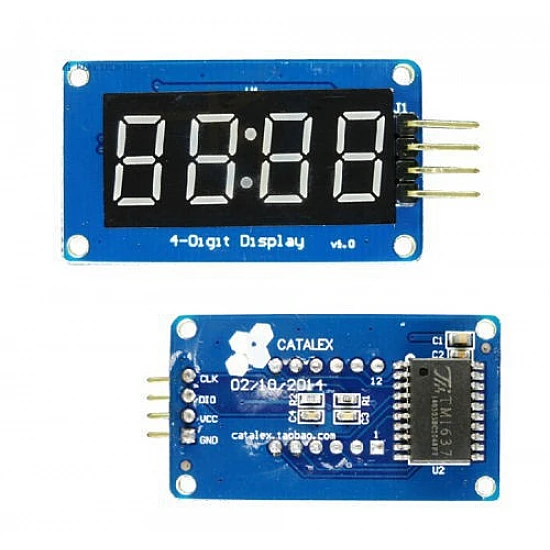

The TM1637 4 Bits Digital Tube LED Display Module is an affordable solution for displaying the output data of your Arduino project. This 7 segment LED Display has 4 digits which are controlled by TM1637 Driver Chip. It requires only two connections to control this TM1637 4 Bits Digital Tube LED Display Module.

The module is a 12-foot clock with four common anode tube (0.36 inch) display module for driver IC TM1637, only two signal lines can make the MCU control four 7-segment digital tubes. There are several modules using this TM1637 chip to form a 4 digit numerical display module. TM1637 has also keyboard input capability but is not used in this module.

Features :
  • Ease to use.
  • Ease of multiplexing.
  • It can use as a 4 digit display unit.
  • It can use as a clock display.
  • 4 M2 screws positioning holes for easy installation
  • Display common anode for the four red LED
  • Digital tube 8 gray adjustable
  • Level control interface for 5V or 3.3V
Applications
  • DIY clock project
  • 4 digit display unit
  • Electrical/Electronic projects
  • Counter project using 7 segment display

Package Includes :

1 x 4 Bits Digital Tube LED Display Module.

Technical
Driver IC

TM1637
Input Voltage

3.3 to 5.5 V
Operating current

30 mA (MAX)
Length

4.2 cm
Height

1.2 cm
Width

2.4 cm
