JQ6500 is a serial chip to provide MP3, the perfect integrated MP3, WMV hard decoding. At the same time software supports the TF card driver, supports the computer directly update SPI flash content, supports FAT16, FAT32 file system.
Through a simple serial command to complete the playback of the specified music, and how to play music and other functions, without cumbersome the underlying operation, easy to use, stable, and reliable is the biggest feature of this product. In addition, the chip is also deep customization of products, designed for fixed voice playback in the field of low-cost solutions.
It is widely used in Car navigation voice broadcast, Road transport inspection, toll station voice prompts; The train station, bus station security check voice prompts; Power, communications, financial business hall voice prompts; The vehicle into the channel verification voice prompts; Border check channel voice prompts; Multi-channel voice alarm or device operation to guide voice, etc.
- MP3 file format: supports all bit rates 11172-3 and ISO13813-3 layer3 audio decoding Sampling rate, Support(KHZ):8/11.025/12/16/22.05/24/32/44.1/4, Support Normal, Jazz, Classical, Pop, Rock, and other sound effects
- UART Interface: Standard serial port, TTL level, baud rate can be set
- Input voltage: Power supply is at 3.2V-5V, 4.2V Power supply is the best
- Rated current: 20ma
- Size: Standard DIP16 package
- Operating temperature: -40℃~70℃
- Humidity: 5% ~ 95%

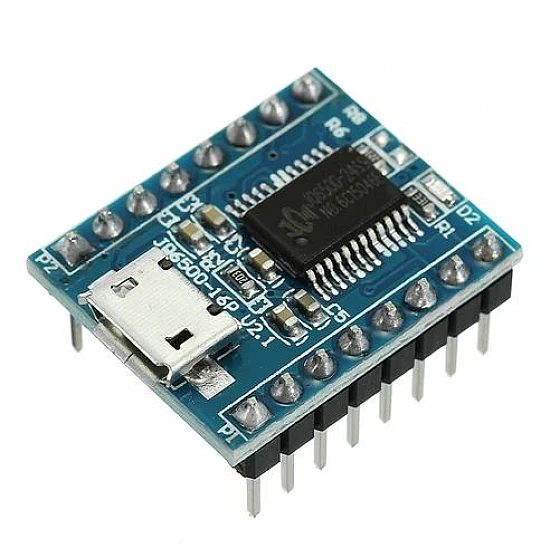

1 x JQ6500 Mini MP3 Voice Module.
