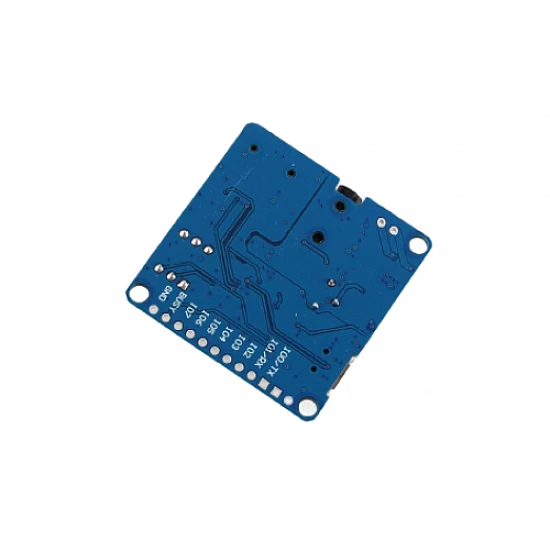

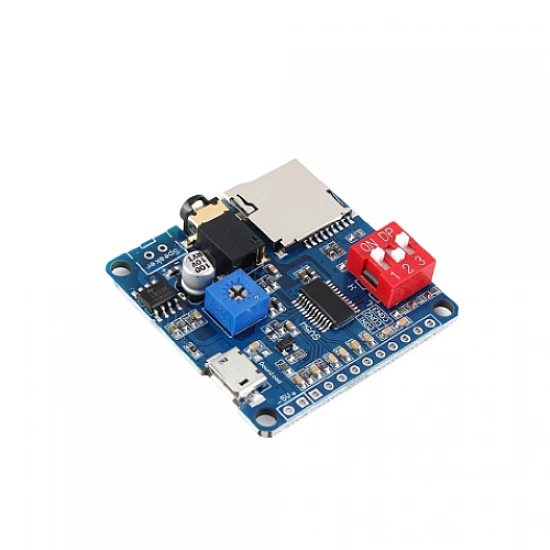

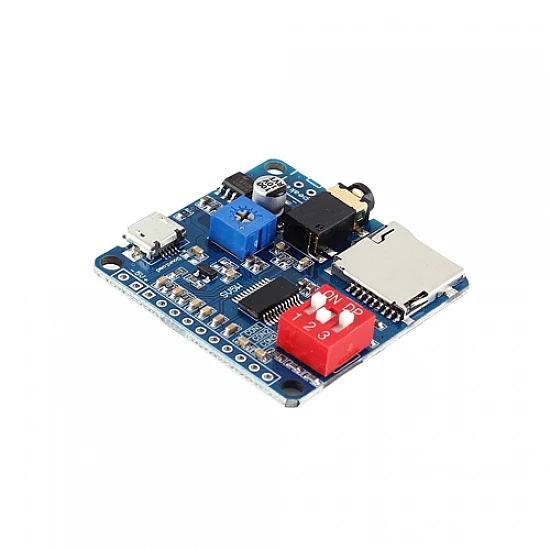

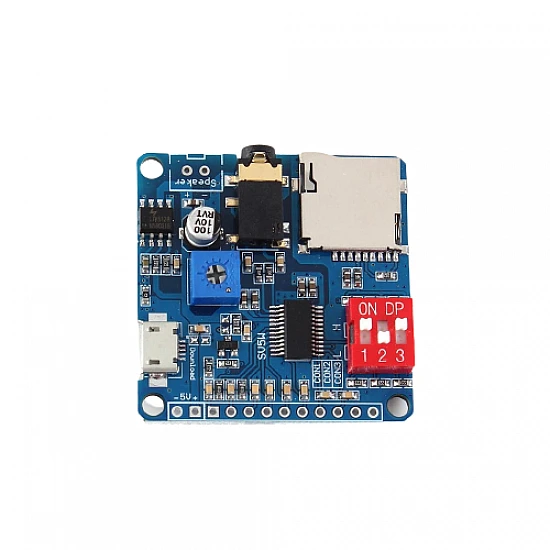

DY-SV 5W MP3 Player Audio Playback Module

DY-SV 5W MP3 Player Audio Playback Module
DY-SV 5W MP3 Player Audio Playback Module
DY-SV 5W MP3 Player Audio Playback Module
DY-SV 5W MP3 Player Audio Playback Module
DY-SV 5W MP3 Player Audio Playback Module
DY-SV 5W MP3 Player Audio Playback Module
DY-SV 5W MP3 Player Audio Playback Module
DY-SV 5W MP3 Player Audio Playback Module
DY-SV 5W MP3 Player Audio Playback Module
₹649

(inc GST)

  • Stock: In Stock
  • ₹6 FlyRobo Cashback.
  • SKU: FR-01-070
    5 or more ₹588
    15 or more ₹555

DY-SV 5W MP3 Player Audio Playback Module can be used to play sound/music. Just upload the sounds that are to play on an SD Card, connect a suitable speaker to this module and you can start playing music/sound/voice files.

All required operations can be performed over UART - select the file, start/stop playback, increase/decrease volume, etc.

Features:

  • Model: DY-SV5W
  • Dynamic range support of 90 dB, SNR support of 85 dB, 24-bit DAC output.
  • Support MP3 and WAV decoding formats. Support Maximum 32Gbit(4MByte) TF card.

  • Supporting the I/O trigger feature, 8-bit I/O ports can trigger up to 255 songs by combining 8 I/Os to trigger 8 different songs.
  • Insert an SD card with the required audio files, and use a microcontroller to control playback through UART.

Package Includes:

1 x DY-SV 5W MP3 Player Audio Playback Module

Technical
Humidity range

0% - 95%RH

Operating Temperature Range

-20°C to 85°c

Working Voltage

DC 5V

Dimensions (LxWxH)

40x40x9 mm
