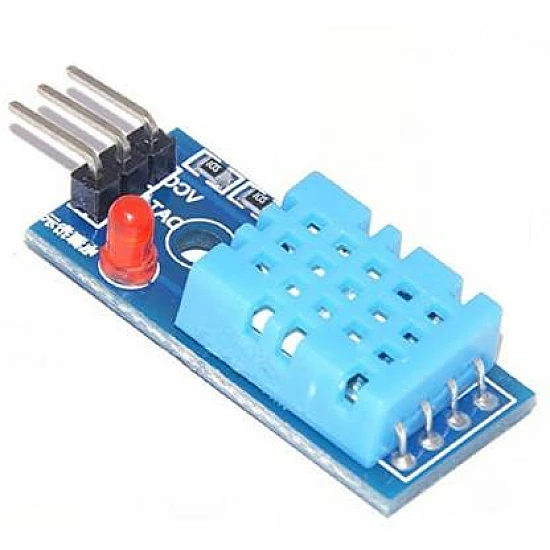

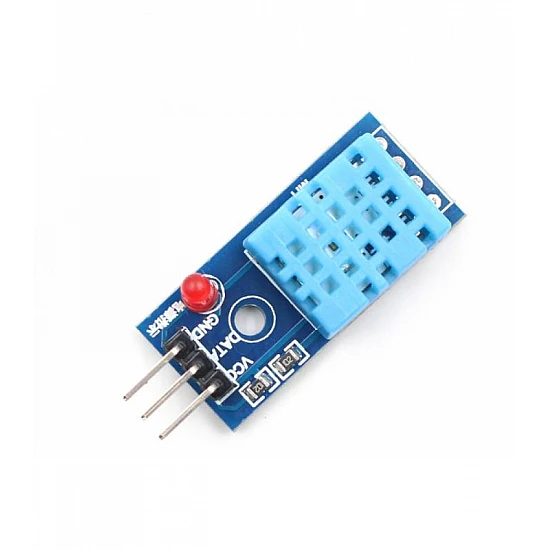

DHT11 Temperature And Humidity Sensor Module with LED

DHT11 Temperature And Humidity Sensor Module with LED
DHT11 Temperature And Humidity Sensor Module with LED
DHT11 Temperature And Humidity Sensor Module with LED
DHT11 Temperature And Humidity Sensor Module with LED
DHT11 Temperature And Humidity Sensor Module with LED
₹109

(inc GST)

  • Stock: In Stock
  • With this product you will receive ₹1 FlyRobo Cashback.
  • SKU: FR-01-829
The DHT11 Temperature And Humidity Sensor Module with LED is a small humidity and temperature sensor that you can connect to your Arduino and get readings for temperature and humidity in the environment. DHT11 can be interface with any microcontroller like Arduino, Raspberry Pi, etc., and get instantaneous results. DHT11 is a low-cost humidity and temperature sensor which provides high reliability and long term stability.
 Features:
  • DHT11 sensor with PCB and LED indicator along with cable; 3 to 5V power and I/O, 4 pins with 0.1″ spacing
  • Good for 20-80% humidity readings with 5% accuracy
  • 2.5mA max current use during conversion (while requesting data)
  • Good for 0-50°C temperature readings ±2°C accuracy.
  • The board has a pre-built 4.7K or 10K resistor, which you will need to use as a pull-up from the data pin to VCC.

Package Includes:

1 x DHT11 Temperature And Humidity Sensor Module.

Write a review

Note: HTML is not translated!
Bad Good
Technical
ModelDHT11
Humidity measurement error±5%RH
Humidity measurement range20% ~ 95%RH
Resolution16 Bit
Supply Voltage3.3 ~ 5 V
Temperature measurement error±2°C
Temperature range0 ~ 50 °C
Length3.1 cm
Height0.75 cm
Width1.4 cm
