5V 4 Channel SSR Relay Module (Solid State Relay Module) with Fuse
₹434
₹499

(inc GST)

  • Stock: In Stock
  • ₹4 FlyRobo Cashback.
  • SKU: FR-01-510
    7 or more ₹422
    30 or more ₹415

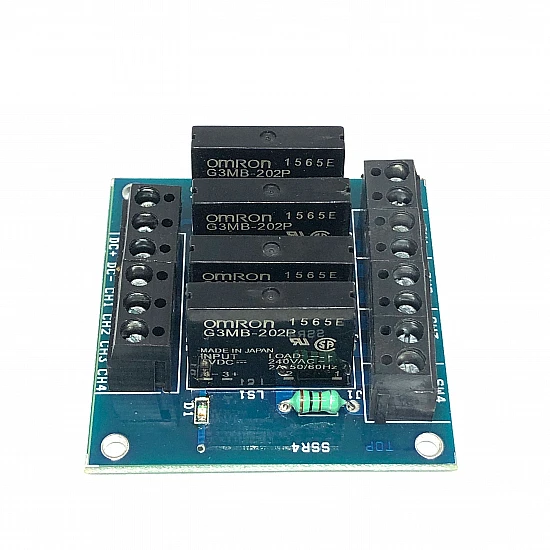

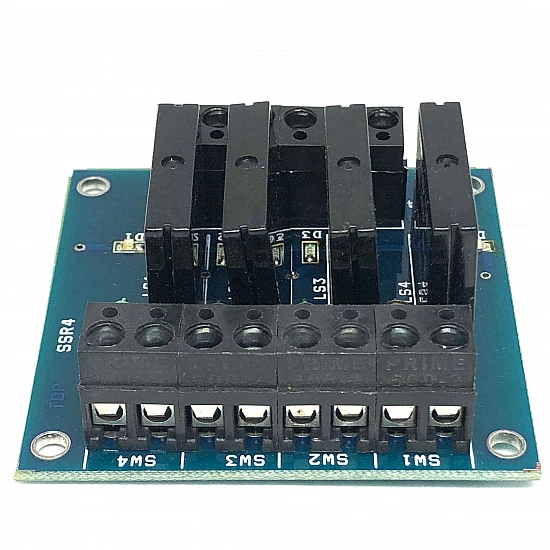

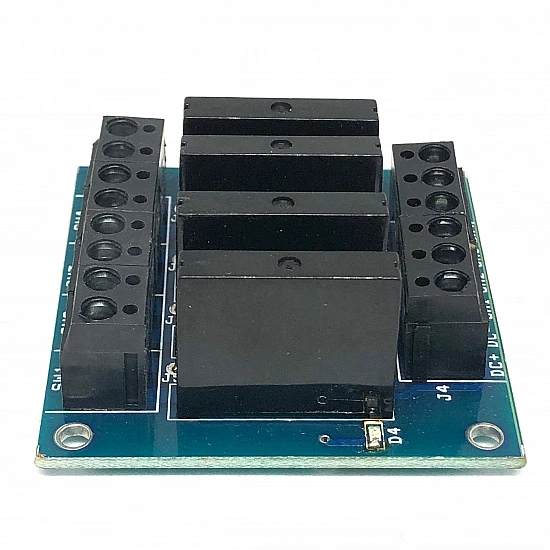

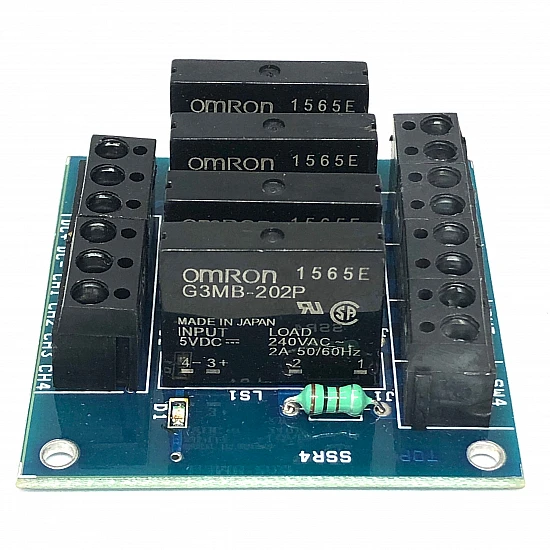

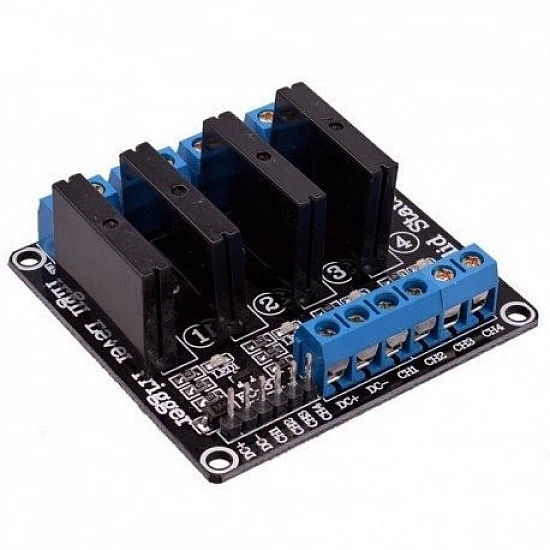

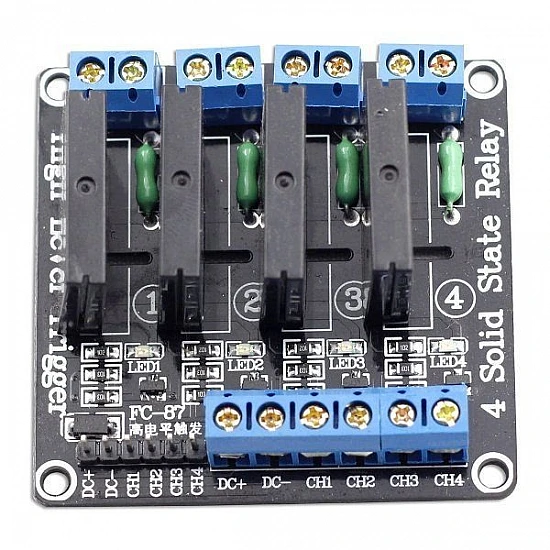

This 5V 4 Channel SSR –  Solid State Relay Module 240V 2A Output. SSR relay which can control up to 2A at 240VAC. This is a 4 Channel SSR relay module which has 3 separate terminals, NO (Normal Open), COM (Common), NC (Normal Closed).

Features:

  • Compact size

  • Totally silent operation

  • Led indicator for each relay

  • Fast switching speed

  • Longer lifespan

  • Inbuilt resistive fuse to protect from the excessive current drain

  • Can be controlled directly by Arduino or other microcontrollers

  • Can switch AC from 100V to 240V at 2A (max.)

Specification:

  • Input rating
    • Supply voltage: 5V
    • Input switch voltage: 0V to 2.4V
    • Input release voltage: 3.5V to 5V

  • Output rating
    • Rated load voltage: 100V to 240V
    • Load current: 0.10A to 2A
    • Surge current: 30A (60 Hz, 1 cycle)

  • Operating temperature range: -30℃ to 80℃

  • Storage temperature: -30℃  to 100℃

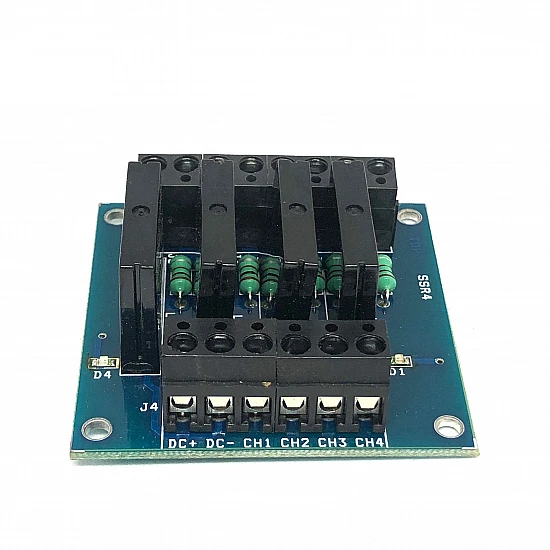

Input section:

  • DC+: Connect the positive pole of the power supply (powered by the relay voltage)

  • DC-: Connected to the negative pole of the power supply

  • CH: Relay module signal trigger terminal (low-level trigger is valid)

Note:

  • The power supply must be DC, and the voltage should match the voltage of the relay.

  • Please be careful when working with a high voltage AC load, please do not operate with power on.

  • This relay only works with AC load, if you use DC load, once the relay is turned on, it will always stay on.

  • Due to the leakage current, we do not recommend you use this relay with low power appliances.

Package includes:

1 x 5V 4 Channel SSR Relay Module

Technical
Max. Load

2A @240V AC

No. of Channels

4

Operating Temperature Range

-30℃ to 100℃

Switching Voltage(AC)

240V@2A

Trigger Current

2 mA

Trigger Voltage

5V (DC)

Working Current

12.5 mA

Length

5.7 cm

Height

2.5 cm

Width

5.5 cm
