150W DC-DC 10-32V to 12-35V 6A Step-Up Boost Converter Adjustable Module

150W DC-DC 10-32V to 12-35V 6A Step-Up Boost Converter Adjustable Module
150W DC-DC 10-32V to 12-35V 6A Step-Up Boost Converter Adjustable Module
150W DC-DC 10-32V to 12-35V 6A Step-Up Boost Converter Adjustable Module
-8 %
150W DC-DC 10-32V to 12-35V 6A Step-Up Boost Converter Adjustable Module
150W DC-DC 10-32V to 12-35V 6A Step-Up Boost Converter Adjustable Module
150W DC-DC 10-32V to 12-35V 6A Step-Up Boost Converter Adjustable Module

150W DC-DC 10-32V to 12-35V 6A Step-Up Boost Converter Adjustable Module
₹184
₹199

(inc GST)

  • Stock: In Stock
  • SKU: FR-01-951

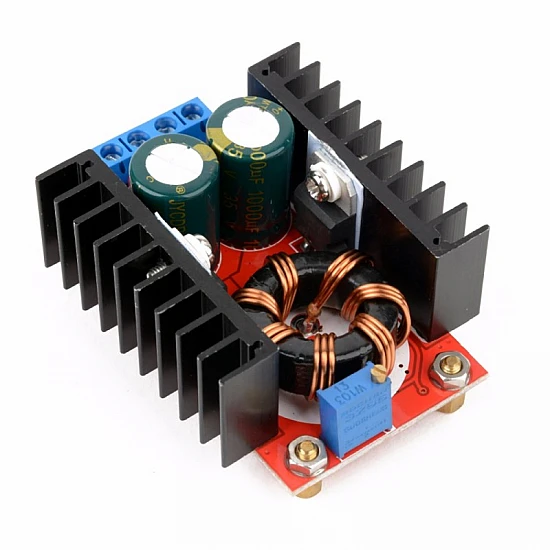

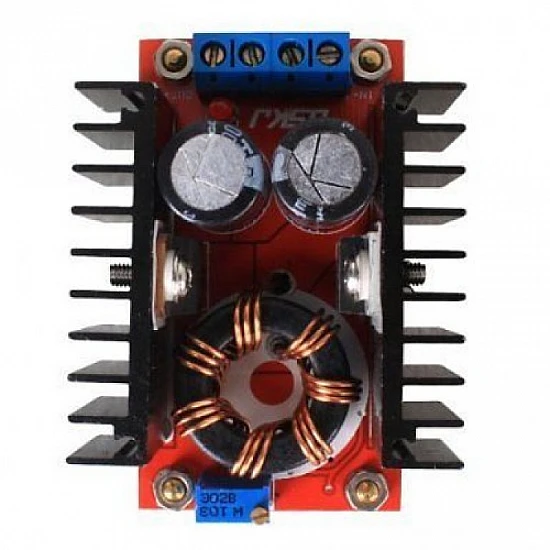

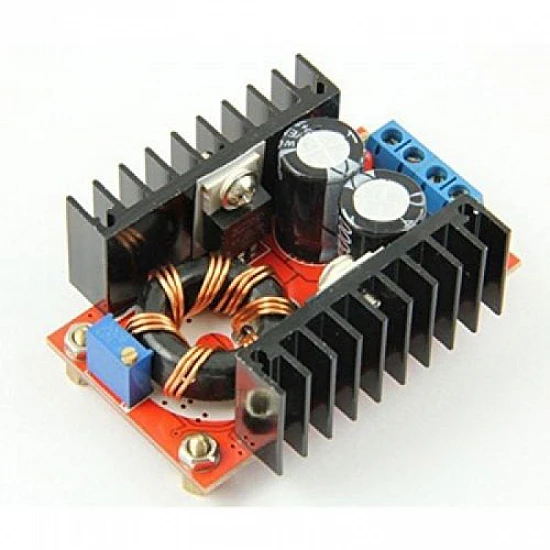

DC-DC boost power supply/converter module 10-32V To 12-35V 150W 6A is a very suitable voltage booster/regulator for projects that require high power. The board can boost 10V-32V input voltage to regulated 12V-35V adjustable output voltage.

This 150W DC-DC Boost Converter 10-32V to 12-35V 6A Step-Up Adjustable Power Supply is well into the heavy-duty end of the spectrum @ 150W.

It is especially useful for automotive 12V applications, where standard 12V battery power can be boosted to 19V for use as a laptop computer power supply, or to 18V or 24V for other applications requiring higher voltages.

Features :

  • Easy to drive 65W 90W dual-core notebook.
  • The non-isolated step-up power conversion module
  • Equips Multi-turn Potentiometer.
  • Onboard LED illuminates when the voltage is applied to the module
  • The output voltage is continuously adjustable on OUT+ and OUT- screw terminals (Output voltage must be greater than input voltage)
  • Short circuit protection: Nil (Please Install fuses and protection circuits at Input port)
  • Input Reverse Polarity Protection: Nil (Please use Series diode at the input port)

Package Includes:

1 x 150W DC-DC 10-32V to 12-35V 6A Step-Up Boost Converter Adjustable Module

Technical
Efficiency

94 %

Input Current

10 A

Input Voltage

10 to 32 V

No-Load Current

25 mA

Operating Temperature Range

-40 to 90 °C

Output Current

6 A (MAX)

Output Power

100 Watt

Output Voltage

12 to 35 V

Length

6.5 cm

Height

2.3 cm

Width

4.7 cm
