0.28inch 0-100V Three Wire DC Mini LED Display Voltmeter - Green

0.28inch 0-100V Three Wire DC Mini LED Display Voltmeter - Green
0.28inch 0-100V Three Wire DC Mini LED Display Voltmeter - Green
0.28inch 0-100V Three Wire DC Mini LED Display Voltmeter - Green
0.28inch 0-100V Three Wire DC Mini LED Display Voltmeter - Green
0.28inch 0-100V Three Wire DC Mini LED Display Voltmeter - Green
0.28inch 0-100V Three Wire DC Mini LED Display Voltmeter - Green
0.28inch 0-100V Three Wire DC Mini LED Display Voltmeter - Green
0.28inch 0-100V Three Wire DC Mini LED Display Voltmeter - Green

0.28inch 0-100V Three Wire DC Mini LED Display Voltmeter - Green
₹149

(inc GST)

  • Stock: In Stock
  • With this product you will receive ₹1 FlyRobo Cashback.
  • SKU: FR-01-610

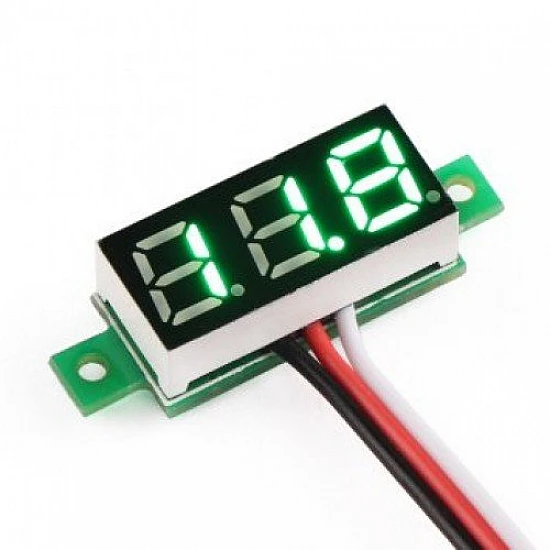

0.28inch 0-100V Three Wire LED Display Digital DC Voltmeter is a tiny and compact digital voltmeter with a GREEN LED Display.

This voltmeter can be used to measure the storage battery’s voltage up to 100Volts in motorcycles and cars and also can grasp the storage battery’s status.

This voltmeter can be used to measure the storage battery’s voltage in motorcycles and cars and also can grasp the storage battery’s status. It also can be used to measure other voltage. 100V is the voltmeter’s maximum operating limited voltage, please leave enough margin when working, to avoid the voltmeter’s permanent damage because of an electrical spark, power supply ripple, or other too high abrupt change of voltage.

It is a very bright and decent LED Display that is ready to measure the dc voltages in the range of 0V to 100V.

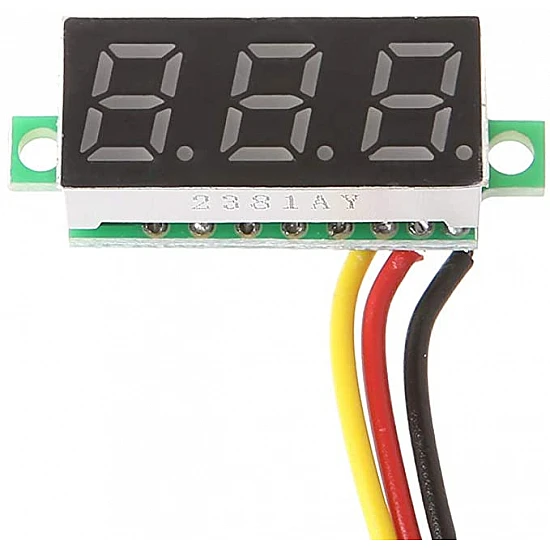

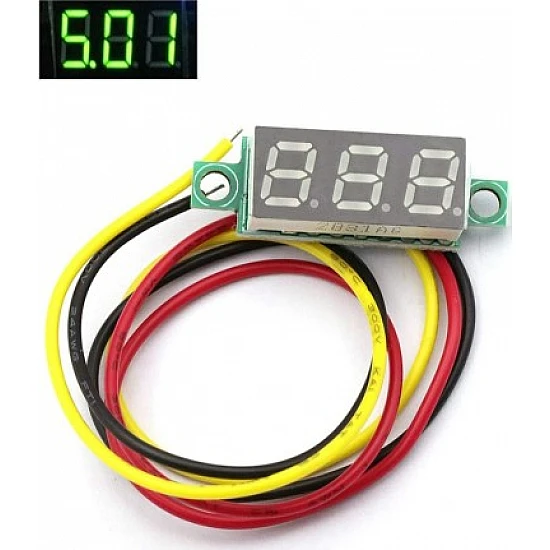

Connections:

  • Red Wire: Positive of the Power supply
  • Black Wire: Negative of the Power supply and also used as the negative of the measurement voltage source
  • Yellow/White/Blue: Positive of the measurement voltage source.

Features:

  • Very small and lightweight voltmeter module.
  • Very handy and easy to use.
  • Green LED display.
  • Best operates in the working voltage range of 5V to 24V
  • 100% Brand new and high quality.

Package Includes:

1 x 0.28inch 0-100V Three Wire DC Voltmeter-Green

Technical
Current consumption

10mA

Display LED Color

Green

Holes for Mounting

3mm

Operating Temperature Range

-10 to 60°C

Operating Voltage

3 - 30 VDC

Wires

3

Length

34mm

Height

9mm

Width

11mm
