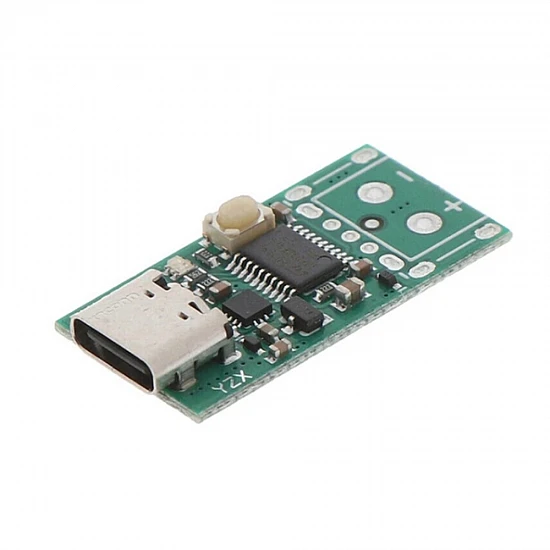

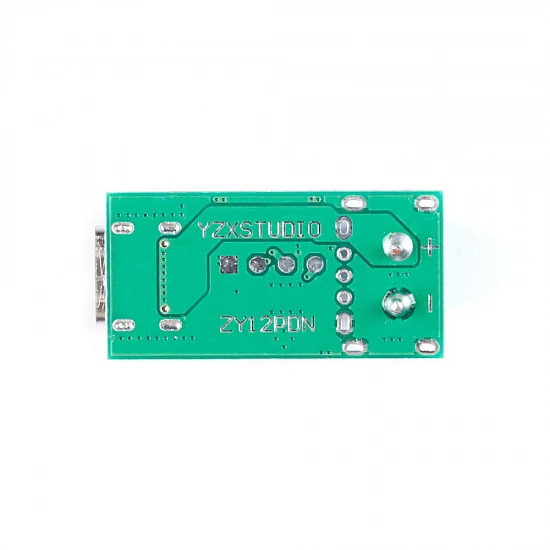

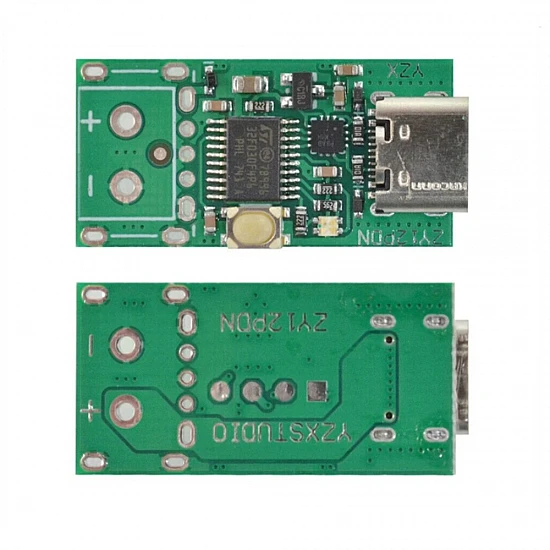

ZY12PDN USB-C PD2.0 3.0 to DC Trigger Fast Charge Module - Bare Board

The ZY12PDN USB-C PD Trigger Module (Bare Board) is a compact and highly efficient decoy board designed to extract specific DC voltages from USB Power Delivery (PD) chargers and power banks. By simulating a PD-compatible device, this module communicates with your Type-C power source to output your desired voltage. This bare-board version is ideal for engineers and makers looking for a low-profile solution that can be directly soldered into custom DIY electronics or embedded inside device enclosures.

Equipped with an onboard tactile button, users can seamlessly poll and select the required voltage output (typically 5V, 9V, 12V, 15V, or 20V based on the source's capabilities). The module features large, easy-to-solder pads for permanent and secure bare-wire connections to your circuit diagram. It is widely used for upgrading legacy devices to USB-C, powering standard laptops, and integrating fast-charge capabilities into space-constrained IoT projects.

Features:

• Protocol Compatibility: Fully supports USB Power Delivery (PD) 2.0 and 3.0 standards for versatile fast-charging access.
• Voltage Polling: Built-in tactile button allows for easy cycling and selection of negotiated output voltages up to 20V.
• Direct Solder Interface: Bare board design features clearly marked positive and negative solder pads for low-profile, permanent wiring.
• High Power Delivery: Capable of passing high currents required for laptop charging and high-draw DC components (source dependent).
• Ultra-Compact Form Factor: The minimal PCB design without a terminal block allows for seamless integration into tight enclosures or custom device shells.

Package Includes:

1 x ZY12PDN USB-C PD 2.0/3.0 to DC Trigger Module (Bare Board)
