USB 3.1 Type-C 24pin Male Adapter Board

Build custom cables, repair broken chargers, or create bespoke power connections with this USB Type-C Male DIY Solder Connector. Designed for straightforward assembly, this board features a standard Type-C plug mounted on a robust PCB, breaking out the essential connections to large, easy-to-solder pads.

While full Type-C connectors natively have up to 24 pins, this module breaks out 6 distinct pins for streamlined wiring. This makes the board highly versatile for modern USB-C power delivery triggering, custom robotics power harnesses, microcontroller projects, and custom wire assemblies.

Product Highlights

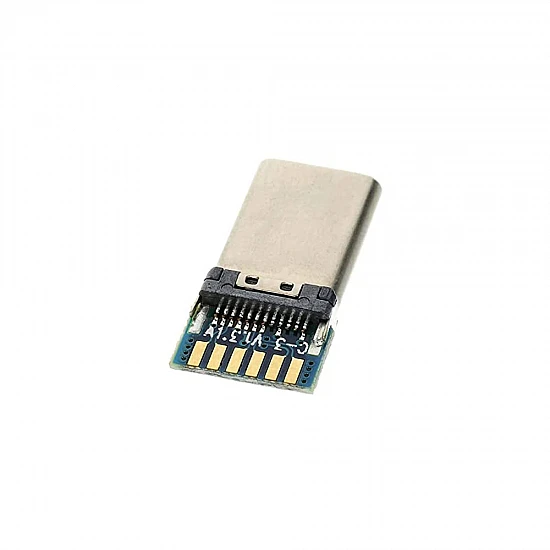

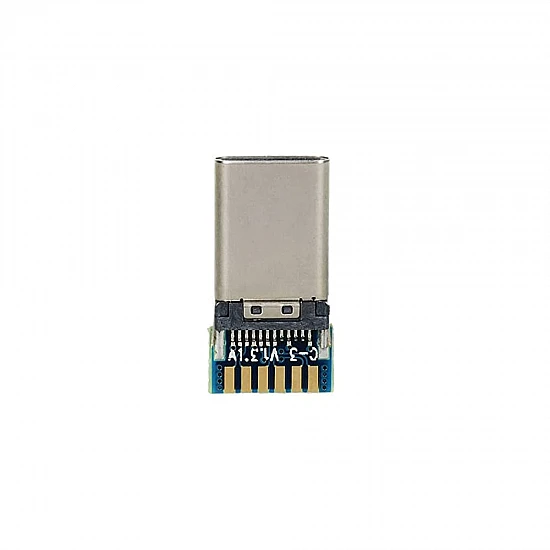

• Simplified Soldering: Features 6 distinct gold solder pads along the bottom edge for reliable cable termination and custom pinouts.

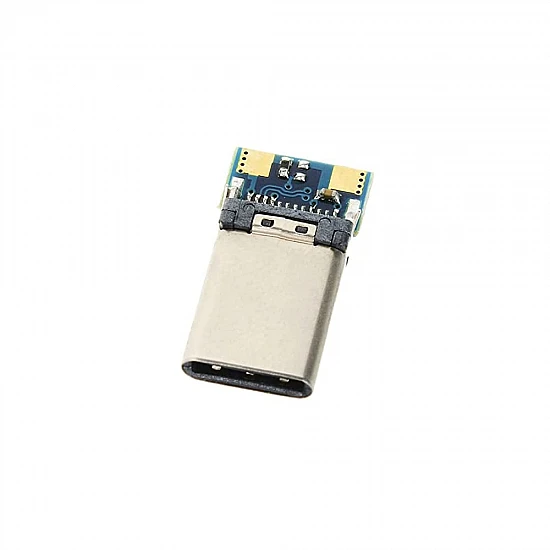

• Smart Design: The integrated PCB includes surface-mount components on the top side to assist with proper device handshaking and structural integrity.
• Versatile Use: Ideal for making custom-length data cables, repairing damaged electronics, or upgrading legacy hardware to USB-C.
• Sturdy Build: A durable metal shield over the connector ensures a secure, high-cycle physical connection.

Technical Specifications

• Connector Type: USB Type-C Male
• Supported Protocol: USB 2.0 (Data & Power) with CC/configuration access
• Connection Interface: 6-Pad Solder SMT
• Form Factor: Compact PCB footprint suitable for custom enclosures or finishing with heat shrink tubing.

Package Includes

• 1 x USB Type-C Male DIY Solder Connector with PCB (6-Pin)
