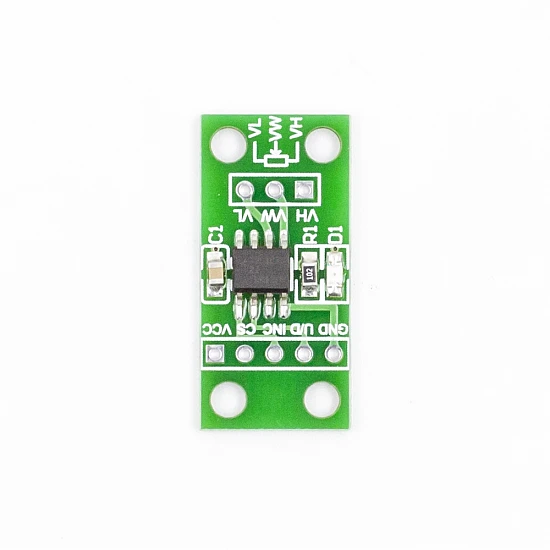

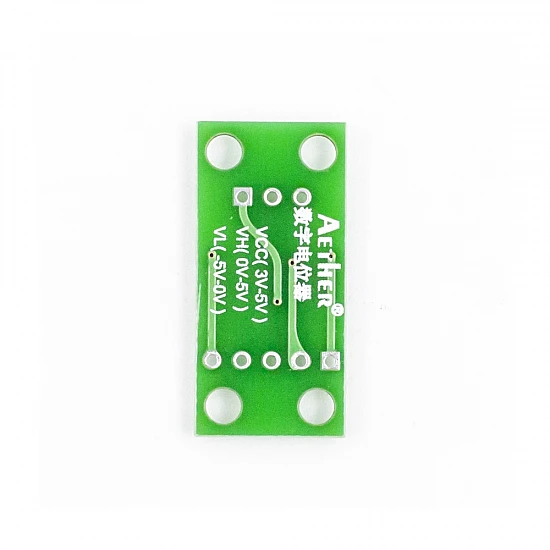

X9C103S DC 3-5V Digital Potentiometer Board Module

X9C103S DC 3-5V Digital Potentiometer Board Module
X9C103S DC 3-5V Digital Potentiometer Board Module
X9C103S DC 3-5V Digital Potentiometer Board Module
X9C103S DC 3-5V Digital Potentiometer Board Module
-17 %
X9C103S DC 3-5V Digital Potentiometer Board Module
X9C103S DC 3-5V Digital Potentiometer Board Module
X9C103S DC 3-5V Digital Potentiometer Board Module
X9C103S DC 3-5V Digital Potentiometer Board Module
X9C103S DC 3-5V Digital Potentiometer Board Module
₹191
₹229

(inc GST)

  • Stock: In Stock
  • ₹1 FlyRobo Cashback.
  • SKU: FR-01-115
    7 or more ₹183
    30 or more ₹179

X9C103S DC 3-5V Digital Potentiometer Board Module for Arduino consists of a resistor array, wiper switches, a control section, and non-volatile memory. The wiper position is controlled by a three-wire interface. These are digitally controlled (XDCP) potentiometers.

The potentiometer is implemented by a resistor array composed of 99 resistive elements and a wiper switching network. Between each element and at either end are tap points accessible to the wiper terminal.

Features:

  • Simple 3 pin interface to control the resistance.
  • 10K span potentiometer.
  • Potentiometer center tap between the 0-10k slide in total 100
  • VL and VH digital potentiometer sliding rheostat port corresponding to the low-end and high-end, allowing the input voltage range -5V to + 5V.
  • Note: The color of the Burg strip can be Yellow or Black.

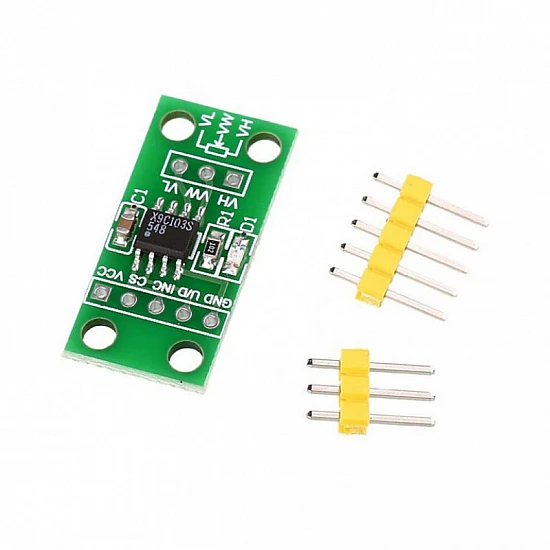

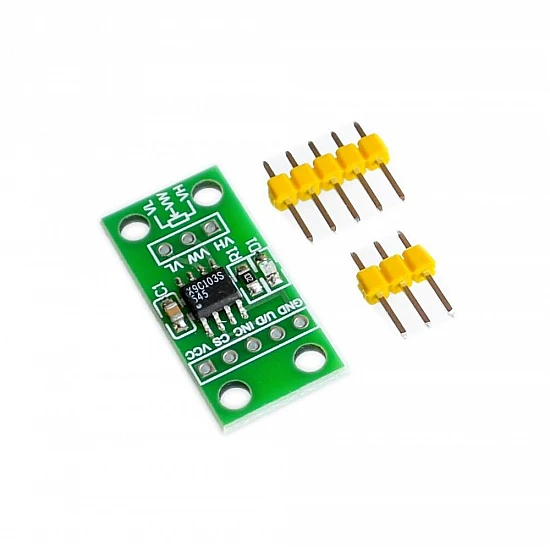

Package Includes:

1 x X9C103S DC 3-5V Digital Potentiometer Board Module.

1 x Set of Berg Strip Male Connectors.

Technical
IC Chip

X9C103S

Input Supply Voltage

DC 3 -5V

Length

27 mm

Height

3 mm

Width

14 mm
