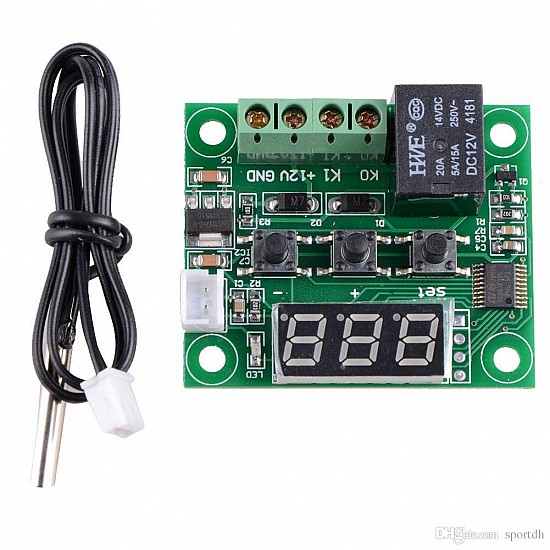

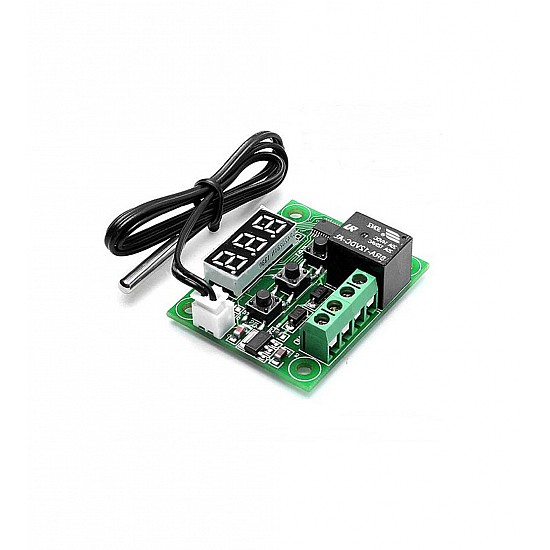

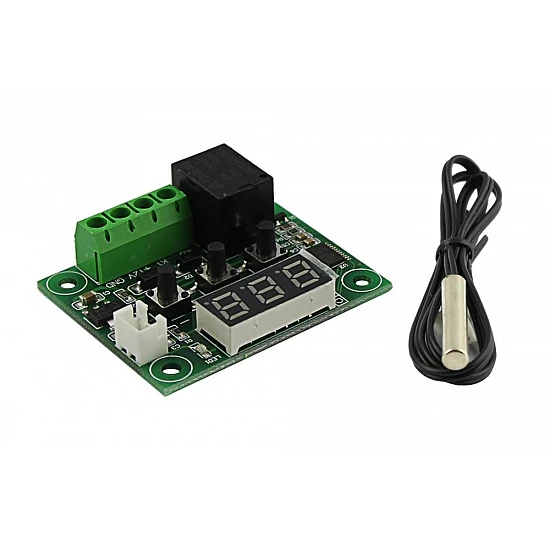

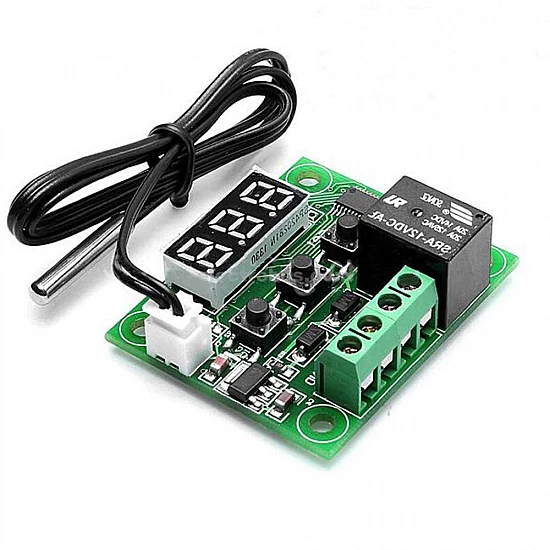

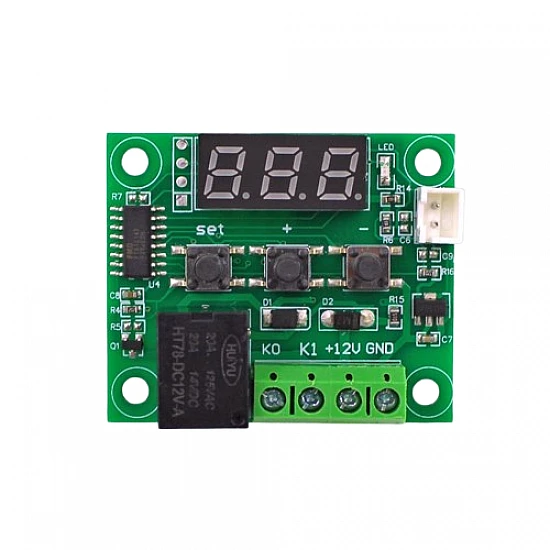

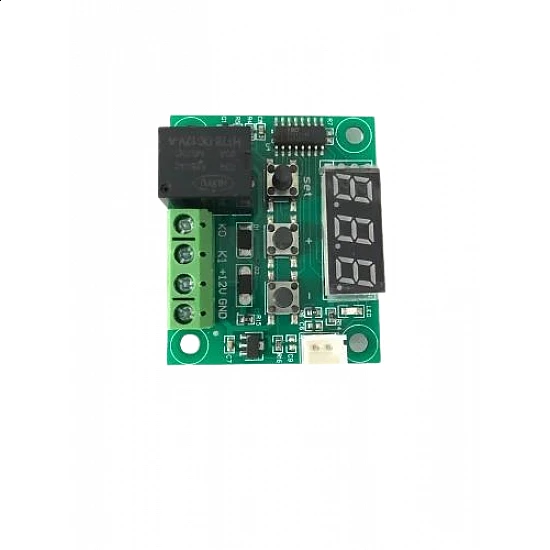

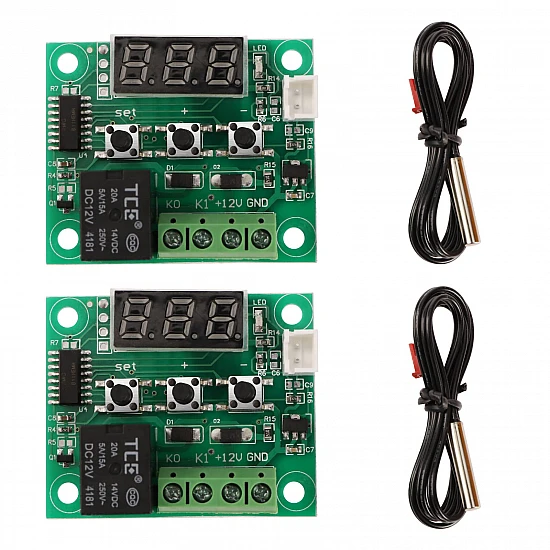

W1209 thermostat module has a temperature sensor, keys, LED display, relay and requires DC 12V power supply. Thermostats are devices that sense the temperature of a system so that the temperature is maintained at the desired set point or near to it. NTC temperature sensor allows the module to intelligently control varied electrical devices based on the temperature. NTC thermistor has a negative temperature coefficient, which means the resistance decreases with increasing temperature.
The module consists of three switches to configure the various parameters including ON and OFF trigger temperatures. The relay can operate at voltages up to a maximum of 240V AC at 5A or 14V DC at 10A to power on. The temperature is displayed in degree centigrade and with the help of a 7-segment display and the relay, the state is displayed with the help of the LED present on the W1209 module.
- Long press the “SET” button to activate the menu.
- Code Description Range Default Value
- P0 Heat C/H C
- P1 Backlash Set 0.1-15 2
- P2 Upper Limit 110 110
- P3 Lower Limit -50 -50
- P4 Correction -7.0 ~ 7.0 0
- P5 Delay Start Time 0-10 mins 0
- P6 High-Temperature Alarm 0-110 OFF
- Long pressing +- will reset all values to their default
- affordable, good quality
- LED display
- inbuilt embedded micro-controller
Package Includes :
1 x W1209 Digital Temperature Controller Thermostat Module
|Input Voltage||12 V|
|Measuring Inputs||NTC 10K|
|Output Type||1 Channel Relay Output|
|Refresh Rate||0.5 s|
|Temperature range||-50 to 110 °C|
