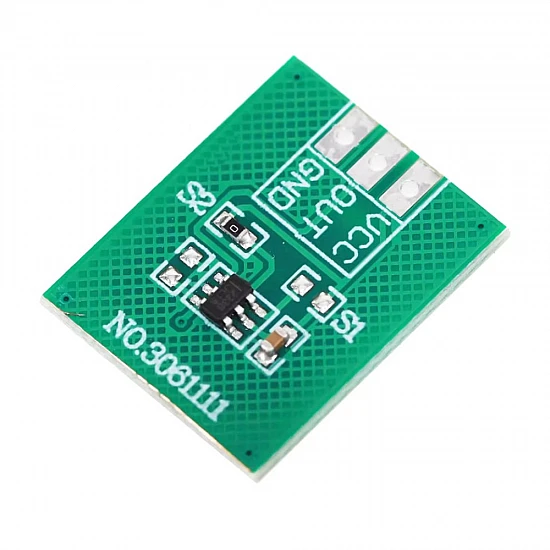

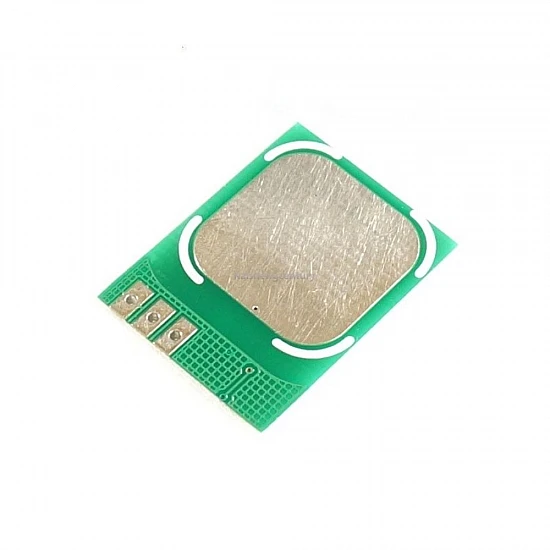

TTP223 BA6 Single Point Penetration Capacitive Touchpad Switch Isolation Touch Button Module

The TTP223 Capacitive Touch Button Module is a compact, highly sensitive single-point touch switch based on the reliable TTP223-BA6 IC. It offers a modern, wear-free alternative to traditional mechanical push buttons, providing seamless penetration touch sensing through thin, non-metallic surfaces like plastic, glass, and acrylic. If you are looking to buy online in India to upgrade your user interfaces, this sensor delivers excellent responsiveness and durability.

Perfect for creating hidden switches, interactive smart home panels, and custom DIY electronic enclosures, this module is fully compatible with 3.3V and 5V microcontrollers, including Arduino, Raspberry Pi, and ESP32. It features a simple digital output and allows for easy configuration of toggle or momentary switching modes via onboard solder pads, making integration into any circuit diagram effortless without complex Arduino code.

Features:

• Operating Voltage: Supports a wide power supply range from 2.0V to 5.5V DC.
• Penetration Sensing: Reliably detects human touch through thin non-metallic materials (up to 3mm).
• Configurable Output: Onboard solder jumpers (A/B or S1/S2) allow for momentary/latching and active-high/active-low configurations.
• Low Power Consumption: Ideal for battery-powered IoT devices and remote wireless nodes.
• Easy Interfacing: Features simple VCC, GND, and OUT pins for quick breadboarding and reliable PCB integration.

Package Includes:

1 x TTP223 Capacitive Touch Sensor Button Module
