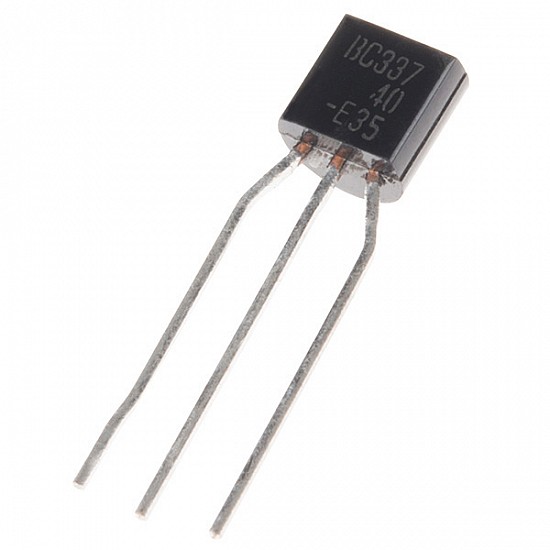

Transistor BC337 | NPN Transistor

The BC337 is an NPN transistor with a maximum gain of 630, commonly used in low power audio applications. It can also switch loads up to 45V and 800mA hence also used as general purpose transistor.


Pin Configuration :


Pin Number

Pin Name

Description

1

Collector

Current flows in through collector, normally connected to load

2

Base

Controls the biasing of the transistor, Used to turn ON or OFF the transistor

3

Emitter

Current Drains out through emitter, normally connected to ground

 Features:
  • General Purpose NPN Amplifier Transistor
  • Current Gain (hFE), 100 to 630
  • Continuous Collector current (IC) is 800mA
  • Collector-Emitter voltage (VCEO) is 45 V
  • Collector-Base voltage (VCB0) is 50V
  • Emitter-Base Voltage (VBE0) is 5V
  • Transition Frequency 100MHz
  • Available in To-92 Package


Package Content:

1 x BC337 Transistor
