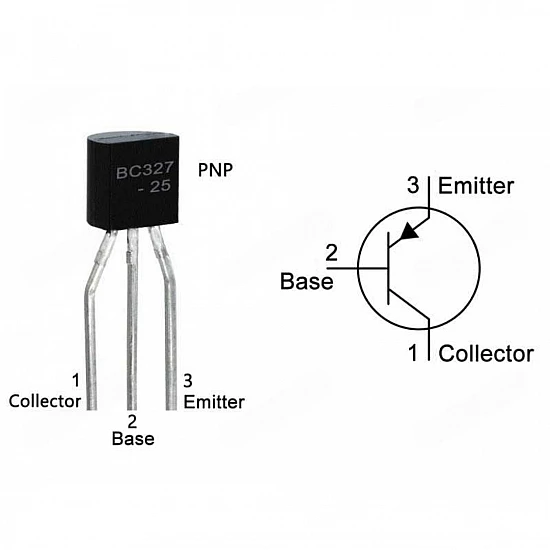

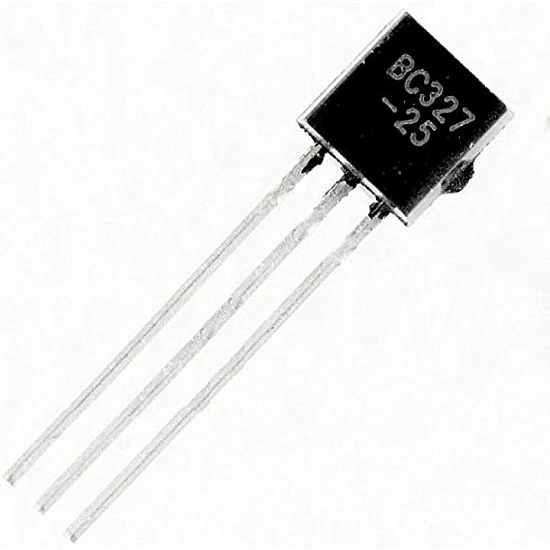

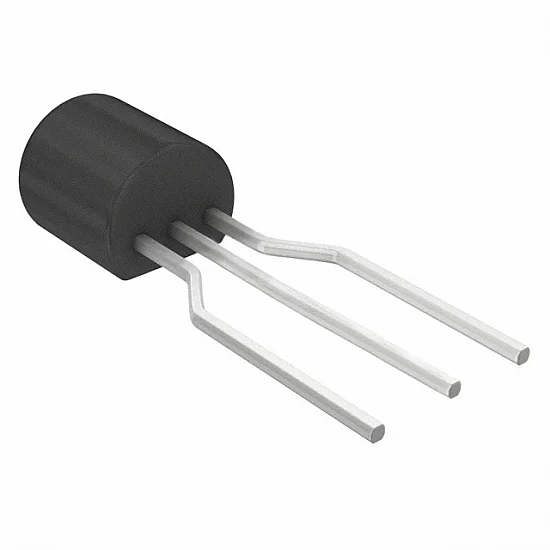

BC327-25 PNP Type Direct Plug Crystal Transistor

The BC327-25 is a PNP-type general-purpose transistor designed for low to medium current and voltage applications.
It features a collector current of up to 800mA and a maximum collector-emitter voltage of -45V.
The transistor offers a DC current gain (hFE) range of 160–400, ensuring reliable amplification.
It comes in a TO-92 package, ideal for direct plug-in mounting on circuit boards.
Commonly used in audio amplifiers, switching circuits, and signal processing, it provides stable performance.
Its low noise and high gain characteristics make it suitable for both analog and digital electronic designs.

Features:

• PNP Silicon Bipolar Junction Transistor
• Collector–Emitter Voltage (Vceo): 45V maximum
• Collector Current (Ic): up to 800mA
• DC Current Gain (hFE): range of 160 to 400
• Low Collector–Emitter Saturation Voltage
• Complementary to BC337 (NPN)

Package Includes:

1 x BC327-25 PNP Type Direct Plug Crystal Transistor
