Time-of-Flight VL53L0/1XV2 Laser Ranging Sensor (ToF)

Time-of-Flight VL53L0/1XV2 Laser Ranging Sensor (ToF)
-40 %
Time-of-Flight VL53L0/1XV2 Laser Ranging Sensor (ToF)
₹599
₹999

(inc GST)

  • Stock: In Stock
  • SKU: FR-01-192
    5 or more ₹517
    15 or more ₹471
7 Day Replacement
Replacement available on this product
Free shipping
Get free shipping above ₹ 499
COD Available
Pay Cash at the time of Delivery
Support
Get After-sale Technical Support

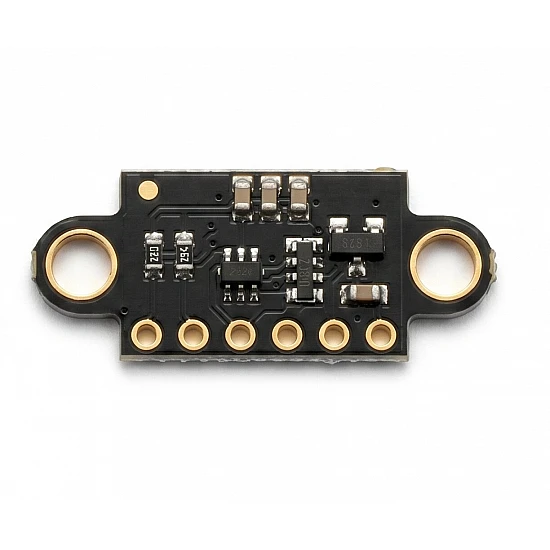

The VL53L0X laser rangefinder (also known as GY-VL53L0XV2, CJVL53L0XV2, or VL53L0XV2) employs a 940nm laser and the time-of-flight concept to determine the approximate distance between a target item and the sensor.The Time of Flight Distance Sensor-VL53L0X is a long range, high speed, and high accuracy distance sensor.In contrast to traditional technologies, the VL53L0X is a new generation Time-of-Flight (ToF) laser ranging module contained in the smallest package currently available on the market. It provides accurate distance measuring regardless of the target reflectance.

When combined with internal physical infrared filters, the VL53L0X's 940 nm VCSEL (Vertical Cavity Surface-Emitting Laser) emitter, which is completely invisible to the human eye, enables longer ranging distances, higher immunity to ambient light, and better robustness to cover glass optical crosstalk.

Features:-

  • User detection for IoT, laptops, tablets, and personal computers (Energy saving)
  • White goods and robotics (obstacle detection) (hand detection in automatic faucets, soap dispensers etc...)
  • 1D gesture identification
  • Auto-Focus helped by a laser. improves and accelerates the performance of the camera's AF system, particularly in challenging situations (poor contrast, low light) or fast-moving video mode.
  • sophisticated proximity sensors for smartphones (distance in mm)

Package Includes:-

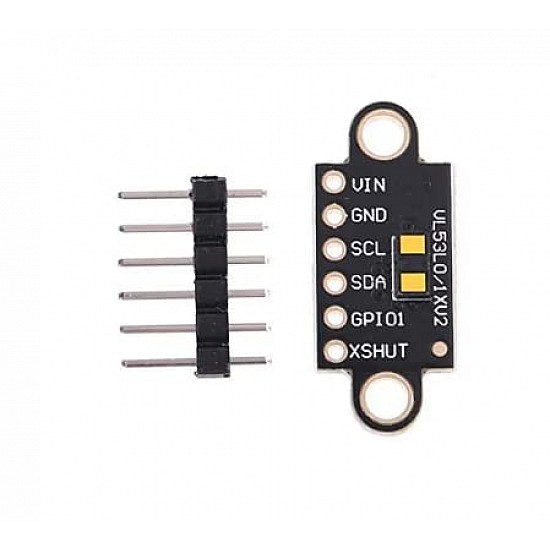

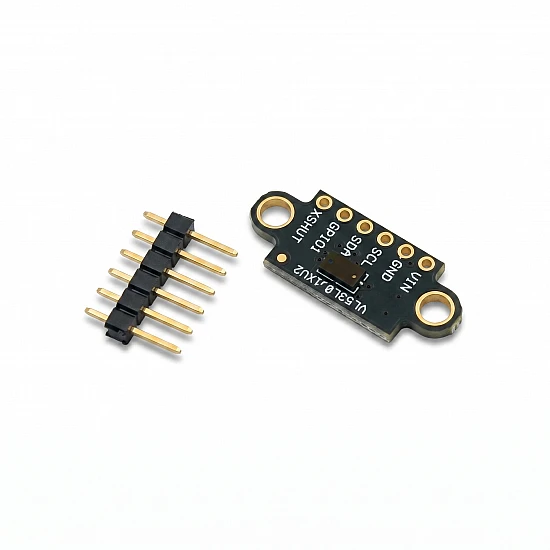

1 X t VL53L0/1XV2 Laser Ranging Sensor

1 X Soldier pin

Technical
Color

Black

Current consumption

20mA

Interface

I2C

Operating Voltage

3.3v-5v

Sampling Rate

5Hz-33Hz

Supply Voltage

3.3V
