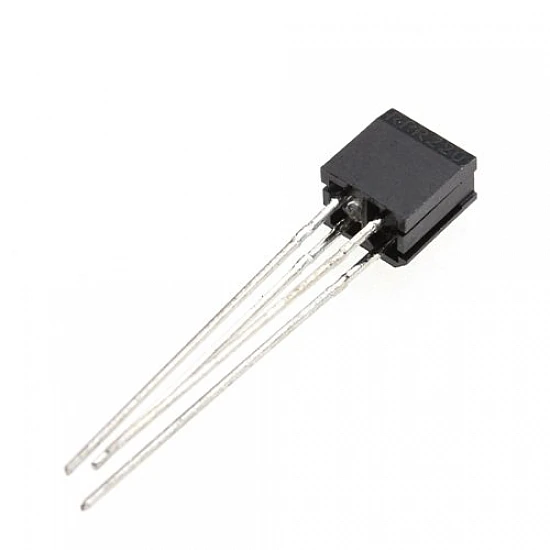

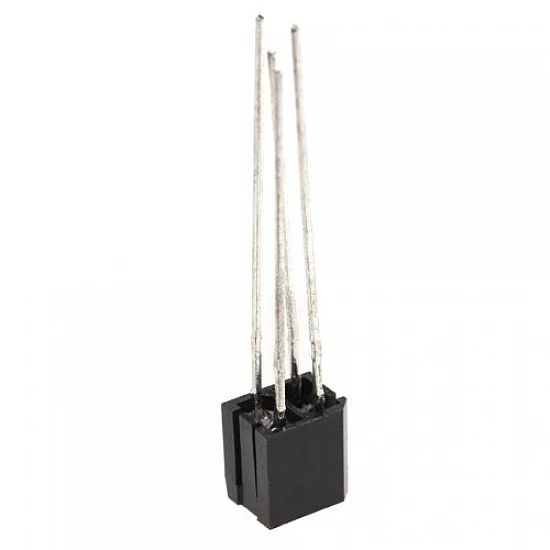

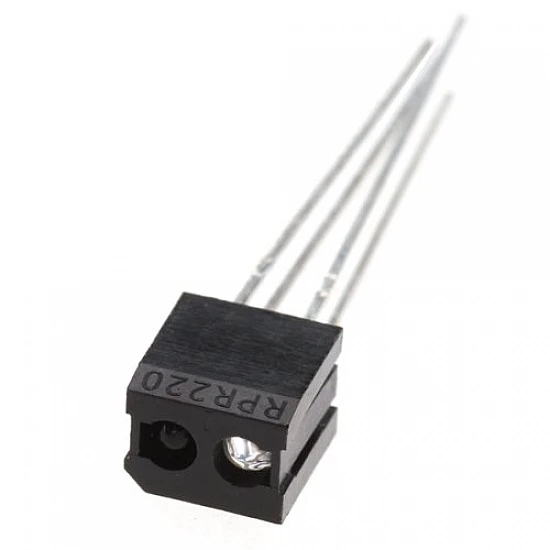

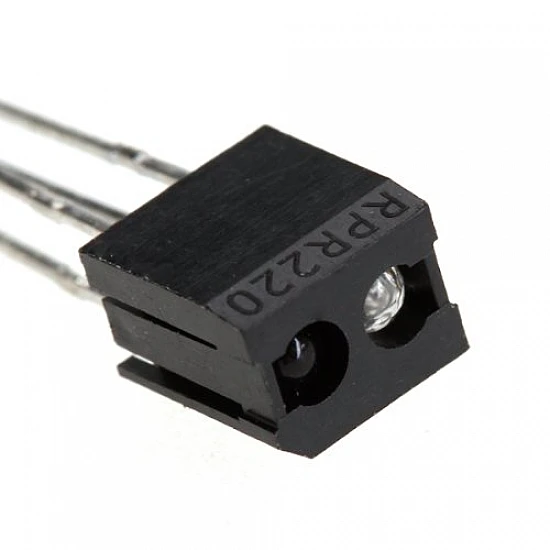

RPR-220 Infrared Reflective Sensor

RPR-220 Infrared Reflective Sensor
RPR-220 Infrared Reflective Sensor
RPR-220 Infrared Reflective Sensor
RPR-220 Infrared Reflective Sensor
RPR-220 Infrared Reflective Sensor
RPR-220 Infrared Reflective Sensor
RPR-220 Infrared Reflective Sensor
RPR-220 Infrared Reflective Sensor
RPR-220 Infrared Reflective Sensor
₹15

(inc GST)

  • Stock: In Stock
  • SKU: FR-01-657
7 Day Return
Get 7 Day Replacement/Refund on this product
Free shipping
Get free shipping on this product. Buy above ₹ 999 and get free shipping.
COD Available
Get this product with Cash at the time of Delivery
Support
Get best after-sale support From our Technical team with different Tutorials

RPR-220 is a reflective photosensor that uses infrared light to detect the color and distance of the reflecting surface. The sensor consists of an IR-LED and a phototransistor, mounted side-by-side. When an object is placed in front of the sensor, the light from the LED is reflected back to the phototransistor, which then starts conducting. The plastic lens enables the detector to be highly sensitive which makes it very useful in compact disk players, copiers, and office automation equipment.

Features:

  • Senses the presence of an object by using the reflective IR beam from the object
  • Compact construction
  • easy to use

Package Includes:

1 x RPR-220 Infrared Reflective Sensor

Write a review

Note: HTML is not translated!
Bad Good
Technical
Collector Current

30 mA

Collector Power

80mW

Collector-Emitter Voltage

30 V

Forward Current

50 mA

Reverse Voltage

5 V

Working temperature

-25 to +85 °C

Dimensions (LxWxH)

Approx. 3.2 x 0.6 x 0.4 cm
