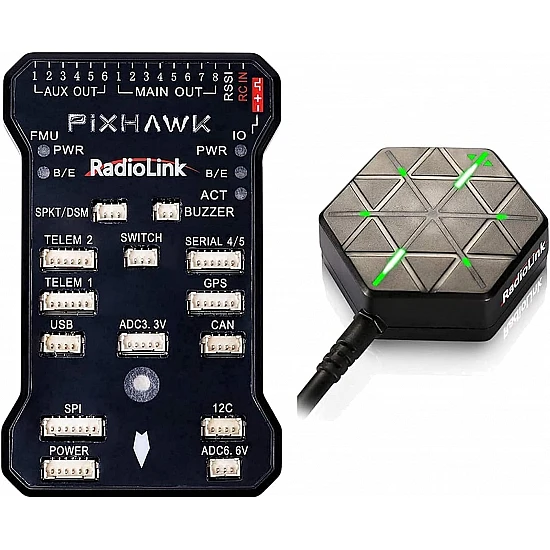

Radiolink Pixhawk Flight Controller Full Kit

Radiolink Pixhawk Flight Controller Full Kit
Radiolink Pixhawk Flight Controller Full Kit
Radiolink Pixhawk Flight Controller Full Kit
Radiolink Pixhawk Flight Controller Full Kit
Radiolink Pixhawk Flight Controller Full Kit
-10 %
Radiolink Pixhawk Flight Controller Full Kit
Radiolink Pixhawk Flight Controller Full Kit
Radiolink Pixhawk Flight Controller Full Kit
Radiolink Pixhawk Flight Controller Full Kit
Radiolink Pixhawk Flight Controller Full Kit
Radiolink Pixhawk Flight Controller Full Kit
₹17,999
₹19,999

(inc GST)

  • Stock: In Stock
  • SKU: FRC-02-856
7 Day Replacement
Replacement available on this product
Free shipping
Get free shipping above ₹ 499
COD Available
Pay Cash at the time of Delivery
Support
Get After-sale Technical Support

Introducing the Radiolink Pixhawk Flight Controller Full Kit - your ultimate companion for precision drone control. This comprehensive kit includes everything you need to take your drone to new heights. With cutting-edge technology and reliability at its core, it's the choice of professionals and enthusiasts alike.

Feature:

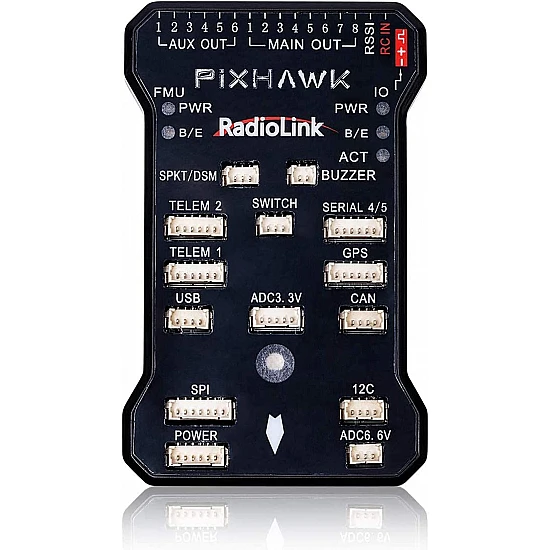

Radiolink Pixhawk Flight controller board :-

  • Multi-sound buzzer interface support.
  • Multiple flight modes, support for self-stability, height-set, hover, sports, freestyle, circling, following, return, guidance, automatic, and all-powerful.
  • Abundant connectivity options for additional peripherals (GPS, I2C, SPI).
  • 14 PWM / servo outputs (8 with failsafe and manual override, 6 auxiliary, high-power compatible).
  • Providing a multi-sound buzzer interface.
  • Multiple flight mode switches freely, Helicopter, Fixed-wing, Multi-rotor, Model Car.
  • All interfaces are fully tested and accurately detected by an automatic detection system, avoiding bad interfaces leading to flight control installation unsuccessfully.
  • Support DSM Spektrum receiver.
  • Advanced 32-bit CortexM4 ARM high-performance processor, and 32-bit STM32STMF100 failsafe co-processor.
  • Equipped with buzzer, 4G memory card, safety switch and power module

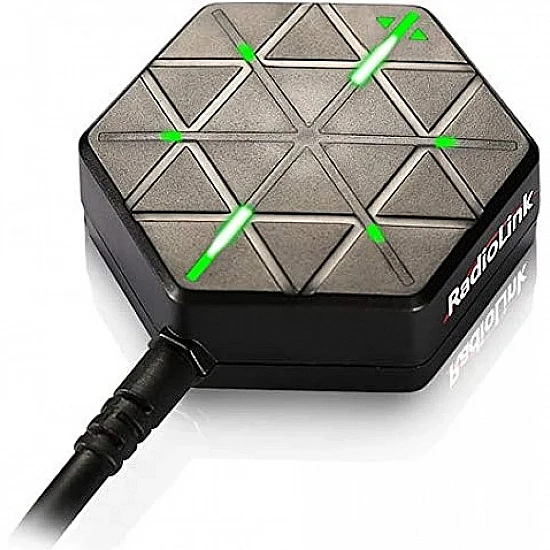

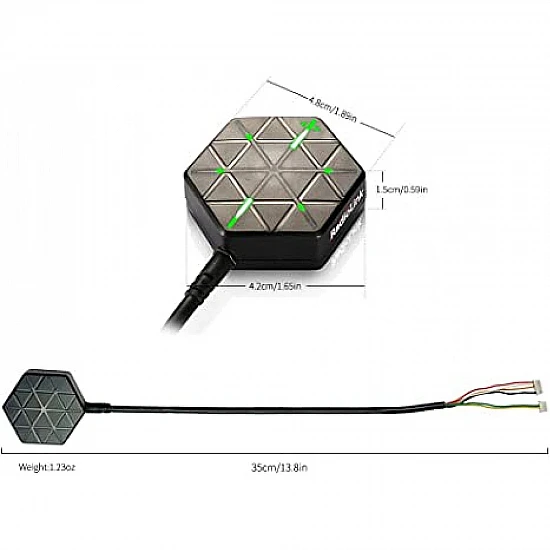

Radiolink M8N GPS SE100 Module :-

  • Positioning Accuracy to 50 cm
  • Positioning 20 Satellites at Open Ground in 6 Seconds
  • Even at Valley Bottom, Super Station-keeping Capability
  • Excellent Performance: 2.5dbl ceramic antenna design have enhances the ability to get extremely weak signal even though interference by ideal filter.
  • Top Configuration: with u-blox UBX-M8030(M8), 72-channel, MMIC BGA715L7 from Infineon, that's better than single GNSS 7N.
  • Built-in electronic compass QMC5883L (I2C port) with high precision, which same technology as Honeywell HMC5983. Support multiple positioning systems GPS, GLONASS L10F, QZSS L1 C/A, BeiDou B1, dual mode operation.

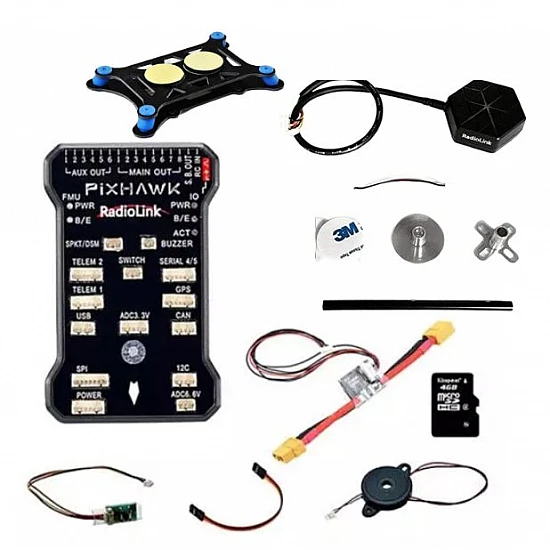

Package Includes:

1 x Radiolink Pixhawk main board

1 x Power module

1 x Safety Switch

1 x Buzzer

1 x connecting wires

1 x USB Cable for Programming

1 x User Manual

1 x M10N SE100 GPS

1 x Metal rod bracket

1 x Connecting cable

2 x Metal fixing gasket

1 x Foam fixed sticker

1 x Shock Absorber Set

Technical
Processor

32bit 32F427 ARM Cortex M4 Core + FPU (floating point unit)

Acceleration range

<4 g

Accuracy

50 centimeters positioning , can be search 20 satellites

Frequency

168 MHZ

Memory Size

2 MB Flash

Navigation Update Rate

10Hz

RAM Size

256 KB

Sensor

ST Micro L3GD20H 16 bit gyroscope

Tracking Sensitivity

–167 dBm

Type

M8N

Flight Controller
Sensors

MEAS MS5611 barometer
