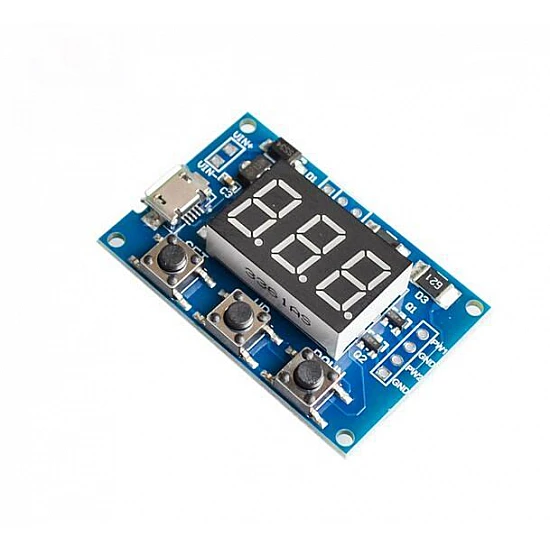

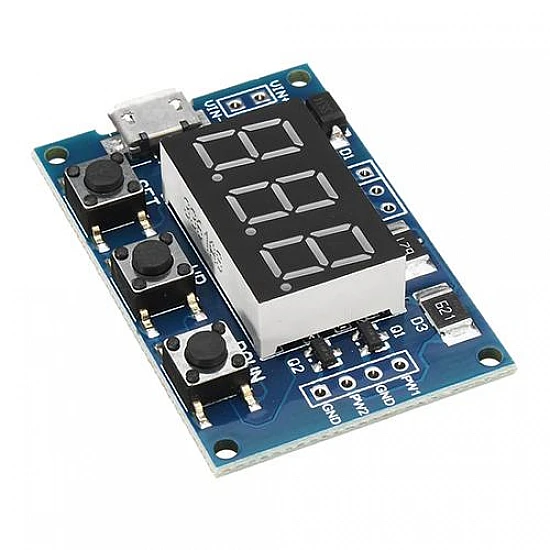

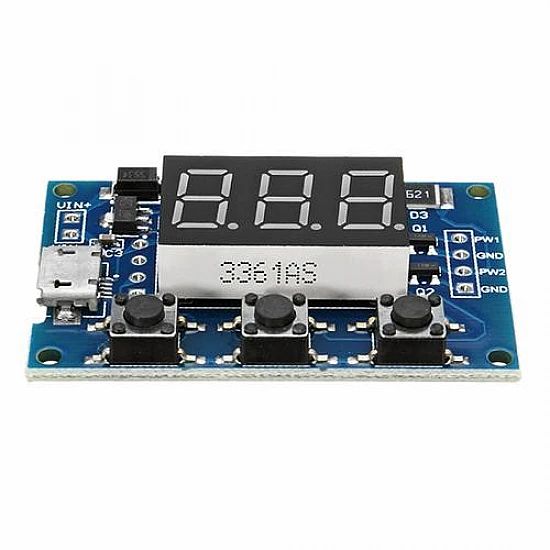

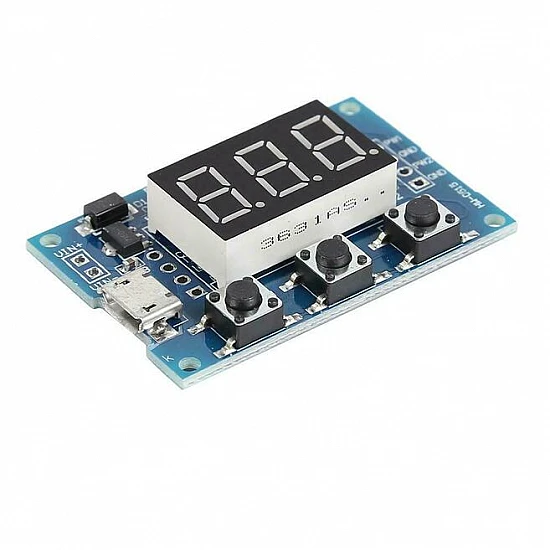

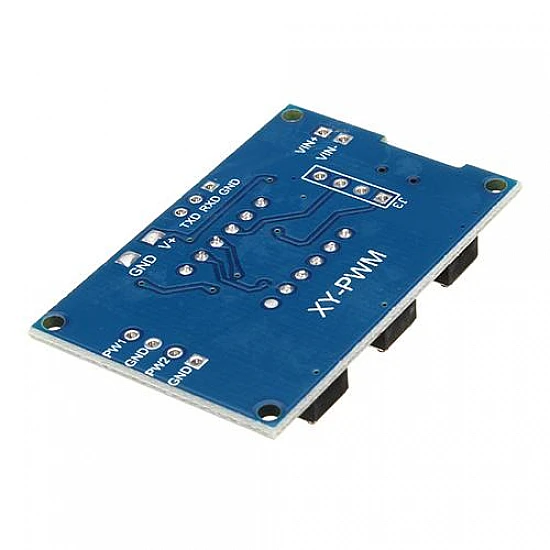

PWM Pulse Frequency and Duty Cycle Adjustable 2 Channel Signal Generator Module for Square and Rectangular Wave

2 channel PWM/Pulse generator with variable Frequency from1hz to 150Khz and Duty cycle 1% to 100% alterations. The frequency and duty cycle can be controlled using switches provided on board.

It gives an easy solution for driving stepper motors using variable frequency pulse input and DC motor with variable PWM duty cycle.

Features:

• Two independent PWM cycles with variable Frequency and Duty cycle.
• Wide frequency range 1Hz ~ 150Khz
• Parameters configurable via Serial protocol

Applications:

• To generate square waves for experiment development from a square wave generator
• It is used to drive stepping motor driver’s square wave
• To generate an adjustable pulse for MCU using
• To generate an adjustable pulse for controlling relative circuit (PWM adjust light speed etc)

Package Includes:

1 x PWM Pulse Frequency and Duty Cycle Adjustable 2 Channel Signal Generator Module for Square and Rectangular Wave
