Mega +WiFi R3 Atmega2560+NodeMCU ESP8266 32Mb Memory USB-TTL CH340G Compatible for Arduino Mega

Mega +WiFi R3 Atmega2560+NodeMCU ESP8266 32Mb Memory USB-TTL CH340G Compatible for Arduino Mega
Mega +WiFi R3 Atmega2560+NodeMCU ESP8266 32Mb Memory USB-TTL CH340G Compatible for Arduino Mega
Mega +WiFi R3 Atmega2560+NodeMCU ESP8266 32Mb Memory USB-TTL CH340G Compatible for Arduino Mega
Mega +WiFi R3 Atmega2560+NodeMCU ESP8266 32Mb Memory USB-TTL CH340G Compatible for Arduino Mega
Mega +WiFi R3 Atmega2560+NodeMCU ESP8266 32Mb Memory USB-TTL CH340G Compatible for Arduino Mega
Mega +WiFi R3 Atmega2560+NodeMCU ESP8266 32Mb Memory USB-TTL CH340G Compatible for Arduino Mega
-26 %
Mega +WiFi R3 Atmega2560+NodeMCU ESP8266 32Mb Memory USB-TTL CH340G Compatible for Arduino Mega
Mega +WiFi R3 Atmega2560+NodeMCU ESP8266 32Mb Memory USB-TTL CH340G Compatible for Arduino Mega
Mega +WiFi R3 Atmega2560+NodeMCU ESP8266 32Mb Memory USB-TTL CH340G Compatible for Arduino Mega
Mega +WiFi R3 Atmega2560+NodeMCU ESP8266 32Mb Memory USB-TTL CH340G Compatible for Arduino Mega
Mega +WiFi R3 Atmega2560+NodeMCU ESP8266 32Mb Memory USB-TTL CH340G Compatible for Arduino Mega
Mega +WiFi R3 Atmega2560+NodeMCU ESP8266 32Mb Memory USB-TTL CH340G Compatible for Arduino Mega
Mega +WiFi R3 Atmega2560+NodeMCU ESP8266 32Mb Memory USB-TTL CH340G Compatible for Arduino Mega
₹1,489
₹1,999

(inc GST)

  • Stock: In Stock
  • ₹11 FlyRobo Cashback.
  • SKU: FR-01-429
    5 or more ₹1,439
    15 or more ₹1,412

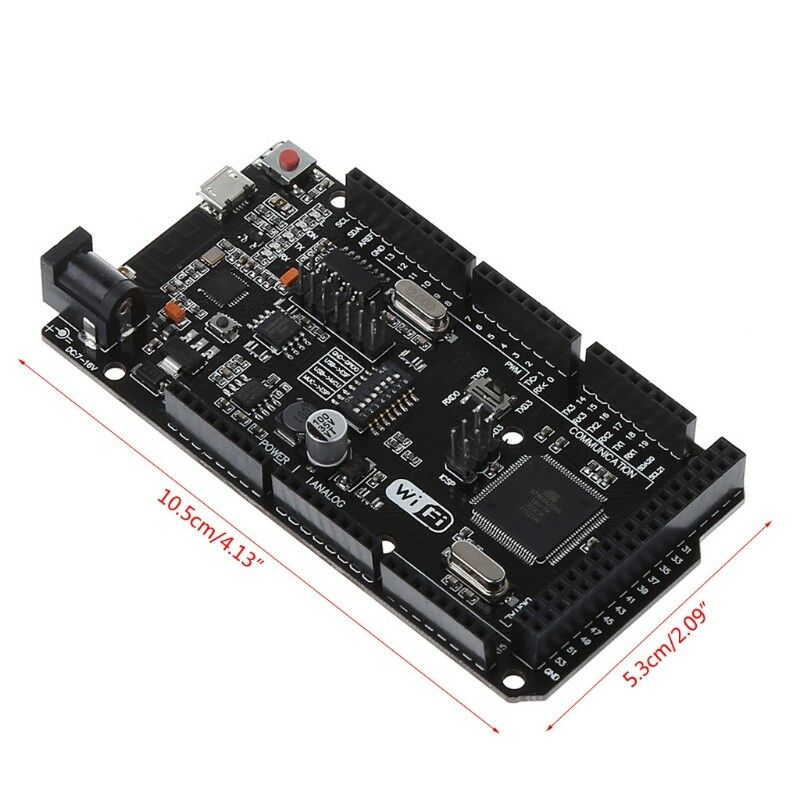

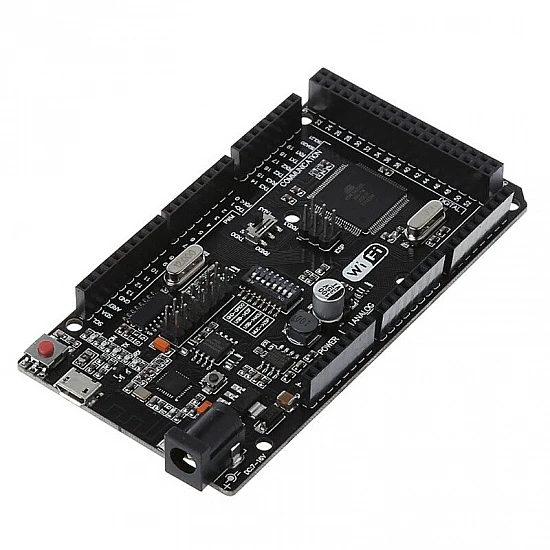

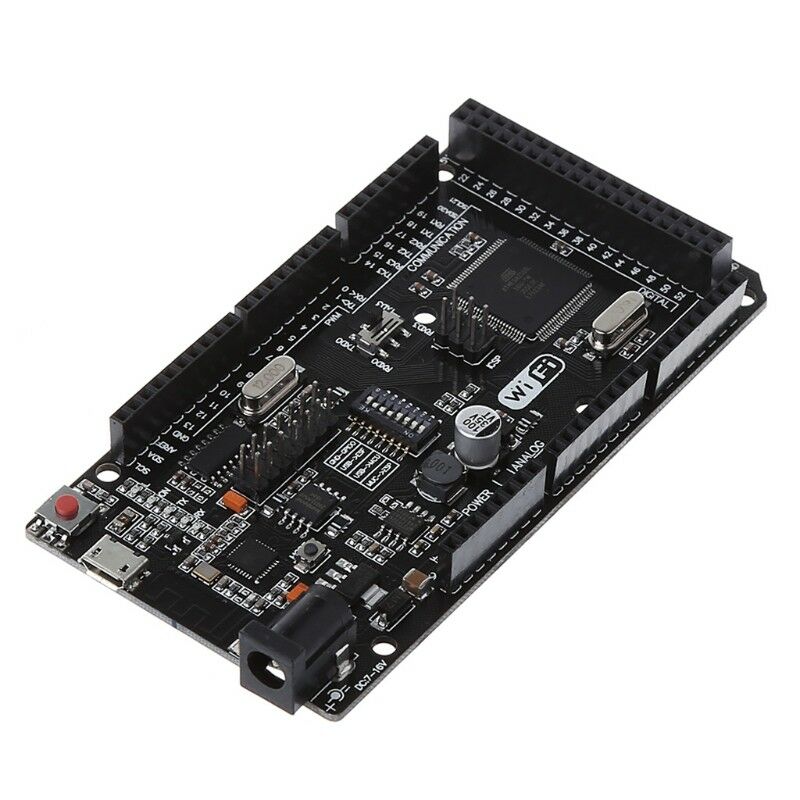

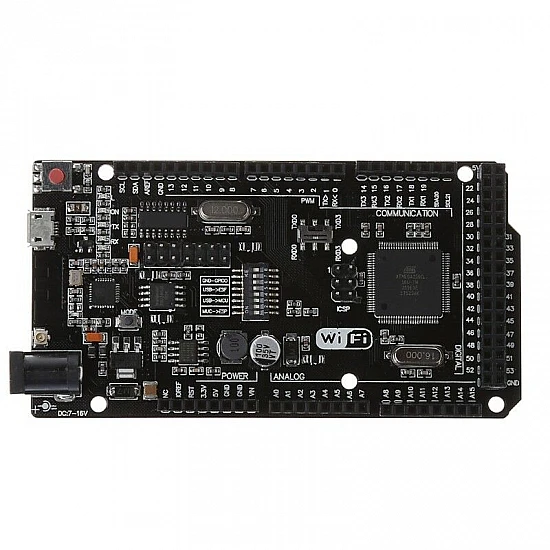

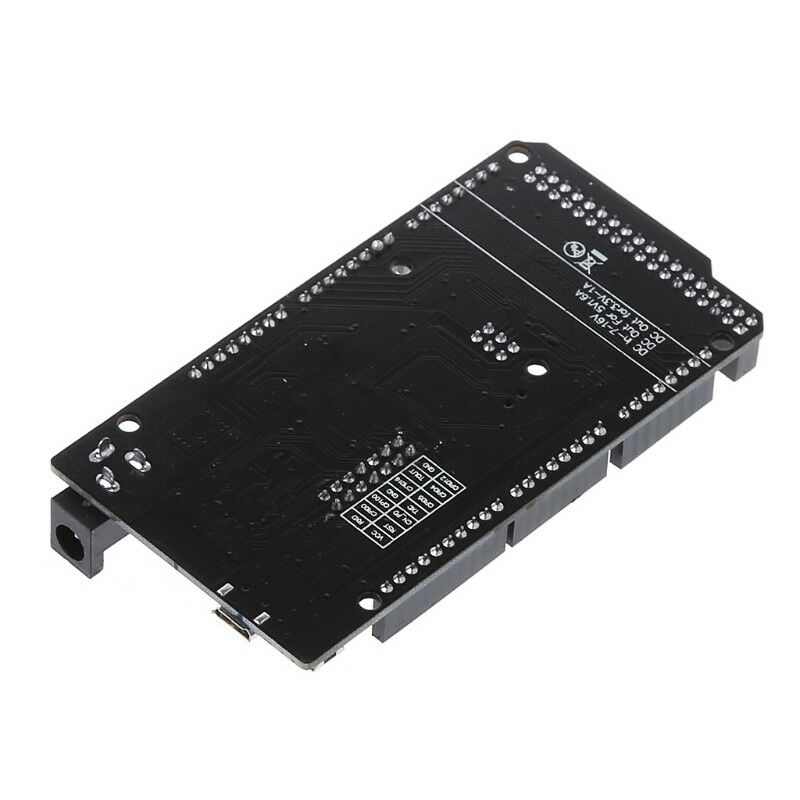

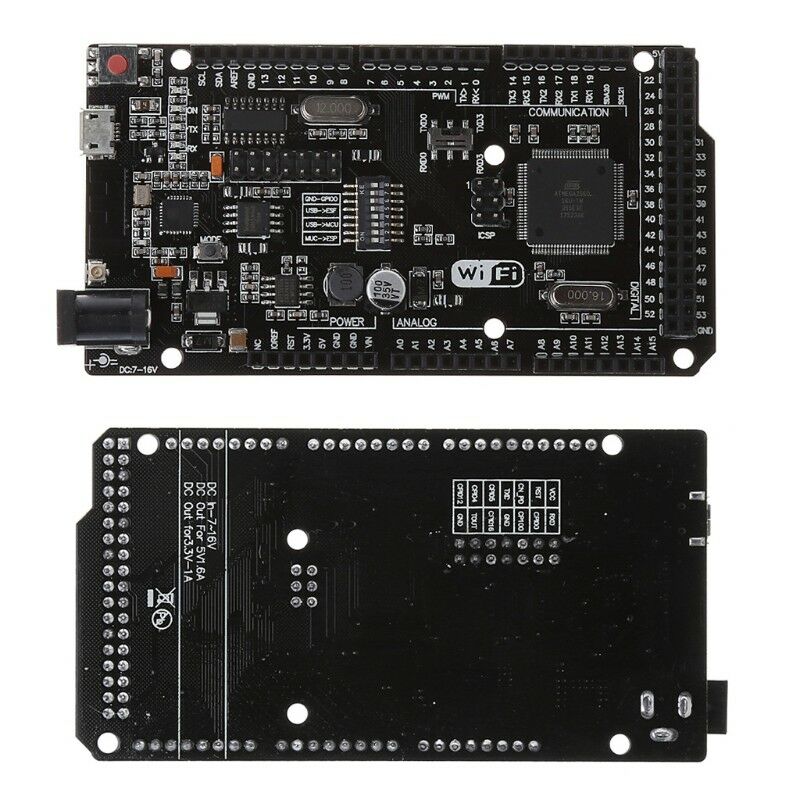

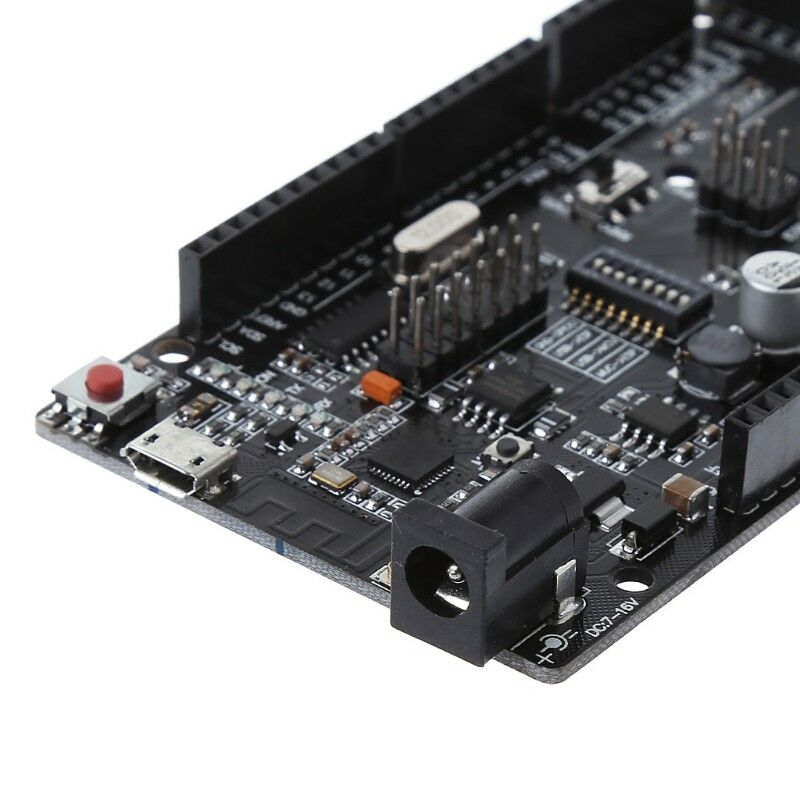

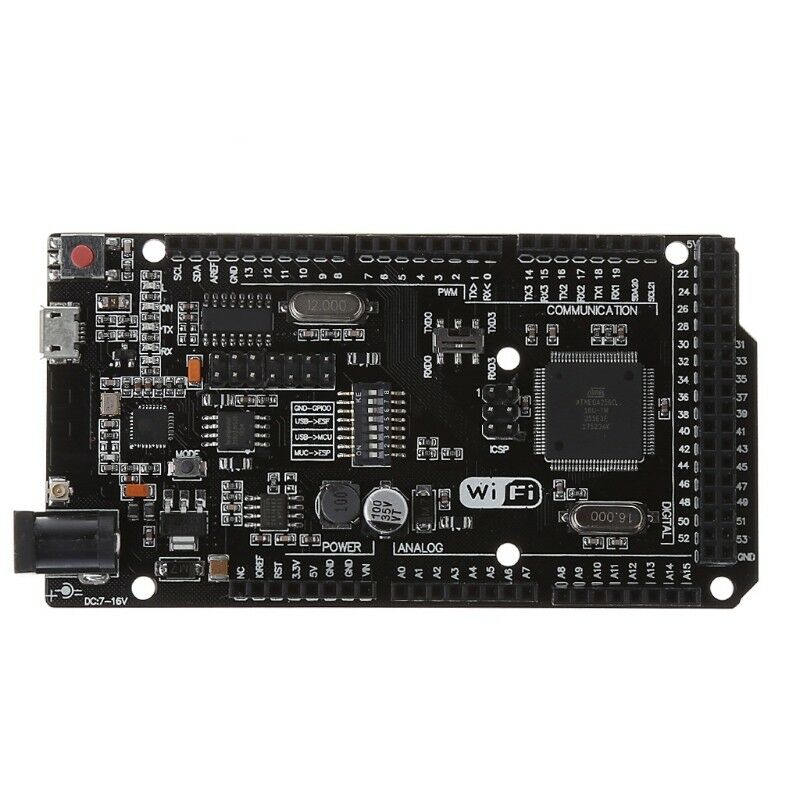

Mega +WiFi R3 Atmega2560+NodeMCU ESP8266 32Mb Memory USB-TTL CH340G Compatible For Arduino Mega is Full integration on one board Mega R3 ATmega2560 and WiFi ESP8266 with memory 32Mb.

It is a customized version of the classic ARDUINO MEGA R3 board. Full integration of Atmel ATmega2560 microcontroller and ESP8266 Wi-Fi IC, with 32 Mb (megabits) of flash memory, and CH340G USB-TTL converter on a single board! All components can be set up to work together or independently.

All of the modules can work together or separately. And everyone has their own pinout headers. The convenient solution for the development of new projects requiring Uno and WiFi. Via USB you can update sketches and firmware for ATmega328 and for ESP8266.

For this onboard have the USB-serial converter CH340G. Use this board is very simple. The board has DIP-switch, to connect the modules. For example, to USB and ATmeg2560, USB and ESP8266, ATmega2560, and ESP8266.



Specifications:

Microcontroller ATmega2560
IC Wi-Fi ESP8266
USB-TTL converter CH340G
USB Micro USB
Data RAM Size 8Kb
Data ROM Size 4Kb
Memory Size 256kb
Clock Frequency 16MHz
Digital I/O 54
Analog I/O 16
Logic Level 5V
Operating Supply Voltage 5V
Power Input USB 5V (500mA max.)
Power Input VIN/DC Jack 9-24V
Power Consumption 5V 800mA
Power Out 5V-800mA



Package Includes :

1 x Mega +WiFi R3 Atmega2560+NodeMCU ESP8266  Compatible For Arduino Mega.

Technical
Microcontroller

ATmega2560

Analog I/O Pins

16

Clock Speed

16MHz

Digital I/O Pins

54

Memory Size

256kb

Operating Voltage

5V

RAM Size

8Kb

ROM Size

4Kb

USB

Micro USB

USB-TTL converter

CH340G

Wi-Fi IC

ESP8266
