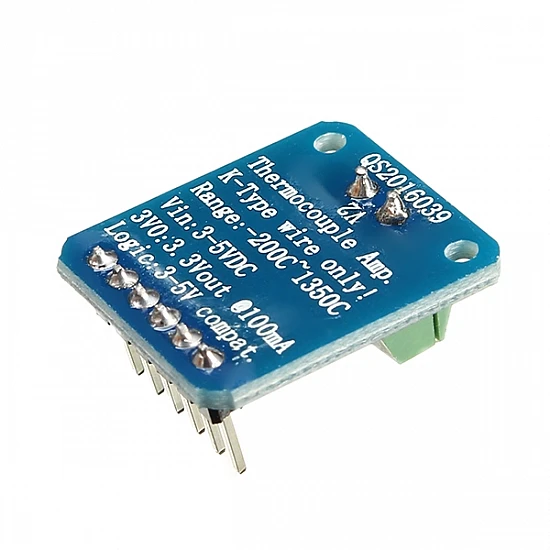

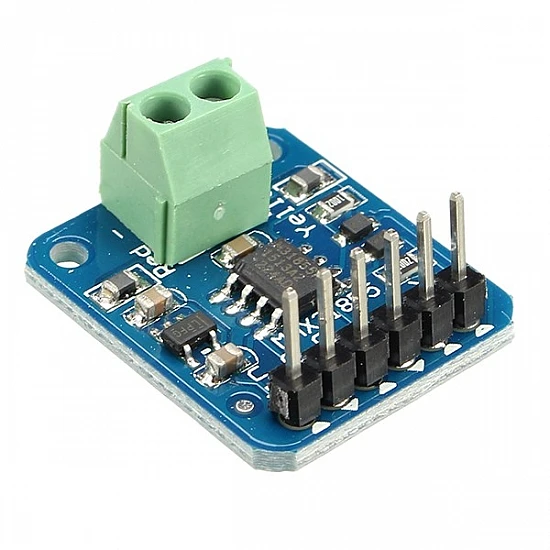

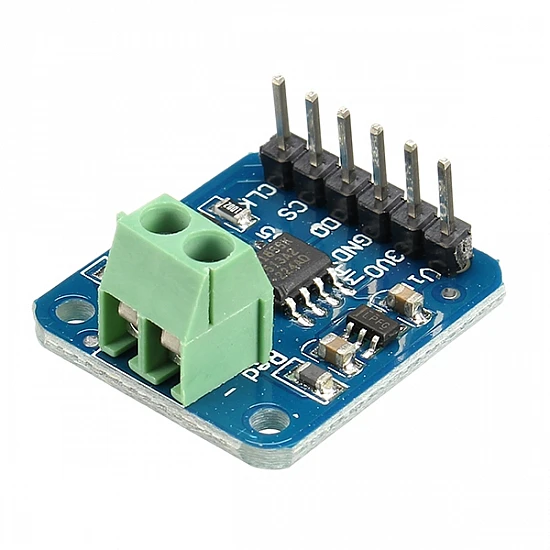

MAX31855 K Type Thermocouple Breakout Module

MAX31855 K Type Thermocouple Breakout Module
MAX31855 K Type Thermocouple Breakout Module
MAX31855 K Type Thermocouple Breakout Module
-36 %
MAX31855 K Type Thermocouple Breakout Module
MAX31855 K Type Thermocouple Breakout Module
MAX31855 K Type Thermocouple Breakout Module
MAX31855 K Type Thermocouple Breakout Module
₹630
₹985

(inc GST)

  • Stock: In Stock
  • ₹6 FlyRobo Cashback.
  • SKU: FR-01-166
    5 or more ₹606
    15 or more ₹592

MAX31855 is easily interfaced with any microcontroller, even one without an analog input.  This breakout board has the chip itself, a 3.3V regulator with 10uF bypass capacitors, and level shifting circuitry.

Features:

  • It comes with a 2 pin terminal block for connecting to the thermocouple.
  • It comes with a pin header to plug into any breadboard.
  • It works with any k type thermocouple.
  • SPI interfaces, high-speed transmission.

Package Includes:

1 x MAX31855 K Type Thermocouple Breakout Module.

Technical
Interface

SPI

Operating Voltage

3.3 - 5VDC

Resolution

14 bit

Temperature measuring range

-200°C to 1350°C

Length

22 mm

Height

10 mm

Width

20 mm
