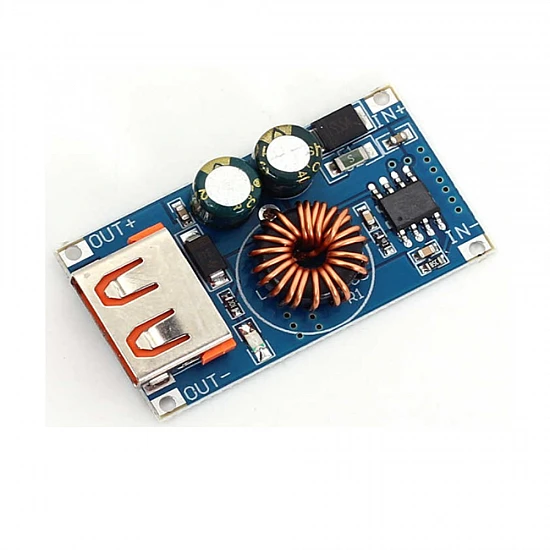

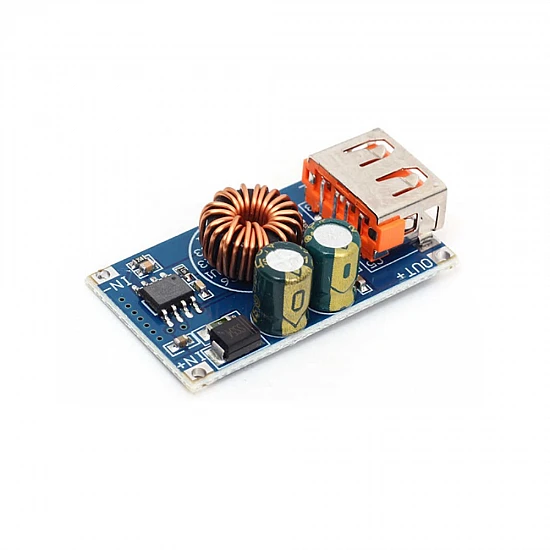

IP6505 USB DC-DC Step-Down QC3.0 Fast Charger Module 24W

The IP6505 USB DC-DC Step-Down Fast Charger Module is a high-efficiency buck converter designed to deliver rapid charging capabilities for your mobile devices. Powered by the advanced IP6505 IC, this compact board accepts a wide input voltage range from 6V to 32V, making it ideal for 12V and 24V systems such as automotive batteries, solar setups, and industrial power supplies. It steps down the voltage efficiently to provide a stable USB output, automatically negotiating the optimal charging speed with connected devices.

This versatile charging board supports multiple fast-charging protocols, including Qualcomm QC2.0/QC3.0, Apple, Samsung AFC, Huawei FCP, and MediaTek PE. Whether you are building a custom DIY car charger, a solar-powered charging station, or integrating a reliable USB power source into your robotics and IoT projects, this module offers robust performance. It features built-in safety mechanisms such as input overvoltage/undervoltage protection, output overcurrent, and short-circuit protection to safeguard your expensive electronics.

Features:

• Advanced IP6505 Controller: High-efficiency synchronous switch buck converter chip ensures minimal heat generation.
• Multi-Protocol Fast Charging: Fully compatible with QC3.0, Huawei FCP, Samsung AFC, and Apple fast charging.
• Wide Input Range: Supports 6V to 32V DC input, perfect for both 12V and 24V vehicle electrical systems.
• Dynamic Output Voltage: Automatically adjusts output between 3V and 12V based on the fast-charging protocol triggered.
• Comprehensive Protection: Equipped with input undervoltage, output overcurrent, short-circuit, and over-temperature protection.
• High Conversion Efficiency: Achieves up to 97% efficiency, reducing energy loss and thermal footprint.

Package Includes:

1 x IP6505 USB DC-DC Step-Down QC3.0 Fast Charger Module
