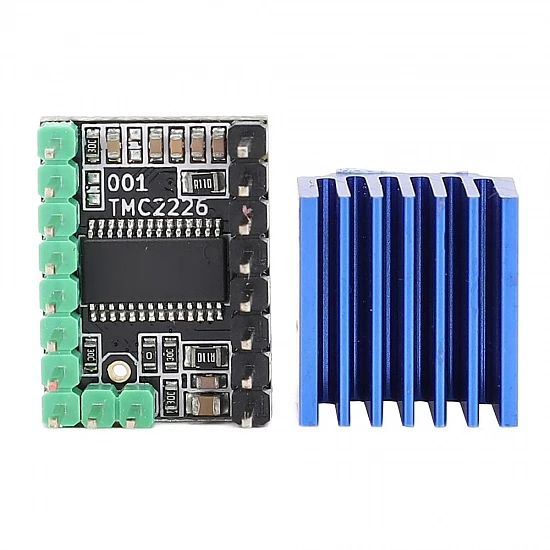

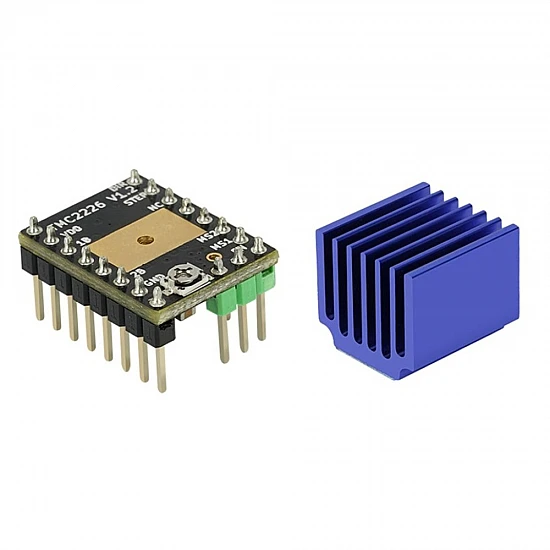

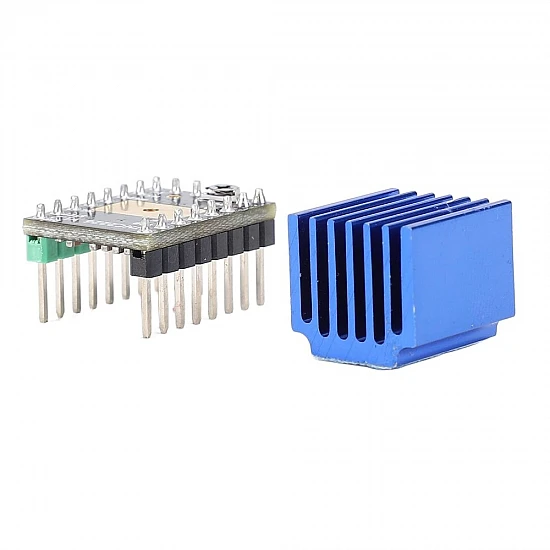

TMC2226 Stepper Motor Driver Module with Heatsink

The TMC2226 Stepper Motor Driver Module is an ultra-silent, high-performance two-phase stepper motor driver designed to deliver exceptionally smooth and quiet motor operation. Powered by the advanced Trinamic TMC2226-SA chip, this module is a highly reliable upgrade for noisy A4988 or TMC2208 drivers. It features StealthChop2 technology for silent motor movement and SpreadCycle for high-dynamic torque control, making it the perfect solution for eliminating high-pitched motor whine in precision applications.

This driver module is fully compatible with popular 3D printer controller boards (such as BIGTREETECH, MKS, and RAMPS) and microcontrollers like Arduino, ESP32, and Raspberry Pi. It supports both classic STEP/DIR interfacing and advanced UART configuration for software-defined current limits and microstepping adjustments. With the included heavy-duty aluminum heatsink and a large thermal dissipation pad on the PCB, the TMC2226 ensures stable, cool operation even under continuous heavy loads in 3D printers, CNC machines, and robotics projects.

Features:

• Ultra-Silent Operation: Integrated StealthChop2 technology ensures near-silent motor movement at low to medium speeds.
• High Dynamic Torque: SpreadCycle chopper mode provides high torque and excellent dynamics for high-speed operations.
• Sensorless Homing: Supports StallGuard4 for high-precision, sensorless motor load detection and homing.
• Energy Efficient: CoolStep current control reduces energy consumption by up to 75% and minimizes motor heat generation.
• Flexible Configuration: Supports standard STEP/DIR interface or advanced UART mode for digital control.
• Enhanced Thermal Management: Features a large bottom-side cooling area and comes with a premium blue anodized aluminum heatsink.

Package Includes:

1 x TMC2226 Stepper Motor Driver Module

1 x Blue Aluminum Heatsink
