HX711 Digital Display Electronic Scale Weighing Pressure Sensor Module

HX711 Digital Display Electronic Scale Weighing Pressure Sensor Module
HX711 Digital Display Electronic Scale Weighing Pressure Sensor Module
HX711 Digital Display Electronic Scale Weighing Pressure Sensor Module
HX711 Digital Display Electronic Scale Weighing Pressure Sensor Module
HX711 Digital Display Electronic Scale Weighing Pressure Sensor Module
-27 %
HX711 Digital Display Electronic Scale Weighing Pressure Sensor Module
HX711 Digital Display Electronic Scale Weighing Pressure Sensor Module
HX711 Digital Display Electronic Scale Weighing Pressure Sensor Module
HX711 Digital Display Electronic Scale Weighing Pressure Sensor Module
HX711 Digital Display Electronic Scale Weighing Pressure Sensor Module
HX711 Digital Display Electronic Scale Weighing Pressure Sensor Module
₹291
₹399

(inc GST)

  • Stock: In Stock
  • ₹2 FlyRobo Cashback.
  • SKU: FR-01-294
    7 or more ₹269
    30 or more ₹257
7 Day Replacement
Replacement available on this product
Free shipping
Get free shipping above ₹ 499
COD Available
Pay Cash at the time of Delivery
Support
Get After-sale Technical Support

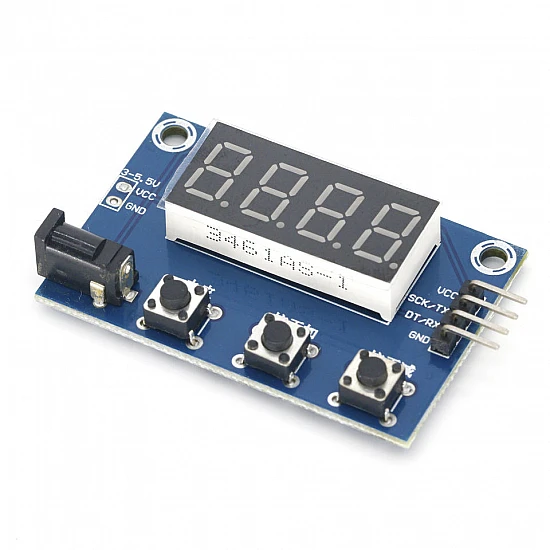

HX711 Digital Display Electronic Scale Weighing Pressure Module is an integrated module of the pressure sensor test board. The module is connected to the pressure sensor first and then powered on for use. After connecting with the pressure sensor for the first time, calibration is required. The board has functions such as peeling and calibration. The parameters can be saved after the power is off, and there is no need to calibrate again in the future.

Features:

  • Type: HX711 Pressure Sensor Module
  • Connect Pressure Sensor:5KG/10KG
  • 4-digit Digital Tube Display shows 4 numerical.

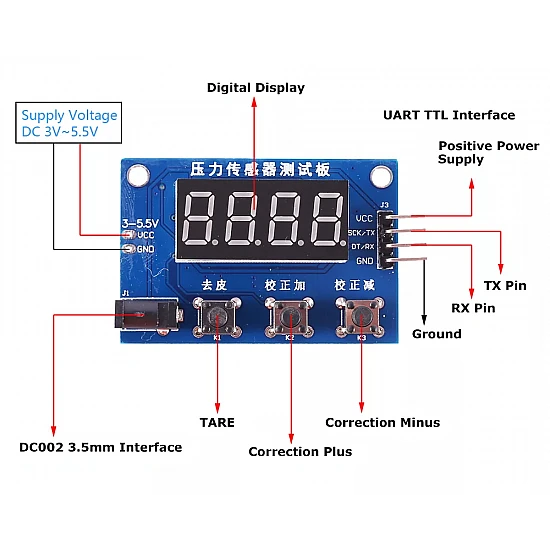

  • Designed for Wide Voltage, The Power Supply Range is 3-5.5v.
  • There are 2 Power Supply Methods. USB Cable Power supply or own wiring (Reserved Interface).

Package Includes:

1 x HX711 Digital Display Electronic Scale Weighing Pressure Sensor Module.

Technical
Humidity

5%~95%RH

Operating Temperature Range

-25℃ to 85℃

Power supply

3.5V - 5VDC

Dimensions (LxWxH)

50x33x10mm
