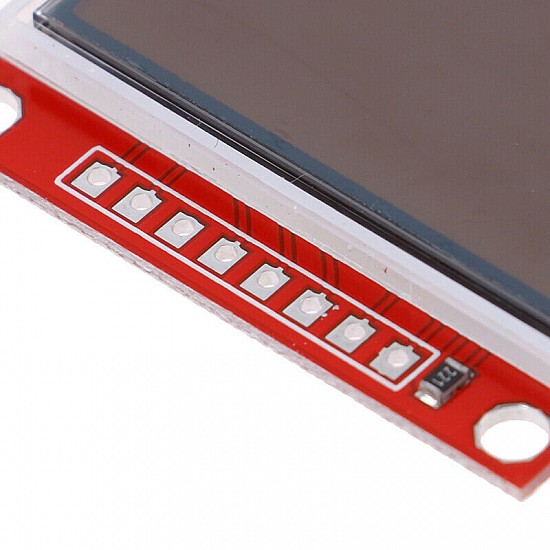

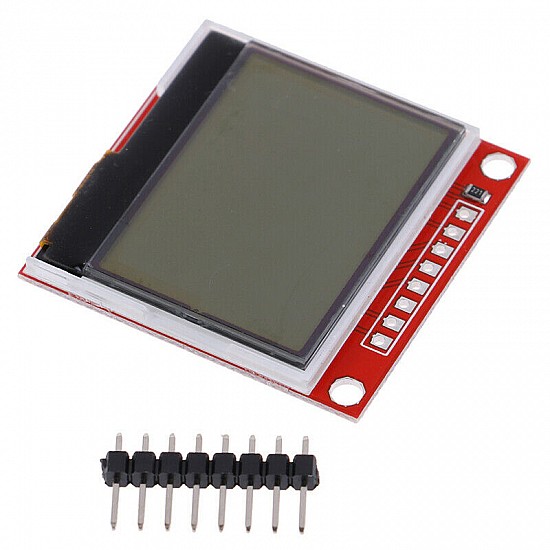

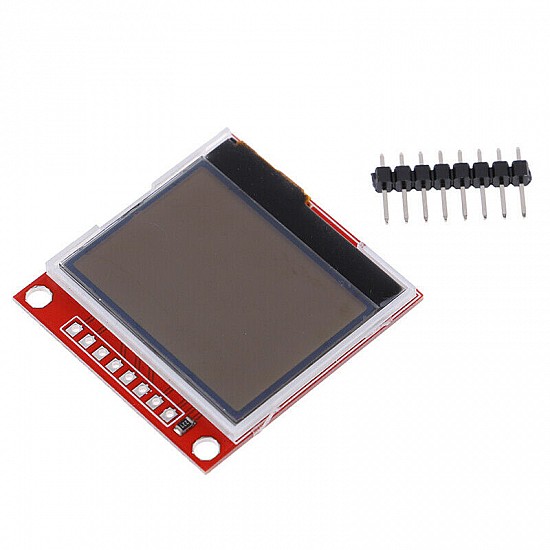

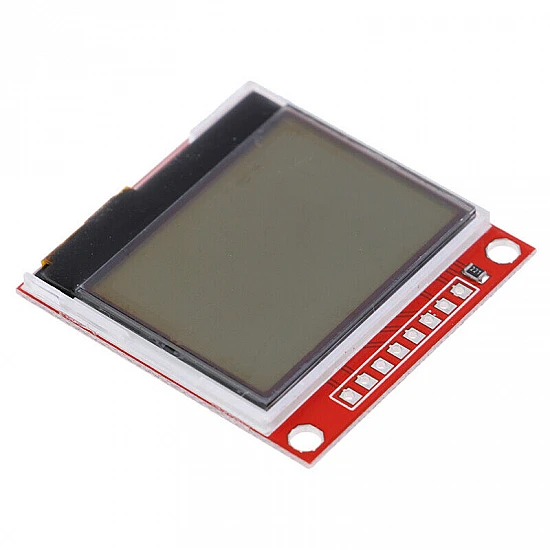

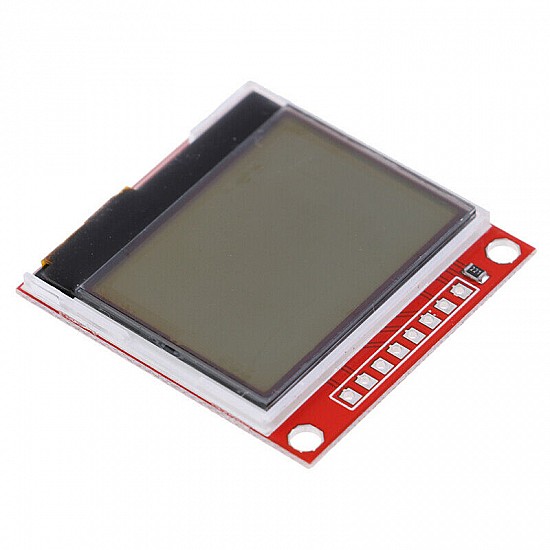

HX1230 96x68 LCD Display Module

The HX1230 LCD is a graphic LCD screen originally intended for a cell phone screen. It uses the HX1230 controller. The HX1230 is a low-power CMOS LCD controller/driver, designed to drive a graphic display of 68 rows and 96 columns. The HX1230 requires four I/O pins for interfacing and support a single LED backlight, resulting in low power consumption.

The HX1230 interfaces to microcontrollers through a serial bus interface. You can you this display in your various project by connecting with Arduino or other microcontrollers.

Features:

  • Supply voltage: 2.7V to 5V
  • Requires 4 I/O pins
  • Single LED backlight
  • Serial bus interface with speed up to 4Mbit/s
  • Low power consumption

Package included:

1 X HX1230 96x68 LCD Display Module

Write a review

Note: HTML is not translated!
Bad Good
Technical
Input Voltage

2.7V to 5V

Interface Type

Serial bus interface with speed up to 4Mbit/s

PCB Size ( L x W )

4.5 cm x 4.6 cm

Resolution

96x68 pixel
