1000RPM High Torque Side Shaft DC Metal Geared Johnson Motor

High Torque Side Shaft DC Metal Geared Motor -1000RPM - DC Gear Motor - Motor and Driver
-33 % Out Of Stock
1000RPM High Torque Side Shaft DC Metal Geared Johnson Motor
₹469
₹699

(inc GST)

  • Stock: Out Of Stock
  • ₹4 FlyRobo Cashback.
  • SKU: FR-04-326
    7 or more ₹434
    30 or more ₹415

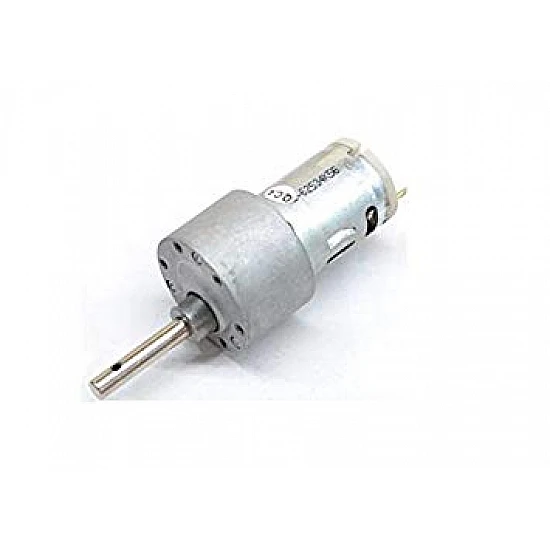

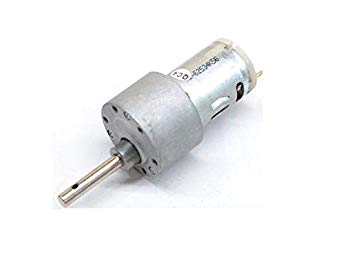

1000 RPM 12V DC Johnson high torque geared motors for robotics applications. It gives a massive torque of 10Kgcm. The motor comes with metal gearbox and off-cantered shaft.

Specification :

  • Motor Type : High Torque Side Shaft Metal Gearedbox Motor.
  • Rated Voltage :12V DC.
  • Rated RPM  :1000
  • Torque : 10Kgcm
  • Weight : 180gm
  • No Load Current  : 800mA (Max.)
  • Load Current : 7.5A (Max.)
  • Shaft Diameter : 6mm (with M3 thread hole.)
  • GearBox Diameter : 37mm
  • Shaft Length : 30mm
  • Motor Diameter : 28.5mm
  • Motor Length : 63mm (Without Motor Shaft.)

Features :

  • Easy to connect with Pully, Wheel, and rotary with M3 thread hole.
  • Motor and Gearbox are repairable.
  • Long Gearbox shaft provide disclosement with machine application.
  • It provides very high torque, applicable in spindle motor also.



Package Content :

  • 1 X Gear Motor
