HC-12 433 SI4463 Wireless Serial Module

HC12 Module is based on the SI4463 EZRadioPro family chip. This module offers a wireless data transmission and reception range of approximately 1 km in the open air. It’s a low power radio chip that is ultra-easy to use.

This module has an onboard STM8S003F3P6 MCU which is communicating with the SI4463 so that the user can communicate with the HC12 module using a simple TTL 2 wire serial interface (RX, TX, GND).

Features:

• IEEE 802.15.4g compliant
• Frequency range = 119–1050 MHz
• Receive sensitivity = –126 dBm
• Serial TTL (RX, TX, GND) interface
• Modulation (G)FSK, 4(G)FSK, (G)MSK, OOK
• Max output power +20 dBm
• Low active power consumption 10/13 mA RX, 18 mA TX at +10 dBm
• Ultra-low current power-down modes 30 nA shutdown, 50 nA standby
• Data rate = 100 bps to 1 Mbps
• Fast wake and hop times
• The highly configurable packet handler
• TX and RX 64 byte FIFOs
• Auto frequency control (AFC)
• Automatic gain control (AGC)
• Low BOM
• Low battery detector
• FCC Part 90 Mask D, FCC part 15.247, 15,231, 15,249, ARIB T-108, T-96, T-67, RCR STD-30, China regulatory
• ETSI Class-I Operation with SAW

Package Includes:

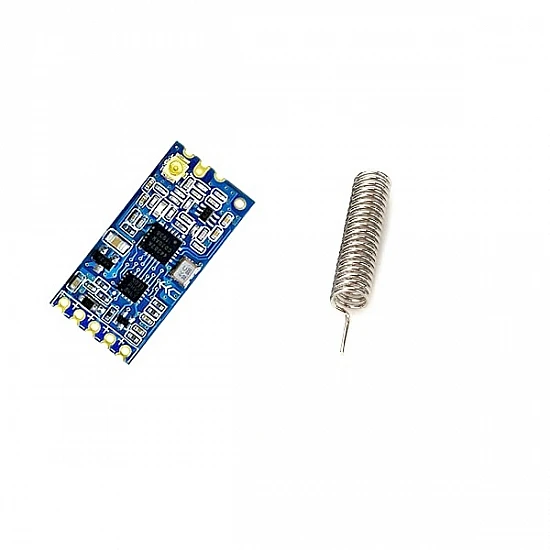

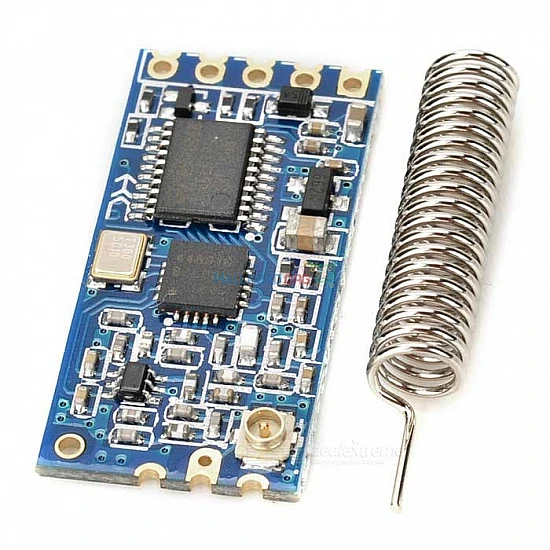

1 x HC-12 433 SI4463 Wireless Serial Module
