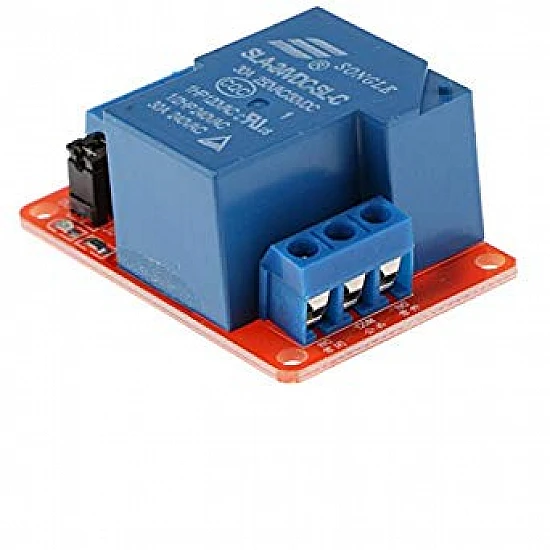

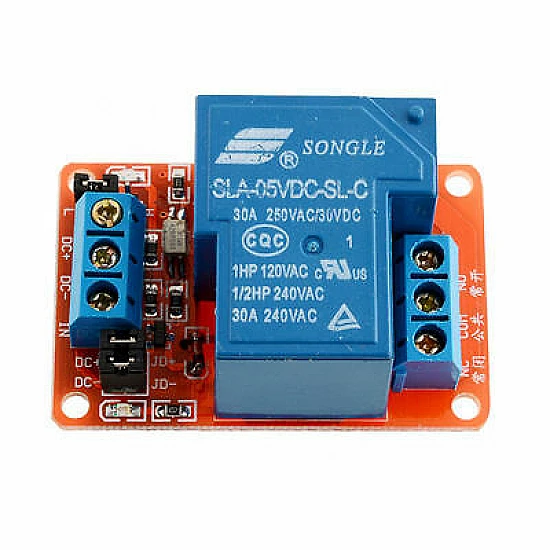

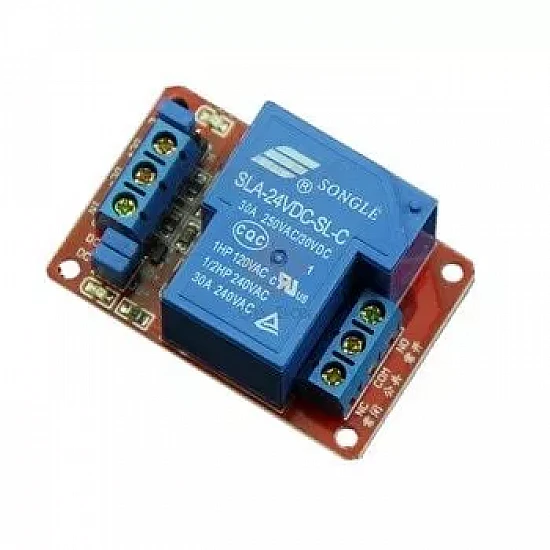

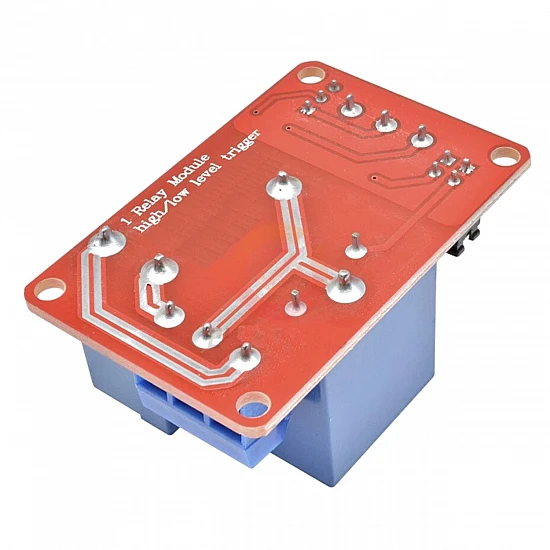

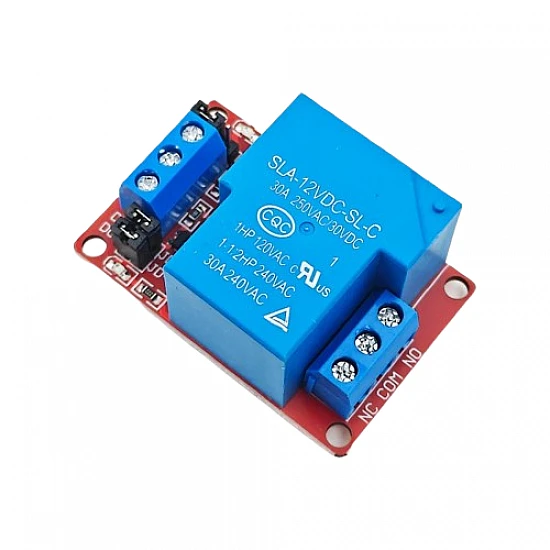

FC65 12V 30A DC Optocoupler Isolated Relay Module
₹219
₹236

(inc GST)

  • Stock: Out Of Stock
  • With this product you will receive ₹3 FlyRobo Cashback.
  • SKU: FR-01-512
7 Day Return
Get 7 Day Replacement/Refund on this product
Free shipping
Get free shipping on this product. Buy above ₹ 999 and get free shipping.
COD Available
Get this product with Cash at the time of Delivery
Support
Get best after-sale support From our Technical team with different Tutorials

30A relay module, normally open interface maximum load: AC 250V/30A, DV 30V/30A. Optical coupling isolation, driving ability is strong, stable performance. Trigger current is 5mA. The module can be set high level or low-level trigger by the jumper. Power indicator light (green), relay status indicator light (red).

Technical Features:

  • Voltage version:12V
  • The static current:5mA
  • Working current:80mA
  • Trigger current:2-4mA
  • Module Size:50mm*33mm*24mm

Module interface specifications:

  • DC +: DC power supply positive pole
  • DC-: DC power supply negative pole
  • IN: signal triggering pin
  • JD+ : relay control voltage positive
  • JD-: relay control voltage negative
  • DC+ and JD+ shorted by jumper cap, DC- and JD- shorted with jumper cap, it is the same voltage between trigger terminal and relay control terminal
  • High and low-level trigger mode selection. Jumper and L pin connection, IN pin, is low-level trigger Jumper and H pin connection, IN pin, is a high level trigger
  • Normally closed pin (NC): relay normally closed pin
  • Common pin (COM): relay common pin
  • Normally opened pin (NO): relay normally opened pin

Package Content:

1 x FC65 12V 30A DC Optocoupler Isolated Relay Module
