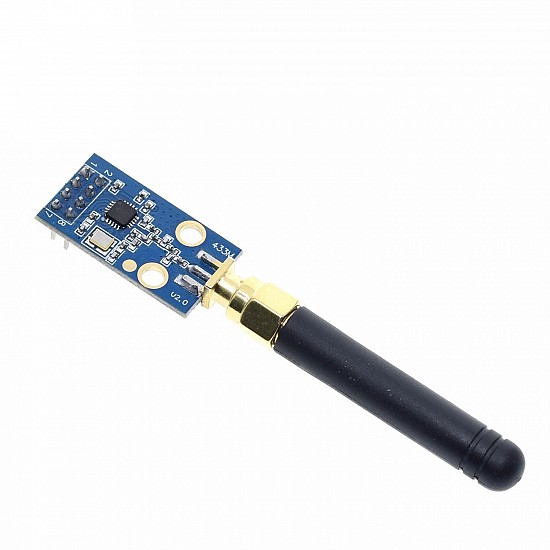

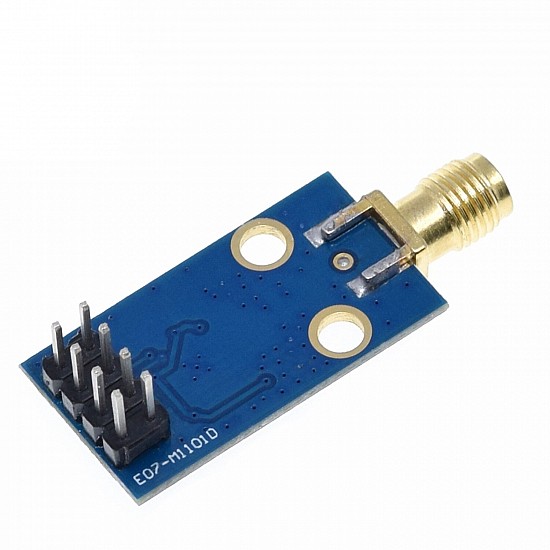

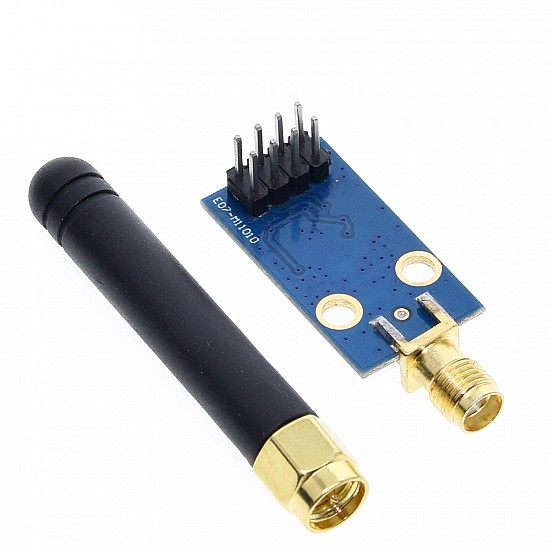

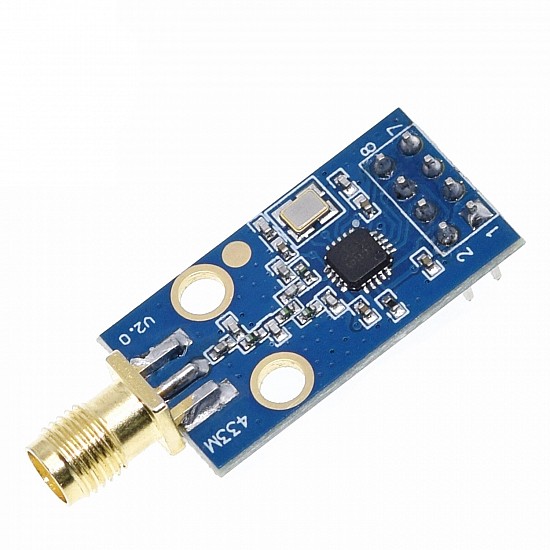

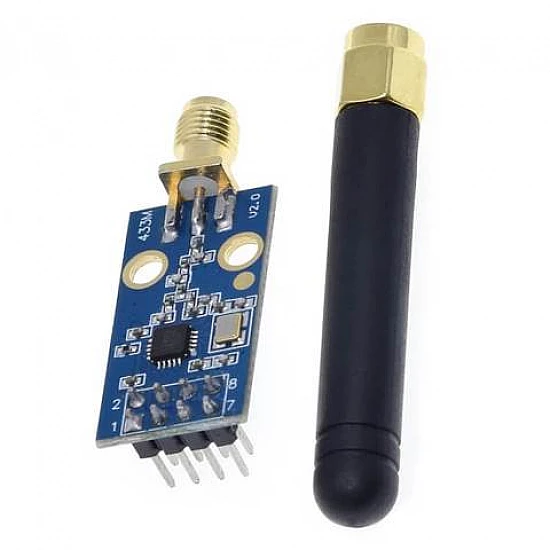

CC1101 SMA Antenna Wireless Transceiver Module

CC1101 SMA Antenna Wireless Transceiver Module
CC1101 SMA Antenna Wireless Transceiver Module
CC1101 SMA Antenna Wireless Transceiver Module
CC1101 SMA Antenna Wireless Transceiver Module
CC1101 SMA Antenna Wireless Transceiver Module
CC1101 SMA Antenna Wireless Transceiver Module
CC1101 SMA Antenna Wireless Transceiver Module
CC1101 SMA Antenna Wireless Transceiver Module
CC1101 SMA Antenna Wireless Transceiver Module
CC1101 SMA Antenna Wireless Transceiver Module
CC1101 SMA Antenna Wireless Transceiver Module
CC1101 SMA Antenna Wireless Transceiver Module

CC1101 SMA Antenna Wireless Transceiver Module
₹599

(inc GST)

  • Stock: In Stock
  • With this product you will receive ₹5 FlyRobo Cashback.
  • SKU: FR-01-116

CC1101  is mainly intended for the ISM (Industrial, Scientific, and Medical) and SRD (Short Range Device) frequency bands at 868 MHz, but can easily be programmed for operation at other frequencies in the 779-928 MHz bands. It is designed for very low-power wireless applications.

Features:

  • Low power consumption
  • SPI interface.
  • Support RSSI signal strength detection and carrier sense function
  • Minimum operating speed 1.2kbps, the highest 500kbps
  • Programmable output power, for all the support frequencies up to +10 dBm
  • Built-in hardware CRC error detection ensures reliable data transmission
  • Separate  64-byte RX and TX data FIFO buffer

Package Includes:

1 x CC1101 SMA Antenna Wireless Transceiver Module.

Technical

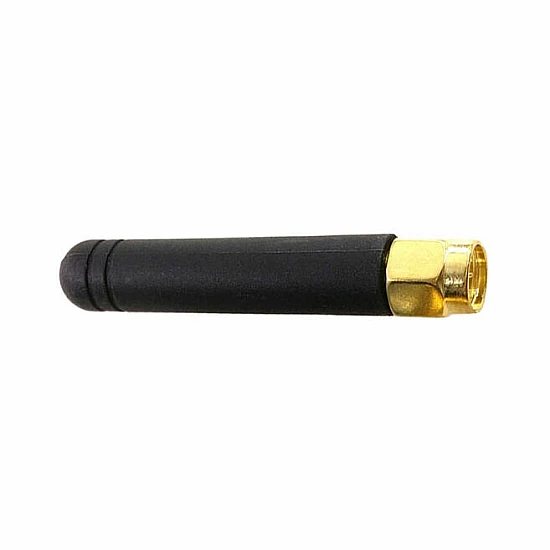

Antenna Length

2 inch

Antenna Type

SMA

Operating Frequency

387-464MHZ

Transmit Power

10mW (+10dBm)

Working Voltage

1.8 - 3.6V

Length

38 mm

Height

2.5 mm

Width

16 mm
