Arduino Pro Mini

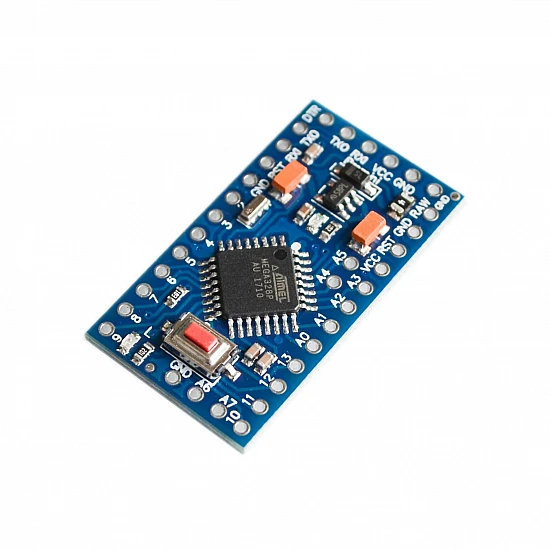

 The Arduino Pro Mini is a microcontroller board based on the ATmega168. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 8 analog inputs, an on-board resonator, a reset button, and holes for mounting pin headers.

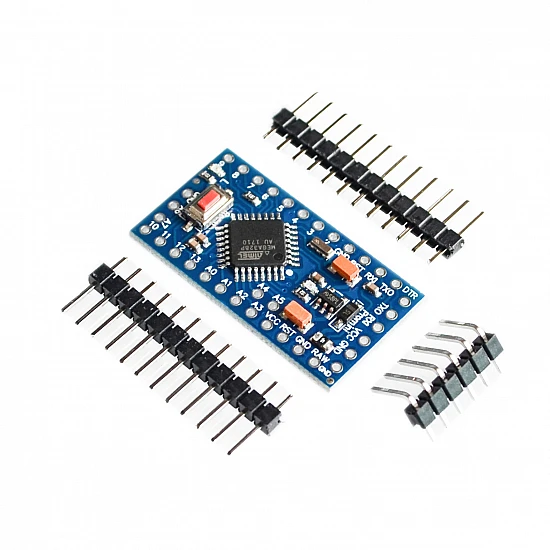

The Arduino Pro Mini is intended for semi-permanent installation in objects or exhibitions. The board comes without pre-mounted headers, allowing the use of various types of connectors or direct soldering of wires. The pin layout is compatible with the Arduino Mini.


Specification:

Microcontroller: ATmega168

Operating Voltage:5V

Input Voltage:5 - 12 V (5V model)

Digital I/O Pins: 14 (of which 6 provide PWM output)

Analog Input Pins: 8

DC Current per I/O Pin: 40 mA

Flash Memory: 16 KB (of which 2 KB used by bootloader)

SRAM: 1 KB

EEPROM: 512 bytes

Clock Speed: 16 MHz
