Arduino Uno with LCD and Keypad

Arduino Uno with LCD and Keypad
Arduino Uno with LCD and Keypad
Arduino Uno with LCD and Keypad
Arduino Uno with LCD and Keypad
Arduino Uno with LCD and Keypad
-44 %
Arduino Uno with LCD and Keypad
Arduino Uno with LCD and Keypad
Arduino Uno with LCD and Keypad
Arduino Uno with LCD and Keypad
Arduino Uno with LCD and Keypad
Arduino Uno with LCD and Keypad
₹888
₹1,599

(inc GST)

  • Stock: In Stock
  • SKU: FRC-01-486

Arduino UNO-based kit provides an open-source electronics prototyping platform based on flexible, easy-to-use hardware and software. It contains all of the essential components required to start programming with the Arduino Uno board.

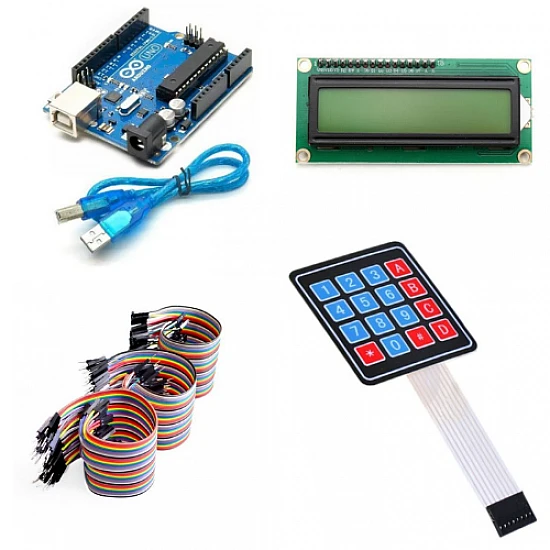

This combo includes Arduino Uno with cable, 4x4 membrane keypad, 16x2 LCD Display, 3 types of Jumper Wires.

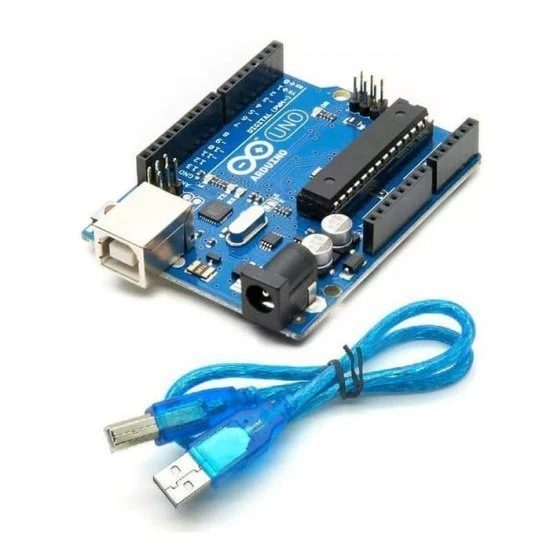

Arduino Uno R3 Compatible Board is a microcontroller board that is based on the ATmega328. Arduino Uno has 14 digital input or output pins(where 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header, and a reset button. It has everything needed to support the microcontroller, you need to simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.

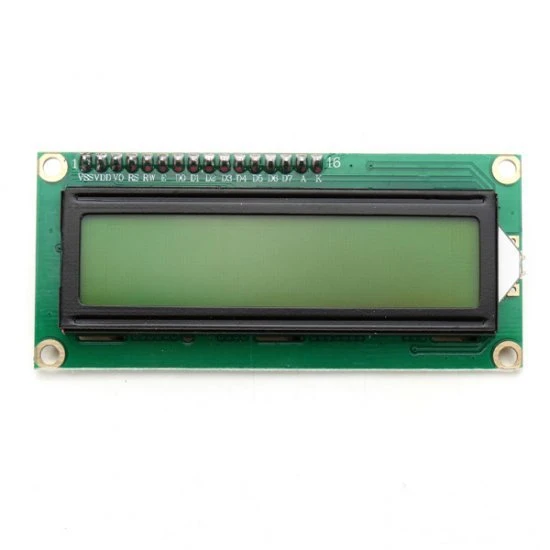

LCD1602 Parallel LCD Display provides a simple and cost-effective solution for adding a 16×2 White on RGB Liquid Crystal Display into your project. The display is 16 character by 2 line display that has a very clear and high contrast.

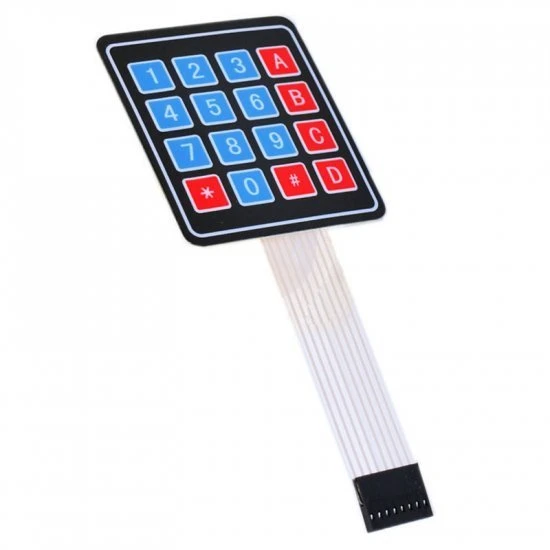

Matrix Keypad 4 X 4 has 16 buttons, arranged in a telephone-line 3x4 grid with a column of 4 characters (A, B, C, and D). The keys are connected into a matrix, hence only 8 microcontroller pins (4-columns and 4-rows) are required to scan the pad.

Applications:

  • Security System
  • Calculator
  • Device Control

Package Includes:

1 x Arduino UNO R3 Compatible Development Board

1 x USB Cable for Arduino UNO

1 x LCD Display Module Screen For Arduino

1 x 16 Keys 4x4 Matrix - Membrane Type Keypad

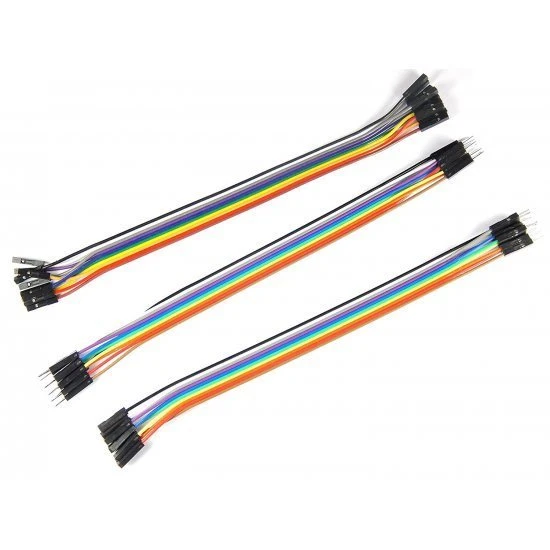

1 x Male To Male Jumper Cable Wire- 10pcs

1 x Male To Female Jumper Cable Wire - 10pcs

1 x Female To Female Jumper Cable Wire -10pcs

LCD Display
Back Light

Green

Character Color

Black

Characters

16

Model

LCD1602

Membrane Keypad
Contact Resistance

500 Ω

Dielectric Strength

250VRms

Insulation resistance

100 MΩ

Operating current

0.1 A

Operating Voltage

35V

Technical
Microcontroller

ATmega328

Analog I/O Pins

6

Clock Speed

16 MHz

Digital I/O Pins

14 (of which 6 provide PWM output)

EEPROM

1 KB

Flash Memory

32 KB of which 0.5 KB used by the bootloader

Input Voltage

7-12V

Operating Voltage

5V
