AM2120 adopts a single bus communication mode and a standard single bus interface, which makes system integration easy and quick. Ultra-small size, extremely low power consumption, the signal transmission distance can reach more than 20 meters, making it the best choice for all kinds of applications and even the most demanding applications. By directly outputting digital information such as humidity, temperature, and calibration after temperature compensation, users can get an accurate temperature and humidity information without secondary calculation of digital output and temperature compensation of humidity.
The product is 4 leads, easy to connect, special packaging forms can be provided according to user needs. The sensor consists of a capacitive humidity sensor and a high accuracy integrated temperature sensor connected to a high-performance microprocessor.
- Complete interchange
- Low cost
- Long-term stability
- Relative Humidity and Temperature Measurement
- Extra Long Signal Transmission Distance
- Accurate calibration
- Very low power consumption
- Standard single bus digital interface.
Package Includes :

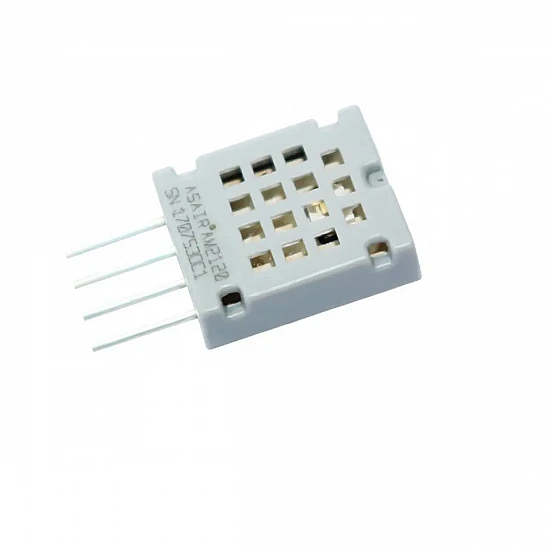

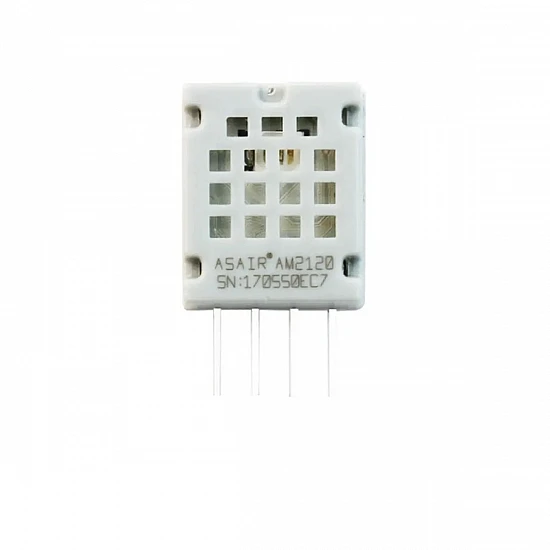

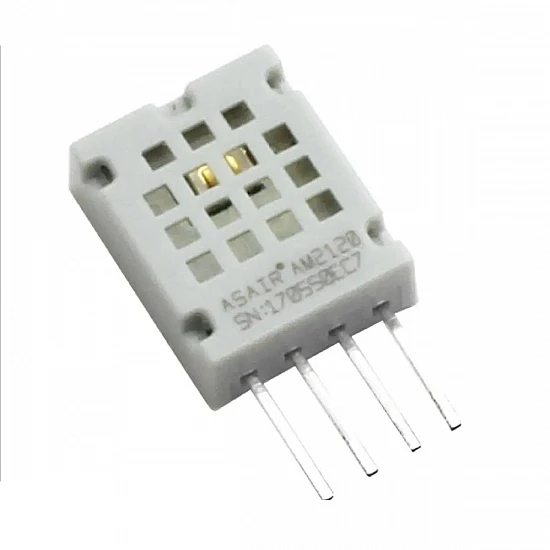

- 1 x AM2120 Capacitive Digital Temperature and Humidity Sensor Composite Module
|Humidity measurement accuracy||3% RH|
|Humidity measurement range||0-99.9% RH|
|Temperature measurement accuracy||0.5 ℃|
|Temperature measuring range||- 40 to +80 ℃|
|Type||Digital Thermometer and Hygrometer|
|Dimensions (LxWxH)||1.5x1.21x0.45 (cm)|
