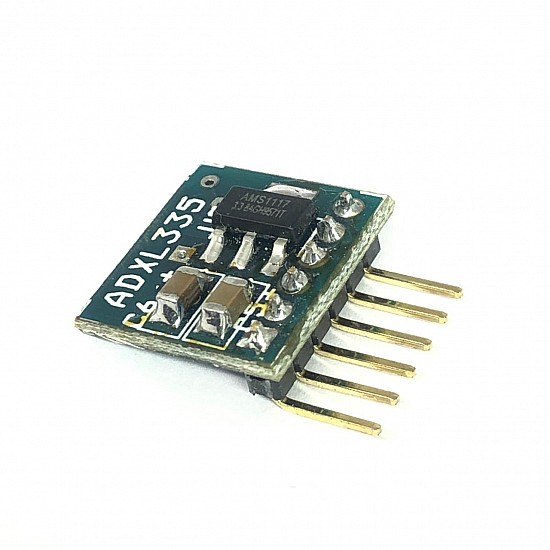

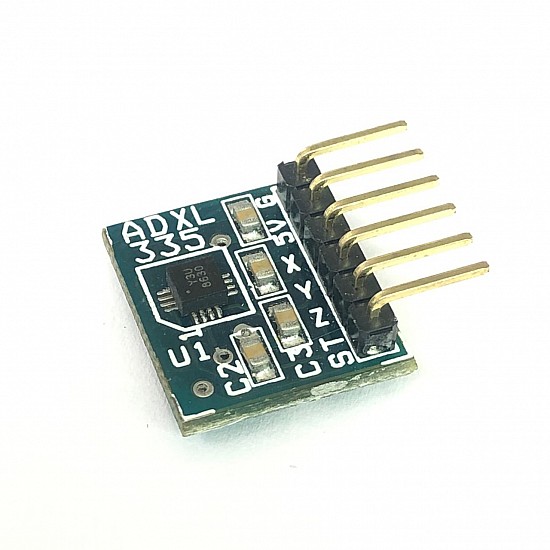

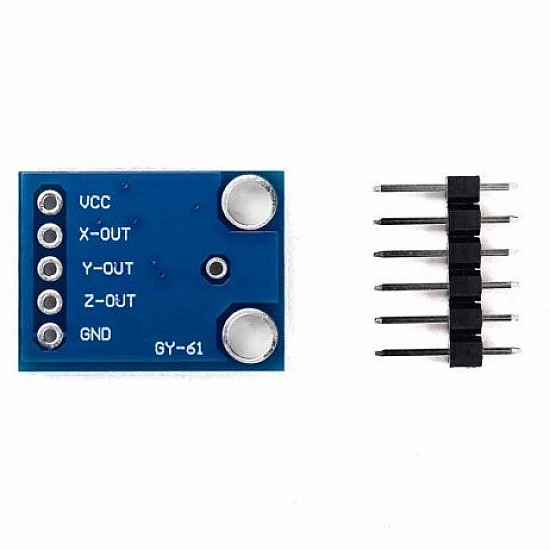

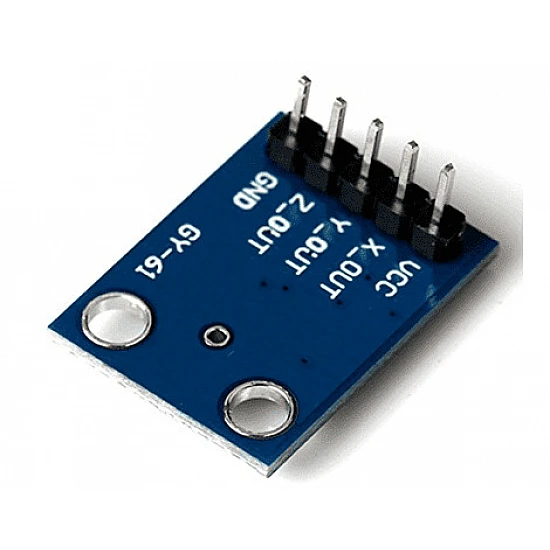

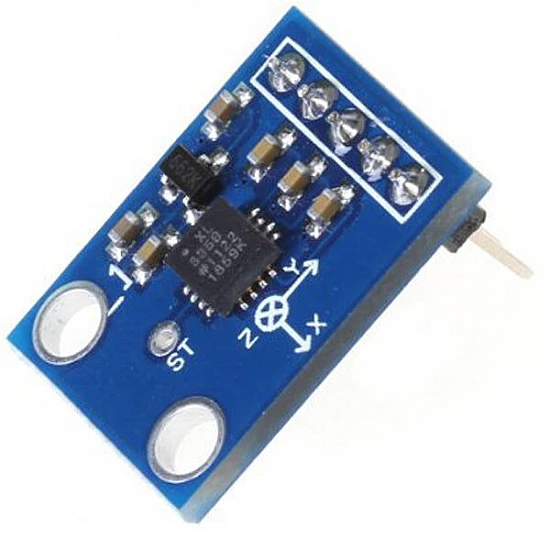

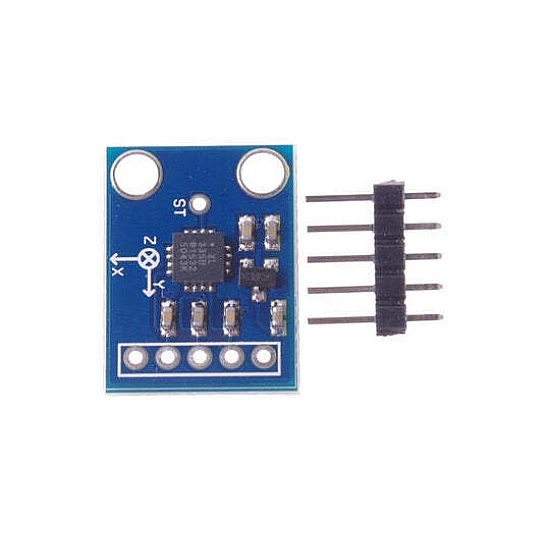

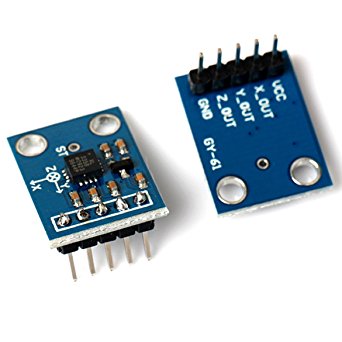

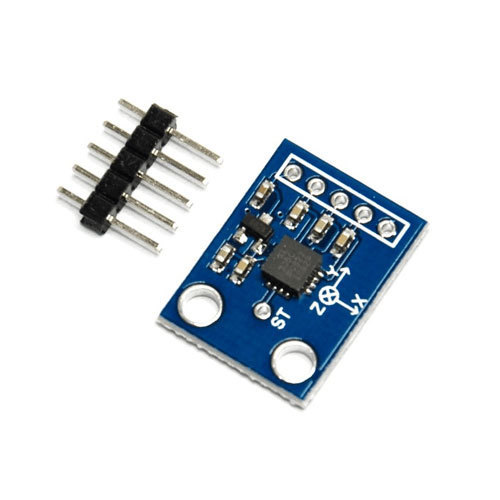

ADXL335 Module - 3 Axis Accelerometer - Analog Output

The ADXL335 is low power, a complete 3-axis accelerometer with signal conditioned voltage outputs. The ADXL335 Module is a 3-axis Analog Output Accelerometer measures acceleration with a minimum full-scale range of ±3 g. It can measure the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion, shock, or vibration. This breakout board comes with an onboard voltage regulator and works at both 3.3V & 5V (3-5V). An accelerometer is an electro-mechanical device that will measure acceleration forces. These forces may be static, like the constant force of gravity pulling at your feet, or they could be dynamic – caused by moving or vibrating the accelerometer.


Applications :

  • FPV, RC, and Robots systems
  • GPS navigation systems
  • Impact recognition and logging
  • Gaming and virtual reality input devices
  • Motion-activated functions
  • Intelligent power saving for handheld devices
  • Vibration monitoring and compensation

 Features :

  • Simple 5 pin interface (VCC, GND, Xout, Yout, Zout, Self Test)
  • Needs no external components
  • Easy to mount on General purpose PCB, Breadboards, and special PCBs
  • High Sensitivity for small movements
  • Fast Turn-On Time
  • Integral Signal Conditioning with Low Pass Filter
  • Robust Design, High Shocks Survivability
  • Build-in ultra-low noise linear LDO voltage regulator
  • Can be interfaced with 3.3V or 5V Microcontroller.
  • All necessary Components are populated.
  • Tap/Double Tap Detection
  • Free-Fall Detection
  • Analog output
  • Built-in onboard filters, which reduce noise from the motor and other high current electronics
  • Power LED
  • Build in the Logic level converter for I2C
  • Ultra-Low Power: 40uA in measurement mode, 0.1uA in standby@ 2.5V
  • Low Voltage Operation: 5V
  • Low Current Consumption: 500 μA


Package Content:

1 x ADXL335 Module
