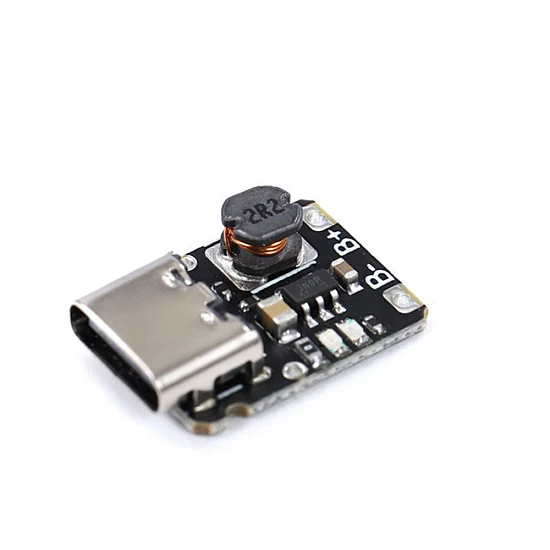

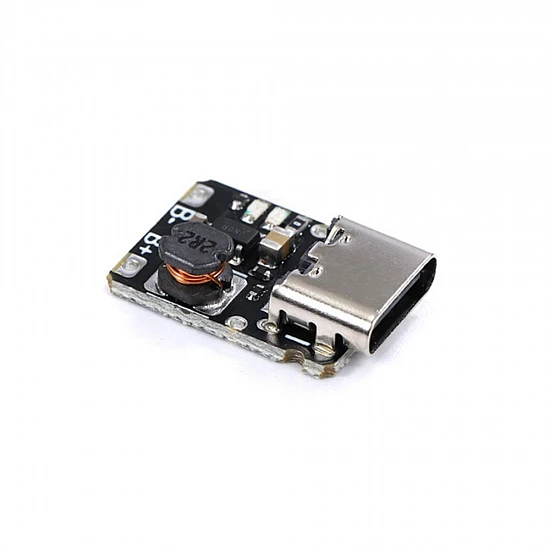

5V Charge Discharge Integrated Boost Module Type-C

The 5V Charge/Discharge Integrated Boost Module is an ultra-compact, high-efficiency power management solution designed for 3.7V and 4.2V 18650 Lithium-ion batteries. This miniature board integrates a linear lithium battery charger, a synchronous boost converter, and comprehensive battery protection circuitry into a single, space-saving design. Featuring a modern Type-C input interface, it allows you to charge your battery and step up the output to a stable 5V DC simultaneously, making it an ideal choice for DIY power banks and portable electronics.

This module is highly compatible with microcontrollers like Arduino, ESP32, and Raspberry Pi Pico, providing a reliable 5V power source from a single lithium cell. Its tiny footprint and lightweight design make it perfect for wearable tech, IoT sensor nodes, smart home devices, and custom battery-powered hardware projects where space is at a premium.

Features:

• Integrated Design: Combines charging, synchronous boosting, and battery protection on a single micro-sized PCB.
• Type-C Interface: Equipped with a robust Type-C female port for convenient charging input.
• Stable 5V Output: Steps up single-cell lithium battery voltage (3.7V/4.2V) to a regulated 5V DC output.
• Built-in Protection: Features overcharge, over-discharge, and short-circuit protection to safeguard your 18650 cells.
• High Efficiency: Synchronous rectification boost converter ensures high conversion efficiency and minimal heat generation.
• Ultra-Compact Footprint: Extremely small size allows easy integration into tight enclosures and DIY projects.

Package Includes:

1 x 5V Charge/Discharge Integrated Boost Module Type-C
