5S 100A 16V-Class LiFePO4 Protection Board with Equalization - 5-Pin

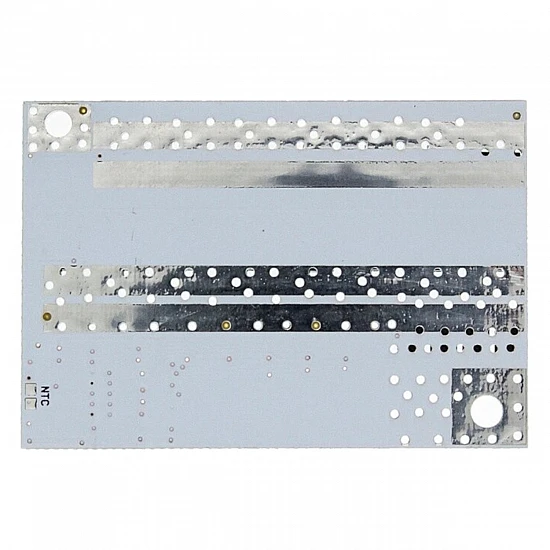

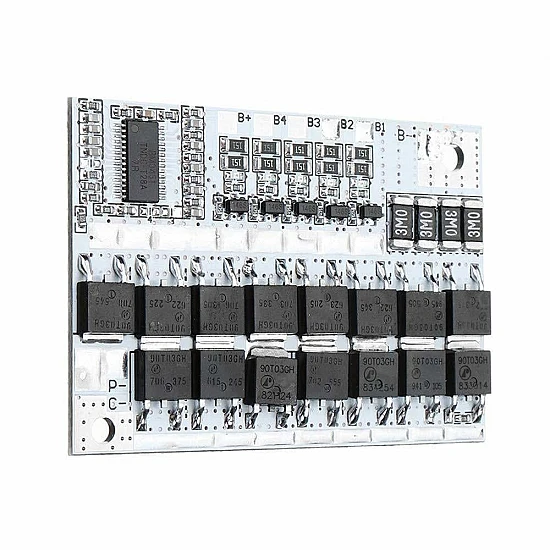

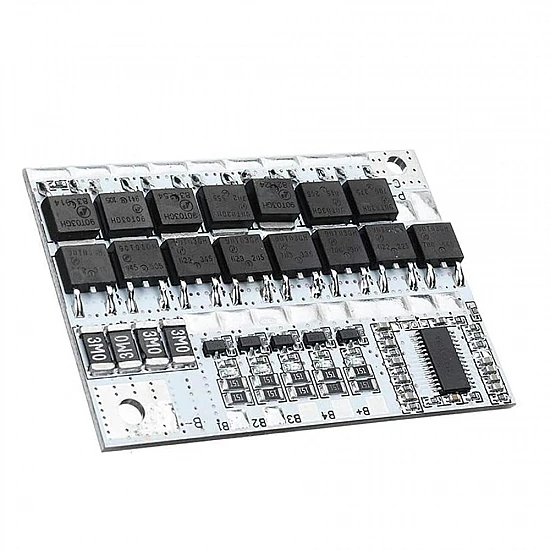

This 5S 100A Protection Board is a high-power Battery Management System (BMS) designed for 5-series Lithium Iron Phosphate (LiFePO4) battery packs. While often categorized in the 16V power class, this 5-cell configuration provides a robust 16V nominal output, making it ideal for high-performance automotive upgrades, solar storage, and industrial equipment. It supports a massive 100A continuous discharge current, enabled by high-specification MOSFETs and a thickened copper PCB. The integrated equalization circuit ensures each of the 5 polymer LFP cells remains balanced during charging, preventing individual cell overvoltage and extending total pack life. The board features comprehensive safety protocols for overcharge, over-discharge, and short-circuit protection, and includes a 5-pin balance cable for easy installation.

Key Features:

• Extreme 100A Discharge: Engineered for heavy-duty loads such as inverters and high-torque motors.
• 5-Cell (5S) Management: Specifically tuned for the 16V nominal voltage of five LiFePO4 cells.
• Integrated Equalization: Active/Passive balancing ensures all cells reach full capacity simultaneously.

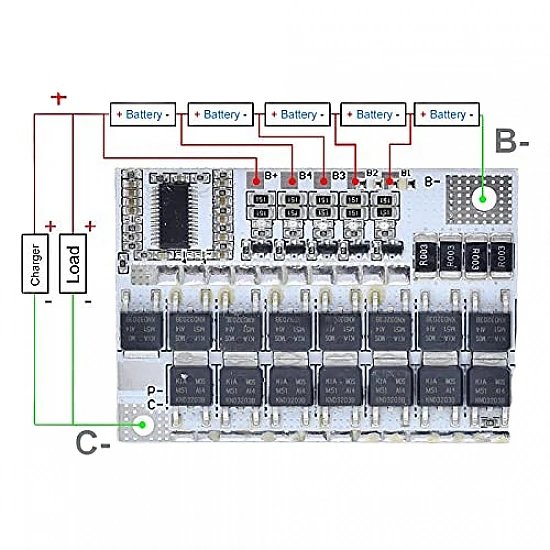

• 5-Pin Balance Interface: Simplified wiring with a dedicated sensing harness for all 5 cells.
• High-Efficiency Protection: Reliable safeguards against over-current and thermal events.

Package Includes:

1 x 5S 100A 16V-Class LiFePO4 Protection Board with Equalization - 5-Pin
