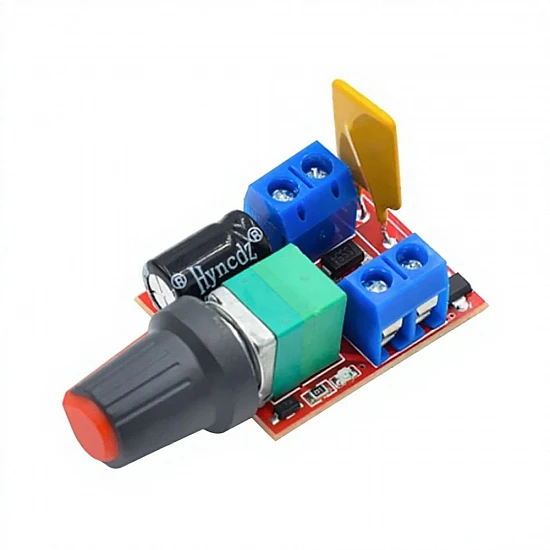

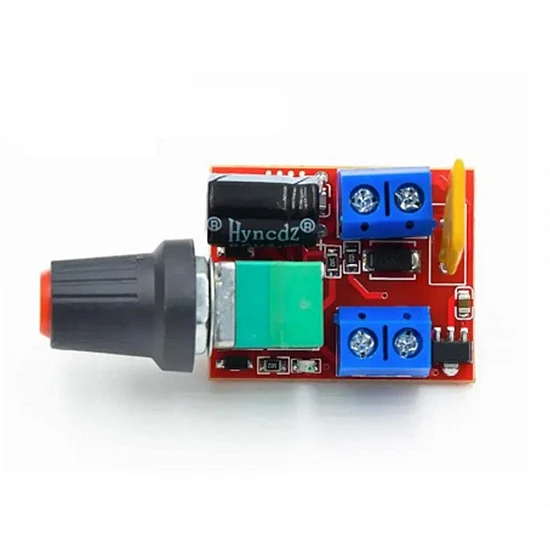

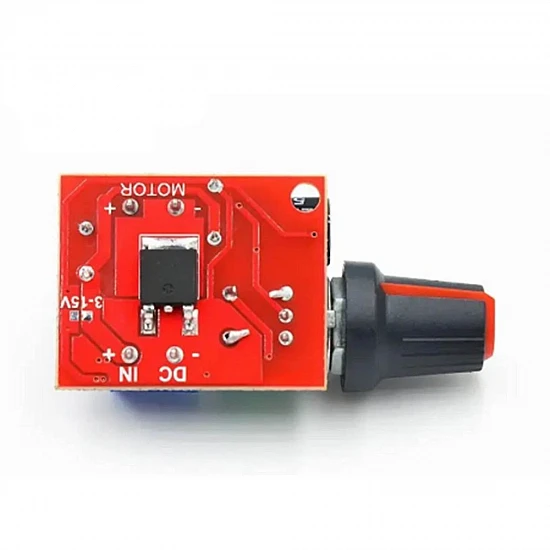

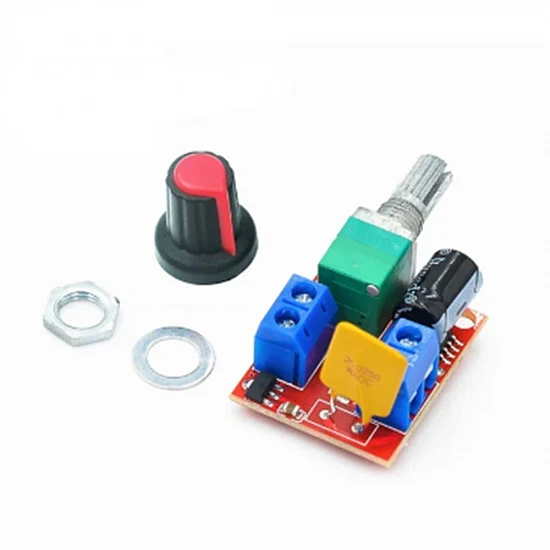

5A 3V-35V Mini DC Motor PWM Speed Controller & LED Dimmer

The 5A Mini DC Motor PWM Speed Controller is an ultra-compact and highly efficient module designed to provide smooth, stepless speed regulation for small DC motors and brightness control for LEDs. Operating across a wide voltage range of 3V to 35V DC, this versatile board utilizes Pulse Width Modulation (PWM) technology to minimize power loss while delivering a continuous current of up to 5A. It is the perfect solution for makers and hobbyists needing precise control in space-constrained DIY projects.

Whether you are building custom miniature RC vehicles, designing automated robotics, or creating adjustable LED lighting setups, this mini controller seamlessly integrates into your circuit diagram. The intuitive rotary potentiometer allows for fine-tuned adjustments, while the robust onboard screw terminals ensure quick and secure wiring connections to your power supply and load without the need for complex microcontroller programming or Arduino code.

Features:

• Ultra-Compact Design: Space-saving footprint allows for easy installation in tight enclosures and small robotic chassis.
• Wide Voltage Compatibility: Supports a broad input voltage range from 3V up to 35V DC.
• High Current Handling: Capable of delivering up to 5A of continuous output current for demanding miniature motors.
• High-Efficiency PWM: Provides smooth, stepless speed and dimming control with excellent thermal performance.
• Dual Application: Perfectly suited for both DC motor speed regulation and LED strip dimming.
• Secure Connections: Features reliable, easy-to-use screw terminals for fast power and load wiring.

Package Includes:

1 x 5A 3V-35V Mini DC Motor PWM Speed Controller
