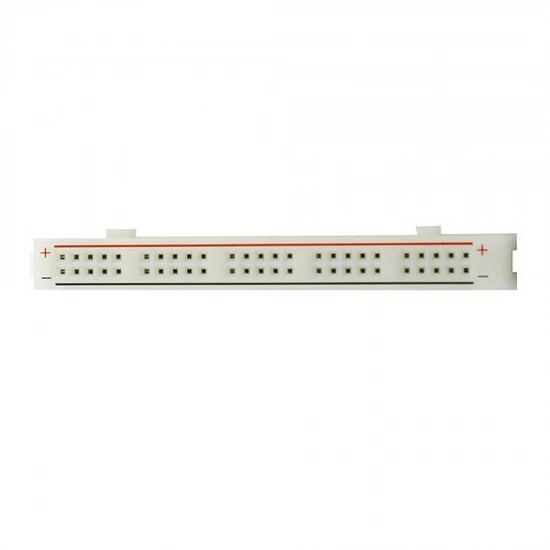

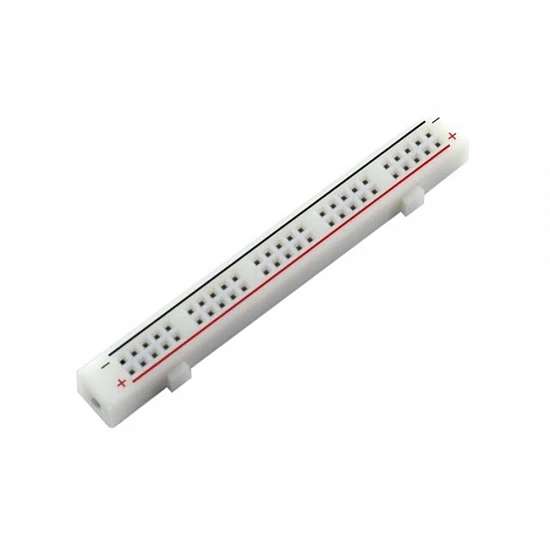

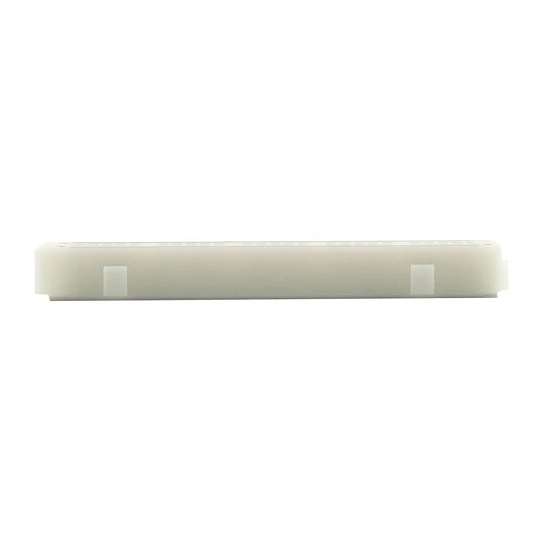

50-Hole Mini Breadboard Power Distribution Strip White

The 50-Hole Mini Breadboard Power Distribution Strip in White is a highly compact and modular prototyping solution designed to simplify power routing in your electronic circuits. Featuring two parallel rails of 25 interconnected tie-points each, this mini breadboard is specifically engineered to act as a dedicated VCC and GND distribution hub. It solves the common problem of cluttered power lines on primary breadboards, allowing makers and engineers to maintain clean, organized, and reliable circuit layouts.

This experimental board is fully compatible with standard microcontrollers like Arduino, ESP32, Raspberry Pi, and MSP430. It features interlocking side tabs that allow you to snap multiple units together or attach them directly to the sides of larger compatible breadboards. Equipped with a strong self-adhesive backing, it can be securely mounted onto robot chassis, project enclosures, or 3D-printed prototypes, making it an indispensable tool for compact IoT builds and student laboratory experiments.

Features:

• 50 Tie-Points: Configured as two independent, parallel distribution rails of 25 holes each, perfect for positive and negative power lines.
• Clear Polarity Markings: Features bright red (+) and blue (-) color-coded lines to prevent reverse polarity connections and short circuits.
• Modular Interlocking Tabs: Built-in side keys allow seamless mechanical connection to other mini breadboards or main prototyping boards.
• Standard 2.54mm Pitch: Fully compatible with standard solid-core hookup wires, DuPont jumper cables, and male header pins.
• Self-Adhesive Backing: Includes double-sided peel-and-stick tape on the bottom for quick and secure mounting on flat surfaces.
• Durable Construction: Made from high-quality ABS plastic with internal nickel-plated phosphor bronze spring clips for reliable electrical contact over multiple insertion cycles.

Package Includes:

1 x 50-Hole Mini Breadboard Power Distribution Strip (White)
