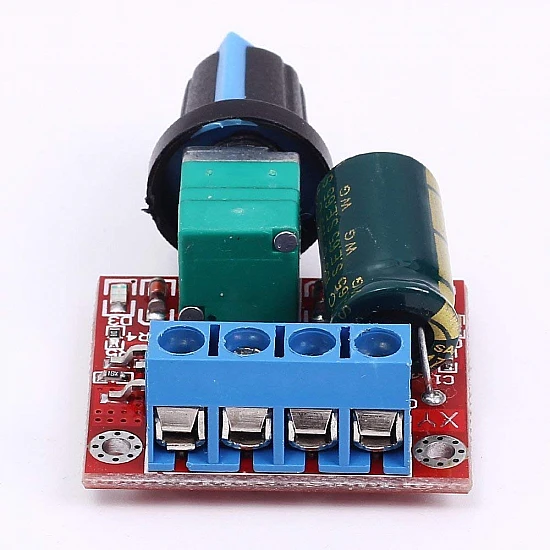

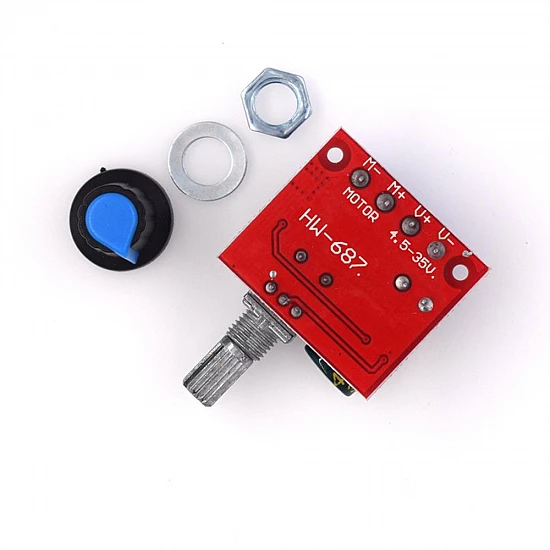

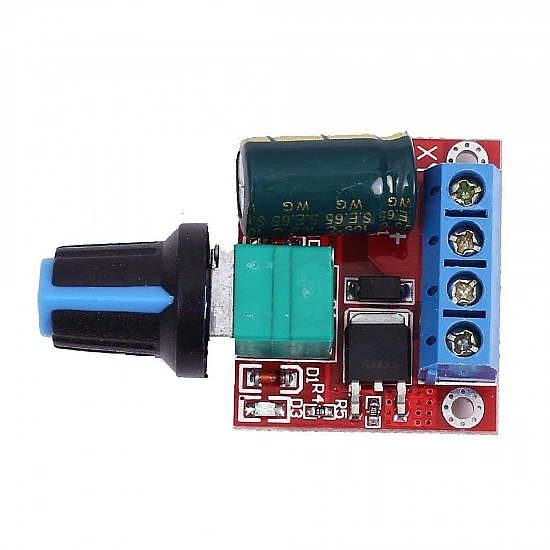

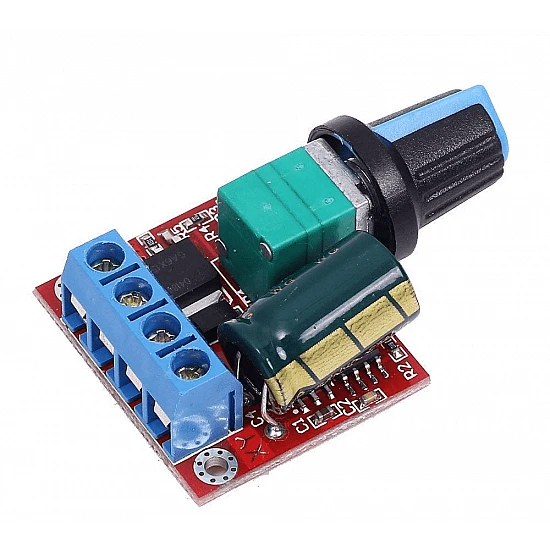

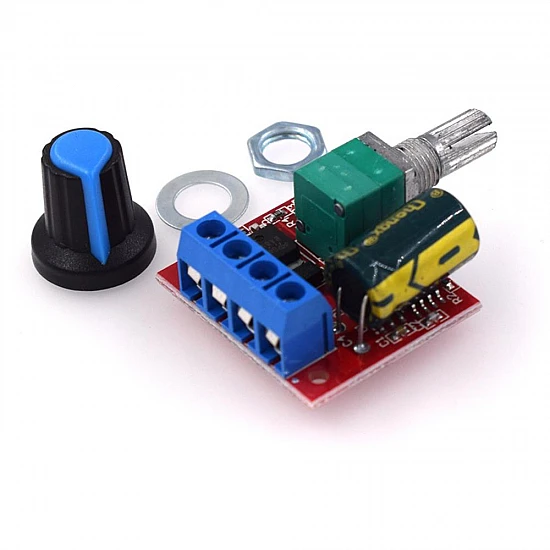

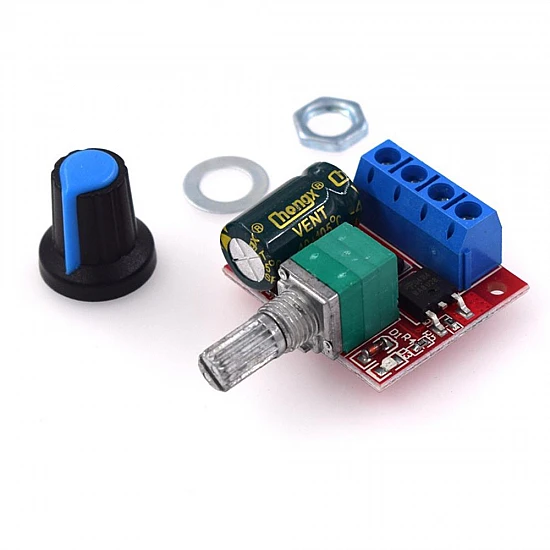

4.5-35V 5A PWM Adjustable DC Motor Speed Regulator Control Governor Switch module

4.5-35V 5A PWM Adjustable DC Motor Speed Regulator Control Governor Switch module
4.5-35V 5A PWM Adjustable DC Motor Speed Regulator Control Governor Switch module
4.5-35V 5A PWM Adjustable DC Motor Speed Regulator Control Governor Switch module
4.5-35V 5A PWM Adjustable DC Motor Speed Regulator Control Governor Switch module
4.5-35V 5A PWM Adjustable DC Motor Speed Regulator Control Governor Switch module
4.5-35V 5A PWM Adjustable DC Motor Speed Regulator Control Governor Switch module
-76 %
4.5-35V 5A PWM Adjustable DC Motor Speed Regulator Control Governor Switch module
4.5-35V 5A PWM Adjustable DC Motor Speed Regulator Control Governor Switch module
4.5-35V 5A PWM Adjustable DC Motor Speed Regulator Control Governor Switch module
4.5-35V 5A PWM Adjustable DC Motor Speed Regulator Control Governor Switch module
4.5-35V 5A PWM Adjustable DC Motor Speed Regulator Control Governor Switch module
4.5-35V 5A PWM Adjustable DC Motor Speed Regulator Control Governor Switch module
4.5-35V 5A PWM Adjustable DC Motor Speed Regulator Control Governor Switch module
₹70
₹289

(inc GST)

  • Stock: In Stock
  • SKU: FR-01-531
    10 or more ₹66
    50 or more ₹65

PWM DC Motor Speed Controller allows controlling the speed of a motor with fully adjustable 0%-100%. The motor speed controller can easily provide a continuous current of 3A to your DC motor or other DC load. It controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM).

The DC Motor PWM Speed Regulator 3V 6V 12V 24V 35V  5A speed control switch function for DC Motors.

Features:

  • Using this Motor Control high voltage and high current recovery fuse.
  • The fuse is automatically cut off over-flow And the fuse is recovered for several seconds, almost no need to change the fuse.
  • Adjusting the pot knob can change the speed of the governor and change the speed of the motor.

Application:

  • It is Suitable for water heater, thermal, lighting dimmer, small motor speed, etc. It Can not connect directly to AC.

Package Includes:

1 x 4.5-35V 5A PWM Adjustable DC Motor Speed Regulator.

Technical
Operating Voltage

4.5-35V

Output Current

0-5A

Output Power

90W max

PWM Duty Cycle

1% -100%

PWM Frequency

20 kHz

Dimensions (LxWxH)

30mm x 26mm x 14mm (Without Handle)
