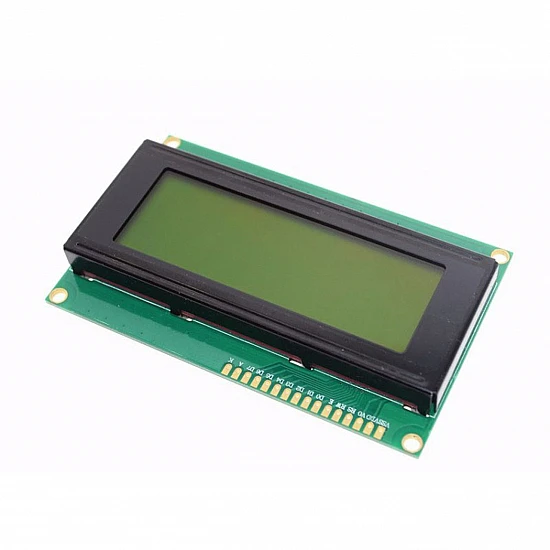

20X4 Parallel LCD Display with Green Backlight - LCD2004

20X4 Parallel LCD Display with Green Backlight - LCD2004 - Sensor - Arduino
20X4 Parallel LCD Display with Green Backlight - LCD2004 - Sensor - Arduino
20X4 Parallel LCD Display with Green Backlight - LCD2004 - Sensor - Arduino
20X4 Parallel LCD Display with Green Backlight - LCD2004 - Sensor - Arduino

20X4 Parallel LCD Display with Green Backlight - LCD2004
₹299

(inc GST)

  • Stock: In Stock
  • With this product you will receive ₹2 FlyRobo Cashback.
  • SKU: FR-01-627

This is a basic 20 character by 4 line display. Interface code is freely available. You will need ~11 general I/O pins to interface to this LCD screen. Includes LED backlight.

If you want to add some visual output to your Arduino projects, you’ll need a display. If you need moderate data on display, the LCD2004 Parallel LCD Display is a quite good solution for Arduino projects.

This is an industry-standard JHD629-204A based controlled 4 lines x 20 characters LCD display with Black characters on Green background. It is a parallel interface so you will need 7 pins for 4-bit mode or 11 pins for 8-bit mode to interface to this LCD screen.

Features and Specifications:

  • Wide viewing angle and high contrast.
  • Industry-standard JHD629-204A equivalent LCD controller built-in.
  • Supported 4 or 8-bit parallel interface.
  • Operate with 5V DC.
  • Interface with 16 pins male header Connector.
  • 20 characters wide, 4 rows
  • Black text on the green background
  • The module can easily interface with an MCU
  • The module is a low-power consumption character LCD Module with a built-in controller
  • Single LED backlight included can be dimmed easily with a resistor or PWM.
  • Can be fully controlled with only 6 digital lines! (Any analog/digital pins can be used)

Package Includes:

1 x 20X4 Parallel LCD Display with Green Backlight

Technical
Model

LCD2004

Backlight

Green

Character Color

Black

Characters

20

Input Voltage

5 V

Length

6 cm

Height

1.2 cm

Width

9.8 cm
