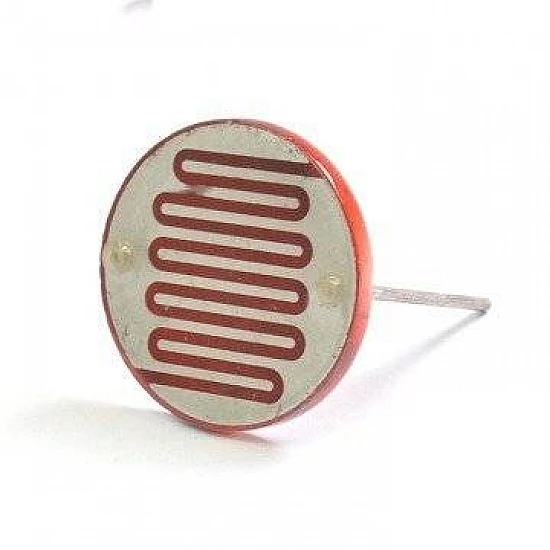

20mm Photosensitive LDR Sensor

20mm Photosensitive LDR Sensor
20mm Photosensitive LDR Sensor
20mm Photosensitive LDR Sensor
20mm Photosensitive LDR Sensor
20mm Photosensitive LDR Sensor
₹39

(inc GST)

  • Stock: In Stock
  • SKU: FR-01-516

If you need a way to sense the level of ambient light then there is no easier way to do it without an LDR/photo-resistor. The resistance of Light Sensitive Photoresistor LDR changes with the change in the ambient light exposure on the surface of the sensor. Light Dependent Resistor is a type of photocell that finds excellent use in light sensing device applications, whether it is automatic outdoor light ON/OFF switch or an indoor automatic light switch.

Two Cadmium Sulphide PhotoConductive Cells with spectral responses similar to that of the human eye. Cell resistance falls with increasing light intensity. The 20mm LDR or photoresistor sensor works best in both light and dark regions. The photo-resistors are a staple of electronics.

Applications of this product include smoke detection, automatic lighting control, batch counting, and burglar alarm systems. Furthermore, some of the applications are given below.

  •  Analog Applications:
    • Electronics scales – dual cell
    • Automated rearview mirror
    • Camera exposure control
    • Auto slide focus – dual cell
    • Densitometer
    • Automatic gain control – modulated light source
  • Digital Applications:
    • Position sensor
    • Nightlight control
    • Automatic headlight dimmer
    • Streetlight control
    • Oil burner flame out
  • Other applications:
    • Switch
    •  Annunciator
    • Camera automatic photometry
    • Electronic toy
    • Industrial control
    • Light control lamp

    Features:

    • small size
    • easy to use
    • work as ON/OFF switch
    • Quick Response time

    Package Includes :

    1 x 20mm Light Sensitive Photoresistor LDR.

    Write a review

    Note: HTML is not translated!
    Bad Good
    Technical
    Dark resistance

    max. 2 kΩ

    Diameter

    2 cm

    Light Resistance

    10 – 20 kΩ

    No. of Pins

    2

    Power

    0.5 W (max)

    Spectral Peak

    560 nm

    Voltage

    500 VDC (Max)
