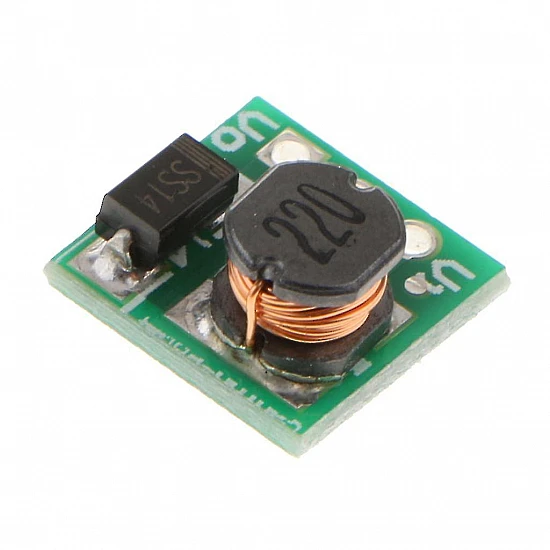

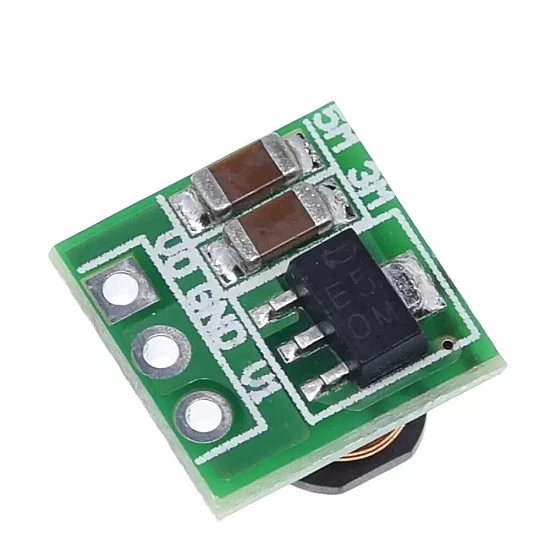

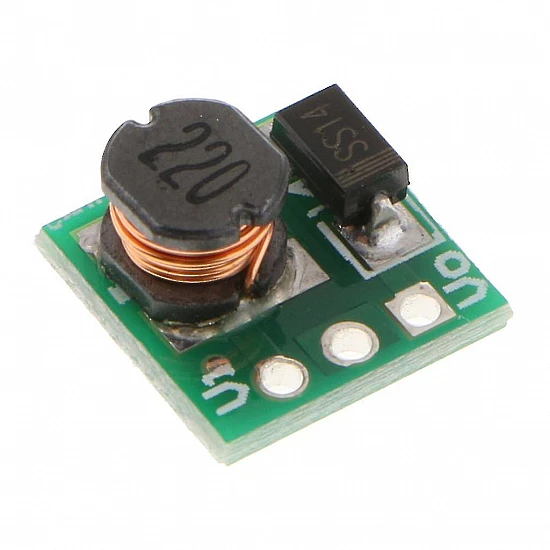

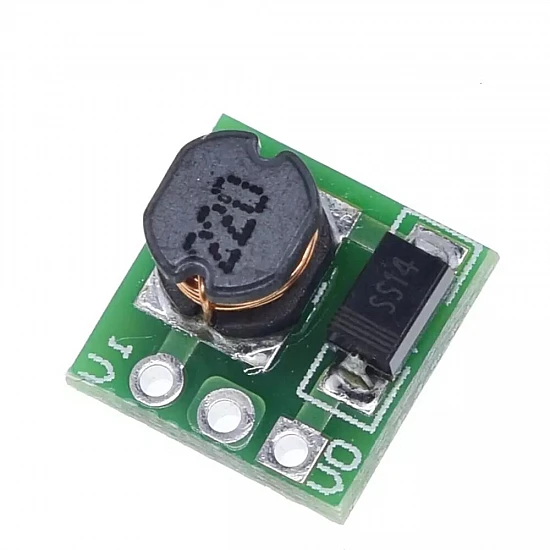

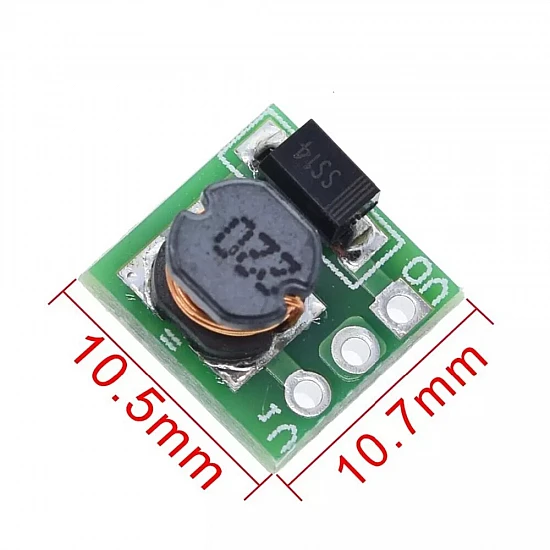

1.5V 1.8V 2.5V 3V 3.3V 3.7V 4.2V to 5V DC-DC DC Boost Converter Step Up Module

This is 1.5V 1.8V 2.5V 3V 3.3V 3.7V 4.2V to 5V DC-DC DC Boost Converter Step-Up Module. It boosts the voltage level and provides the amplified stabilized 5V output.

5V output version:

Starting voltage 0.8V, the output current 7mA

Input 1-1.5V, output 5V, 40-100mA;

Input 1.5-2V, output 5V, 100-150mA;

Input 2-3V, output 5V, 150-380mA;

Input over 3V, output 5V 380-480mA;

Features:

• Voltage boost converter module
• working frequency 150kHz
• For the different input ranges, it consumes a different amount of current to produce a balanced output.
• Package Includes:

1 x 1.5V 1.8V 2.5V 3V 3.3V 3.7V 4.2V to 5V DC-DC DC Boost Converter Step Up Module
