0.56inch 0-100V Three Wire LED Display Digital DC Voltmeter - Red

0.56inch 0-100V Three Wire LED Display Digital DC Voltmeter - Red
0.56inch 0-100V Three Wire LED Display Digital DC Voltmeter - Red
0.56inch 0-100V Three Wire LED Display Digital DC Voltmeter - Red
-50 %
0.56inch 0-100V Three Wire LED Display Digital DC Voltmeter - Red
0.56inch 0-100V Three Wire LED Display Digital DC Voltmeter - Red
0.56inch 0-100V Three Wire LED Display Digital DC Voltmeter - Red
0.56inch 0-100V Three Wire LED Display Digital DC Voltmeter - Red
₹115
₹229

(inc GST)

  • Stock: In Stock
  • ₹1 FlyRobo Cashback.
  • SKU: FR-01-609
    7 or more ₹111
    30 or more ₹108

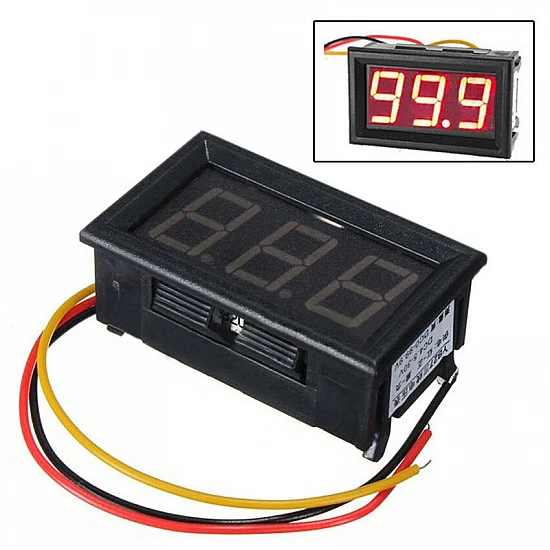

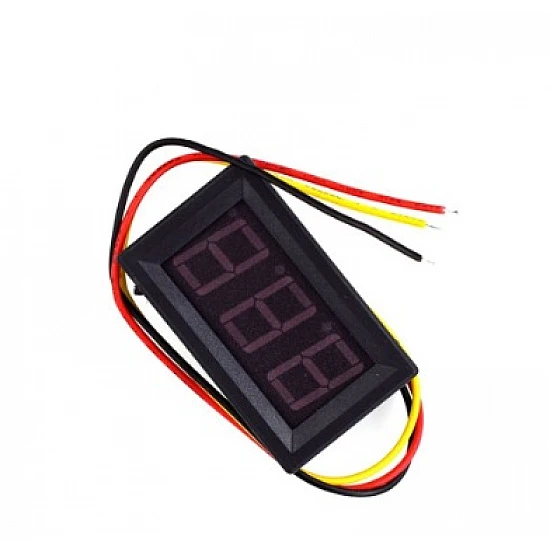

0.56inch 0-100V Three Wire LED Display Digital DC Voltmeter is a tiny and compact digital voltmeter with a RED LED Display.

This voltmeter can be used to measure the storage battery’s voltage up to 100Volts in motorcycles and cars and also can grasp the storage battery’s status.

It also can be used to measure other DC voltage. This voltmeter can operate on versatile 4.5V to 30VDC range is the voltmeter’s maximum operating limited voltage, please leave enough margin (i.e. do not reach up to the last limit which is 30V ) when working, to avoid voltmeter’s permanent damage because of an electrical spark, power supply ripple, or other too high abrupt change of voltage.

It is a very bright and decent LED Display that is ready to measure the dc voltages in the range of 0V to 100V.

Connections:

  • Red Wire: Positive of the Power supply
  • Black Wire: Negative of the Power supply and also used as the negative of the measurement voltage source
  • Yellow/White/Blue: Positive of the measurement voltage source.

Features:

  • Very small and lightweight voltmeter module.
  • Very handy and easy to use.
  • Red LED display.
  • Best operates in the working voltage range of 5V to 24V
  • Recommended (Robulabs) device Operating Voltage: 5V DC
  • Matt finish Display glass makes display Digits more Lucid in the daytime.
  • 100% Brand new and high quality.

Package Includes:

1 x 0.56inch 0-100V Three Wire DC Voltmeter-Red

Technical
Current consumption

≤40 mA

Display LED Color

Red

Operating Temperature Range

-10 to 60°C

Operating Voltage

4.5 - 30 VDC

Voltage Detection Range

1V to 100V DC

Wires

3

Length

48mm

Height

16mm

Width

28mm
