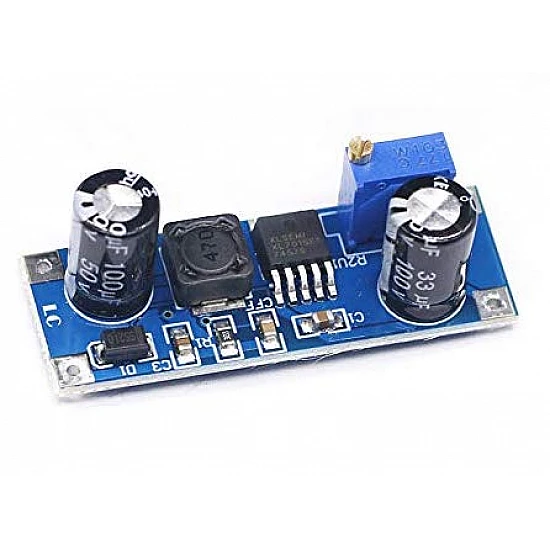

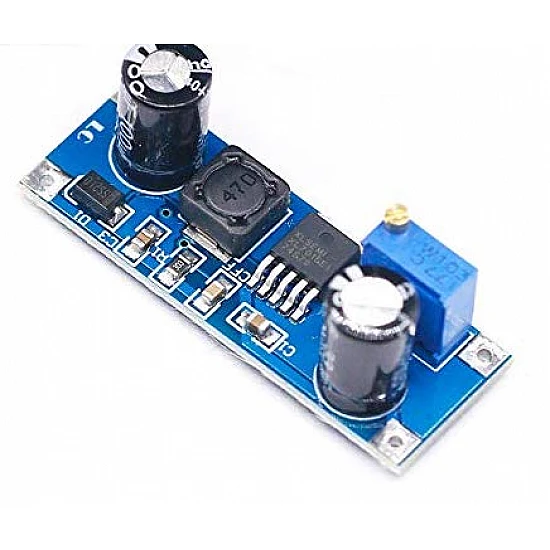

XL7015 DC-DC Step Down Voltage Converter

XL7015 DC-DC buck type module is a highly efficient, high-pressure step-down DC-DC converter, provides the highest 0.8 A output current capability, low ripple, excellent linear regulation and load regulation, up to A maximum of 80 v input voltage, more than 2596 modules, etc. Chip built-in various protection mechanisms. It can be applied to an electric vehicle controller, etc.


  • Shut off built-in overheating protection, output short circuit protection, over current protection
  • Recommend the output power is less than 7 w
  • Good linear with load regulation


  • 5 v to 80 v input voltage range-wide
  • The output voltage from 5 v to 20 v adjustable
  • The minimum pressure drop 1 v
  • 0.8 The biggest switch current
  • The board size: 16 mm * 44 mm
  • Weight: 10 g

Wiring instructions:

The VIN: input voltage (5v - 80v)

The GND: input voltage side

The VOUT: output voltage (5v - 20v)

The GND: output voltage to the end

Package Includes:

1 x XL7015 DC-DC Step-Down Voltage Converter
