US-100 Ultrasonic Sensor Distance Measuring Module with Temperature Compensation

US-100 Ultrasonic Sensor Distance Measuring Module with Temperature Compensation
US-100 Ultrasonic Sensor Distance Measuring Module with Temperature Compensation
US-100 Ultrasonic Sensor Distance Measuring Module with Temperature Compensation
US-100 Ultrasonic Sensor Distance Measuring Module with Temperature Compensation
US-100 Ultrasonic Sensor Distance Measuring Module with Temperature Compensation
US-100 Ultrasonic Sensor Distance Measuring Module with Temperature Compensation
US-100 Ultrasonic Sensor Distance Measuring Module with Temperature Compensation
US-100 Ultrasonic Sensor Distance Measuring Module with Temperature Compensation
US-100 Ultrasonic Sensor Distance Measuring Module with Temperature Compensation
US-100 Ultrasonic Sensor Distance Measuring Module with Temperature Compensation

US-100 Ultrasonic Sensor Distance Measuring Module with Temperature Compensation
₹399

(inc GST)

  • Stock: In Stock
  • With this product you will receive ₹3 FlyRobo Cashback.
  • SKU: FR-01-717

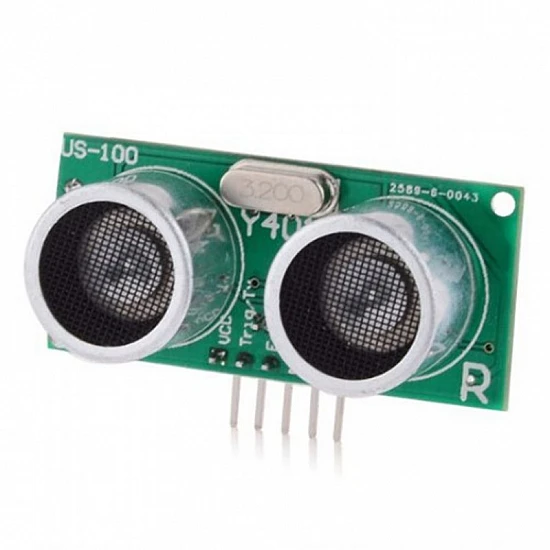

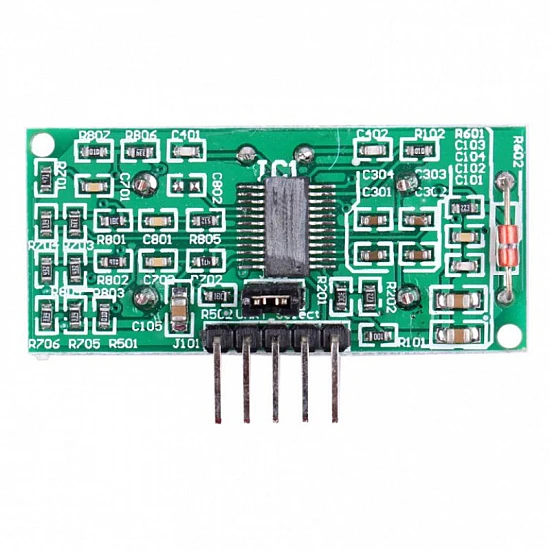

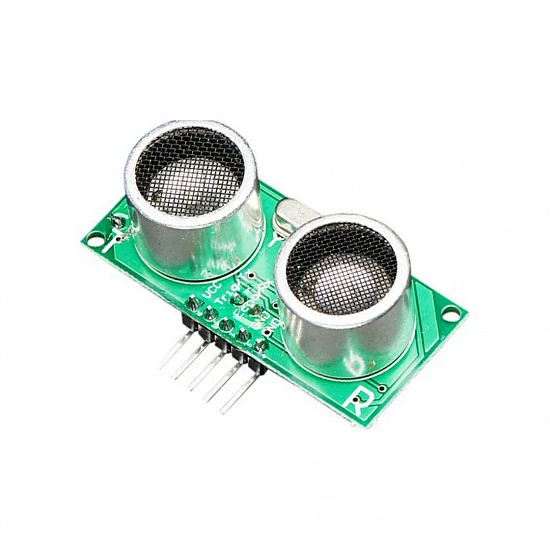

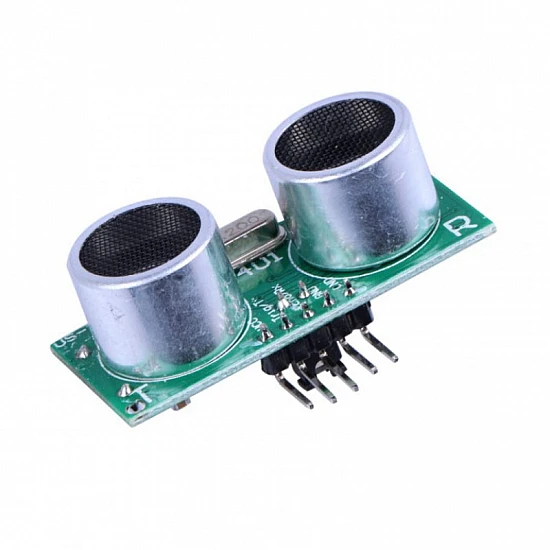

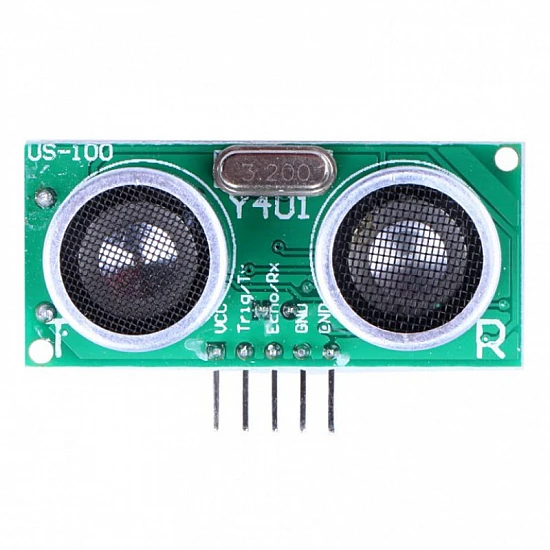

US-100 ultrasonic sensor module is a compact, high-quality module for distance measurement. It can detect objects, obstacles, and walls up to a distance of 2cm to 450cm range. It is ideal for mobile robot applications.

There is a built-in temperature sensor on the US-100 for accurate ranging even at varying ambient temperatures. This sensor can also work in UART mode (band rate 9600) or GPIO mode, which makes it more convenient when making your applications.

Features:

  • It features temperature compensation.
  • It has high precision up to 1 mm
  • It provides two output modes level or UART.
  • It detects distance is from 2 cm to 450 cm
  • TTL Trigger Input, TTL Echo output

Package Includes:

1 x US-100 Ultrasonic Distance Sensor Module.

Technical
Current consumption

2A

Detecting range

2cm to 450cm

Frequency

40000 Hz

Operating Humidity Range

20°C to 70°C

Operating Voltage

2.4V to 5V DC

Sensing Angle

15°

Length

45 mm

Height

15 mm

Width

20 mm
