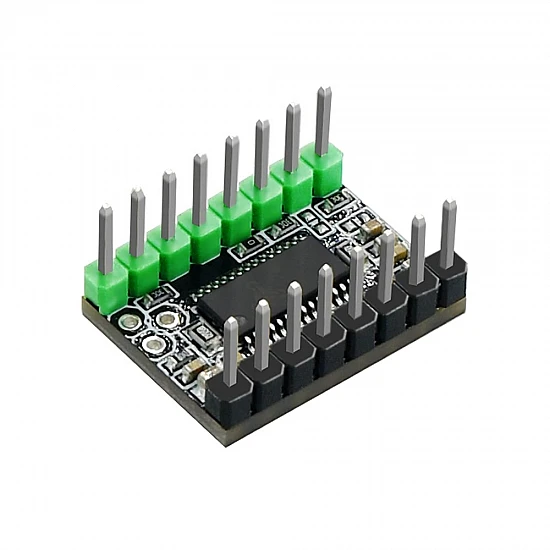

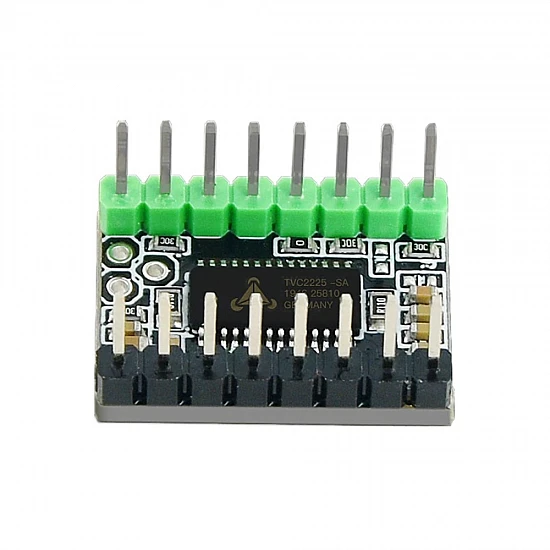

TMC2225 Stepper Motor Driver Module with Heatsink

The TMC2225 Stepper Motor Driver Module is an ultra-quiet, high-performance driver designed to eliminate motor noise and vibration in 3D printers and CNC machines. Powered by Trinamic's advanced StealthChop2 technology, this module ensures whisper-quiet motor operation, making it a highly sought-after upgrade over noisy traditional drivers like the A4988. It supports a continuous current of up to 1.4A RMS and a peak current of 2A, providing smooth and precise motion control for standard NEMA 17 stepper motors.

This driver module features the MicroPlyer interpolation technology, allowing it to achieve up to 1/256 microstepping resolution even with standard step/direction inputs. It is fully compatible with popular 3D printer motherboards (such as MKS, SKR, and RAMPS) and can be configured via hardware pins or single-wire UART for advanced current tuning and diagnostics. The package includes a premium blue anodized aluminum heatsink to ensure optimal heat dissipation and stable performance during long print cycles.

Features:

• Ultra-Silent Operation: Integrated StealthChop2 technology eliminates high-frequency motor noise for silent printing.
• High Dynamic Performance: SpreadCycle chopper mode provides high torque, excellent dynamics, and smooth motion.
• High Microstepping Resolution: Supports up to 1/256 microstepping via MicroPlyer interpolation.
• Wide Voltage Range: Operates on motor supply voltages from 4.75V to 36V DC.
• Robust Current Handling: Delivers up to 1.4A RMS continuously and up to 2A peak current.

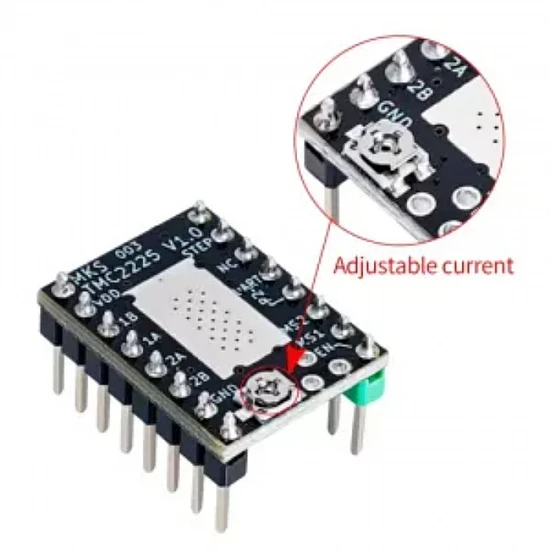

• UART Interface Support: Allows direct software configuration, current adjustment, and diagnostics via UART.

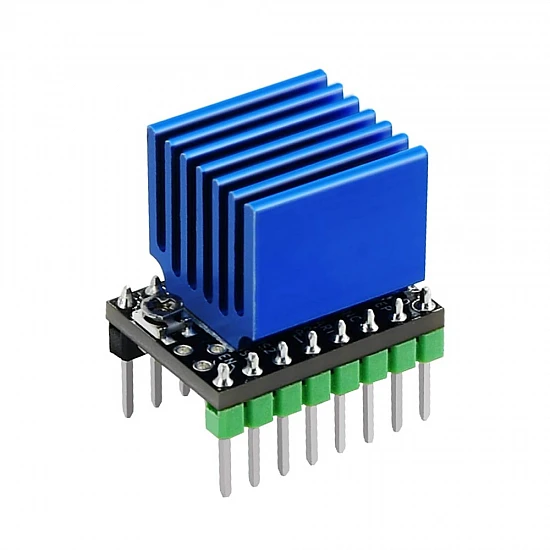

• Excellent Thermal Management: Includes a high-quality blue anodized aluminum heatsink to prevent thermal throttling.

Package Includes:

1 x TMC2225 Stepper Motor Driver Module

1 x Blue Aluminum Heatsink
