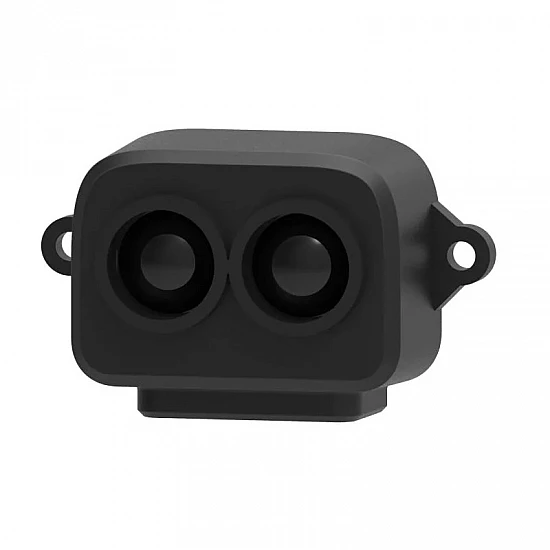

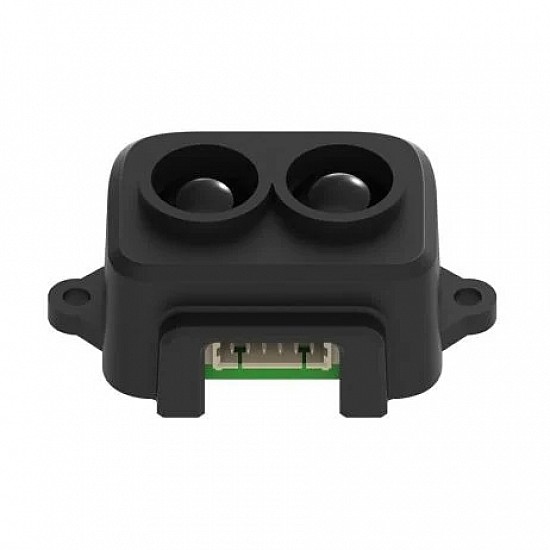

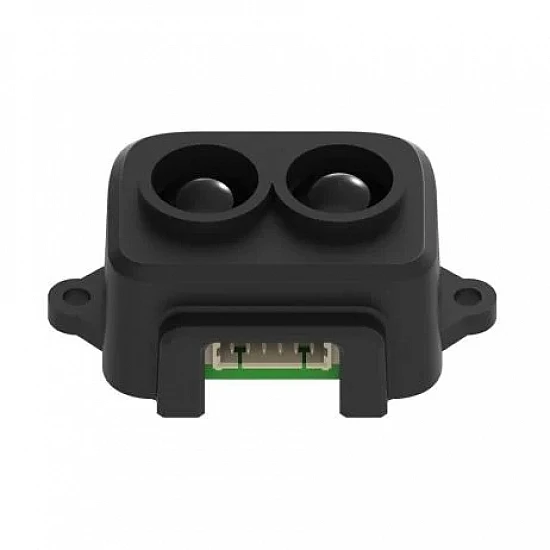

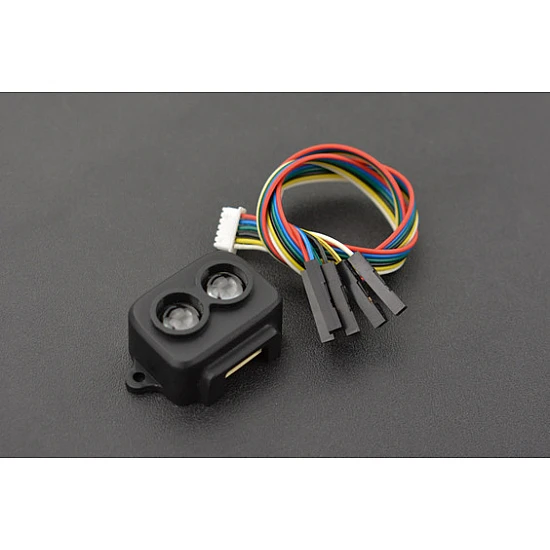

TF-LUNA Micro LiDAR Distance Sensor

TF-LUNA Micro LiDAR Distance Sensor
TF-LUNA Micro LiDAR Distance Sensor
TF-LUNA Micro LiDAR Distance Sensor
-5 % Out Of Stock
TF-LUNA Micro LiDAR Distance Sensor
TF-LUNA Micro LiDAR Distance Sensor
TF-LUNA Micro LiDAR Distance Sensor
TF-LUNA Micro LiDAR Distance Sensor
₹2,373
₹2,499

(inc GST)

  • Stock: Out Of Stock
  • ₹23 FlyRobo Cashback.
  • SKU: FR-01-658
    3 or more ₹2,258
    10 or more ₹2,194

TF-Luna is a small light-weight single-point ranging LiDAR, based on the TOF(Time of Flight) principle. The product is built with algorithms adapted to various application environments and adopts multiple adjustable configurations and parameters so as to offer excellent distance measurement performances in complex application fields and scenarios.

With its unique optical and electrical design, it can achieve stable, accurate, and highly sensitive range measurements. So TF Luna is suitable for identification applications of all kinds. for example, level measurements, lift systems, or applications in intrusion detection.

Features :

  • Wide range of temperature adaptation and voltage input.

  • up to 8 meters range

  • Low power consumption

  • It has high accuracy and frequency.

  • Small size and Lightweight

Applications:

  • Robot Obstacle Avoidance

  • UAV Obstacle Avoidance and UAV Altitude Holding

  • Intrusion Detection

  • Level Measurement

  • Smart City- Homes

  • Industrial

  • Auxiliary focus

  • Elevator projection

Package Includes :

1 x TF-LUNA Micro LiDAR Distance Sensor

Technical
Accuracy

±6cm@(0.2m-3m), ±2%@(3m-8m)

Cable Length

30 cm

Communication Interface

UART / I2C

Current

≤70mA (Average)

Frame rate

1-250Hz (Default 100Hz)

Operating Temperature Range

-10℃ ~ 60 ℃

Peak Current

150mA

Power Consumption

≤0.35W

Range

0.2m~8m(90%reflectivity)

Resolution

1 cm

Supply Voltage

5V

Dimensions (LxWxH)

3.5x2.125X1.35 cm
